Part number
LRD33656
Model no
LRD
$172.67 On request Dispatch — · From TürkiyeGet a Quote

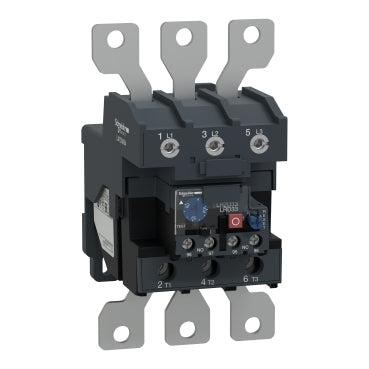

Schneider Electric LRD33656 TeSys Deca Thermal Overload Relay 80-104 A Class 10A 1NO+1NC Relay

TeSys LRD bimetallic thermal overload relay, 80-104 A, class 10A, for LC1D80-D95.

Rated current
104 A
Rated operational voltage
1000 V AC
Display
Trip flag indicator
Description

About the LRD

The Schneider Electric LRD33656 is a TeSys LRD bimetallic thermal overload relay sized for LC1D80 and LC1D95 contactors, with an 80-104 A adjustment range, a class 10A trip curve, and phase-failure protection for 3-phase motors around 45 kW at 400 V.

Certifications & Standards

  • IEC
  • UL
  • CSA
  • CCC
  • EAC
  • UKCA
  • ATEX
  • IEC 60947-4-1
  • IEC 60947-5-1

Selection Notes

The 80-104 A range targets the 45 kW point at 400 V on the LC1D80/D95 frame; set the dial to the motor's nameplate current rather than the contactor's full rating so the class 10A curve protects the winding with margin. Separate-from-contactor mounting on a plate or rail needs the LA7D3064 terminal block, since this relay's 35 mm² power terminals are sized for direct connection to the LC1D80/D95 bottom terminals.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product name TeSys LRD, TeSys Deca
Product or component type Differential thermal overload relay
Device short name LRD
Relay application Motor protection
Product compatibility LC1D95, LC1D80
Network type DC, AC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 80…104 A
[Ui] rated insulation voltage Power circuit: 600 V conforming to CSA, Power circuit: 600 V conforming to UL, Power circuit: 750 V conforming to IEC 60947-4-1

Complementary 16

Network frequency 0...400 Hz
Mounting support Plate, Rail
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A for signalling circuit
Permissible current 0.72 A at 500 V AC-15 for signalling circuit, 0.06 A at 440 V DC-13 for signalling circuit
[Ue] rated operational voltage 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating 4 A gG for signalling circuit, 4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage 6 kV
Phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
Control type Red push-button: stop, Blue push-button: reset
Temperature compensation -20…60 °C
Connections - terminals Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end, Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end, Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals, Power circuit: 9 N.m - on screw clamp terminals
Height 123 mm
Net weight 1 kg

Environment 9

Climatic withstand conforming to IACS E10
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1
Ambient air temperature for storage -60…70 °C
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations: 6 Gn conforming to IEC 60068-2-6, Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Dielectric strength 2.2 kV at 50 Hz conforming to IEC 60947-1
Standards EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495
Product certifications IEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA
Show all 53 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LRD33656
Type designation LRD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.700 cm
Package 1 Width 14.400 cm
Package 1 Length 20.900 cm
Package 1 Weight 1.014 kg
Shipping weight 1.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
