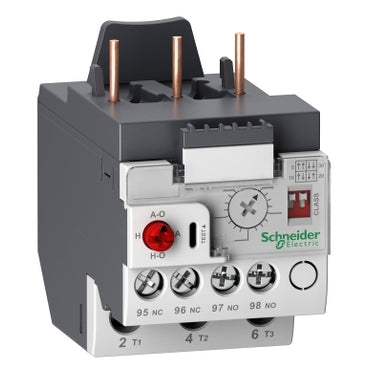

Schneider Electric LR9D01 TeSys LRD Electronic Overload Relay 0.1-0.5 A Class 5-30 LC1D Relay

TeSys LRD electronic thermal overload relay, 0.1-0.5 A, class 5-30, phase-unbalance protection.

Rated current
0.5 A
Display
Trip flag indicator
EAN
3606485420929
Description

About the LR9D

The Schneider Electric LR9D01 is a TeSys LRD electronic thermal overload relay with a 0.1-0.5 A adjustment range and a selectable class 5-10-20-30 trip curve, protecting 3-phase motors up to 0.12 kW at 400 V with phase-failure and load-unbalance detection.

Certifications & Standards

  • IECEE CB Scheme
  • UL
  • CSA
  • CCC
  • IEC 60947-4-1
  • IEC 60947-5-1
  • GB/T 14048.4
  • GB/T 14048.5

Selection Notes

Set the 0.1-0.5 A dial to the motor's actual full-load current for the protection up to 0.12 kW at 400 V, and leave the class dipswitches at class 10 unless the duty cycle calls for a faster (class 5) or slower (class 20/30, high-inertia loads) trip curve. Phase-unbalance and phase-loss detection trip the relay ahead of the thermal element on a single-phasing fault, a protection the equivalent non-differential bimetallic relays in the LRD range do not provide. It mounts directly under the contactor's bottom terminals; the LAD7B205 terminal block is required only for separate-from-contactor mounting.

Specification

Full specification

48 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product name TeSys LRD
Device short name LR9D
Product or Component Type Electronic thermal overload relay
Relay application Motor protection
Product Compatibility LC1D09, LC1D25, LC1D32, LC1D12, LC1D38, LC1D18
Thermal overload class Class 5…30
Thermal protection adjustment range 0.1…0.5 A
Power Consumption in W 300 mW
Mounting support Under contactor, Plate, with specific accessories, Rail, with specific accessories

Complementary 16

[Ue] rated operational voltage 690 V power circuit, 660 V signalling circuit
[Ui] rated insulation voltage Power circuit 1000 V, Signalling circuit 690 V
Tripping threshold 1.25 In IEC 60947-4-1
Control type Red push-button stop and manual reset, White 2 microswitches adjustable trip class, Red knob automatic reset, White dial full-load current adjustment
Time range 1.5...4 min - automatic reset time
[Ith] conventional free air thermal current 5 A signalling circuit
Associated fuse rating 5 A gG for signalling circuit, 5 A BS for signalling circuit
[Uimp] rated impulse withstand voltage 6 kV
Phase failure sensitivity Phase difference > 40% 3 s IEC 60947-4-1
Electromagnetic compatibility Surge withstand 2 kV common mode IEC 61000-4-5, Resistance to electrostatic discharge 8 kV IEC 61000-4-2, Immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3, Immunity to fast transients 2 kV IEC 61000-4-4
Connections - terminals Control circuit screw clamp terminals 1 0.004 in² (2.5 mm²) solid or flexible - without cable end, Power circuit screw clamp terminals 1 0.02 in² (16 mm²) solid or flexible - without cable end
Tightening torque Control circuit 0.8 N.m screw clamp terminals, Power circuit 3.1 N.m screw clamp terminals
Height 2.9 in (72.5 mm)
Width 1.8 in (45 mm)
Depth 3.1 in (79.9 mm)
Net Weight 0.40 lb(US) (0.18 kg)

Environment 8

Standards EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5
Product Certifications IECEE CB Scheme, UL, CSA, CCC
IP degree of protection IP20 front face IEC 60529
Ambient air temperature for operation -13…158 °F (-25…70 °C) IEC 60255-8
Ambient Air Temperature for Storage -67…176 °F (-55…80 °C)
Operating altitude 6561.68 ft (2000 m) without derating
Mechanical robustness Vibrations 10...150 Hz6 Gn IEC 60068-2-6, Shocks 11 ms15 gn IEC 60068-2-7
Dielectric strength 6 kV 50 Hz IEC 60255-5
Show all 48 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LR9D01
Type designation LR9D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485420929

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.18 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
