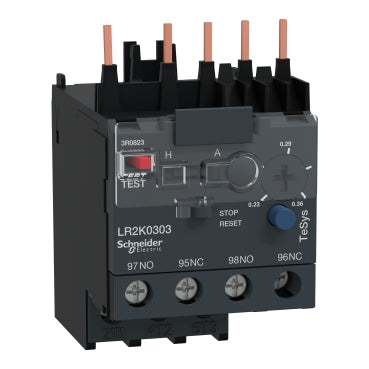

The Schneider Electric LR2K0303 is a TeSys LRK bimetallic thermal overload relay that mounts directly under a TeSys K contactor, with a 0.23-0.36 A adjustment range and a class 10A trip curve protecting 3-phase motors around 0.09 kW at 400 V.
The 0.23-0.36 A dial sets the trip point for motors around 0.09 kW at 400 V; keep the dial at the motor's actual full-load current rather than the contactor's maximum rating, since over-setting defeats the class 10A overload protection. Phase-unbalance detection trips the relay on a single-phasing fault even before the thermal element reaches its class 10A curve, which the plain (non-differential) LRD/LR9D equivalents do not provide. The relay clips directly onto the LC1K contactor's bottom terminals to form a compact starter, so no separate mounting plate is needed unless the LA7K0064 terminal block is fitted for remote placement away from the contactor.
| Range | TeSys |
|---|---|
| Product name | TeSys LRK |
| Product or Component Type | Differential thermal overload relay |
| Device short name | LR2K |
| Relay application | Motor protection |
| Product Compatibility | LC7K, LC1K, LP1K, LP4K |
| Network type | AC, DC |
| Thermal overload class | Class 10A IEC 60947-4-1 |
| Thermal protection adjustment range | 0.23…0.36 A |
| [Ui] rated insulation voltage | Power circuit 690 V BS 4941, Power circuit 690 V IEC 60947, Power circuit 750 V VDE 0110 group C, Power circuit 600 V CSA C22.2 No 14 |
| Network Frequency | <= 400 Hz |
|---|---|
| Mounting support | Under contactor, Plate, with specific accessories, Rail, with specific accessories |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 6 A signalling circuit |
| [Ue] rated operational voltage | <= 690 V power circuit, 690 V AC AC-15 signalling circuit, 250 V DC DC-13 signalling circuit |
| Associated fuse rating | 6 A gG for signalling circuit conforming to VDE 0660, 6 A gG for signalling circuit conforming to IEC 60947 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Power dissipation per pole | 2 W |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Local signalling | Trip indicator Yellow) |
| Control type | Red push-button trip test function, Blue push-button stop and manual reset, selector switch manual or automatic reset |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid, screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid, screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end, screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end, screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end |
| Tightening torque | 11.5 lbf.in (1.3 N.m) screw clamp terminals Philips No 2, 11.5 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm, 11.5 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2 |
| Height | 2.3 in (58 mm) |
| Width | 1.8 in (45 mm) |
| Depth | 2.6 in (65 mm) |
| Net Weight | 0.320 lb(US) (0.145 kg) |
| Standards | NF C 63-650, IEC 60947, VDE 0660, BS 4941 |
|---|---|
| Product Certifications | UL, CSA, UKCA |
| Protective treatment | TC IEC 60068, TC DIN 50016 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -4…131 °F (-20…55 °C) without derating IEC 60947, -22…140 °F (-30…60 °C) with derating IEC 60947 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102 |
| Mechanical robustness | Shocks NO contact10 Gn for 11 ms IEC 60068-2-27, Shocks NC contact10 Gn for 11 ms IEC 60068-2-27, Vibrations NO contact2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations NC contact2 Gn, 5...300 Hz IEC 60068-2-6 |
| Part number | LR2K0303 |
|---|---|
| Type designation | LR2K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110230376 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.145 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
