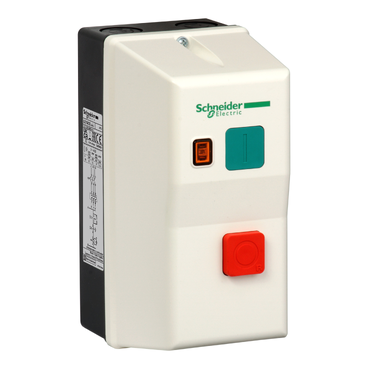

The Schneider Electric LE1M35U722 is a TeSys LE enclosed direct-on-line starter combining an LC1K contactor and an LR2K thermal overload relay in a single IP65 ABS enclosure. It covers the 12-16 A thermal setting range for AC-3 motor loads up to 7.5 kW at 380/400 V, with a 240 V AC 50/60 Hz control coil and a sealed green start / red stop pushbutton pair.
The 12-16 A thermal range sizes this starter for the 7.5 kW point on the AC-3 motor power curve at 400 V; pick the next thermal range up if the nameplate full-load current sits above 16 A rather than relying on the overload margin. The IP65 enclosure lets it sit directly on a machine frame or outdoor panel without a separate control cabinet, and the built-in pushbuttons remove the need for door-mounted start/stop stations.
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| Device short name | LE1M |
| Product or Component Type | Enclosed DOL starter |
| Device Application | Standard |
| Utilisation category | AC-3 |
| Device composition | Contactor, Earth terminal, Neutral terminal, Thermal overload relay |
| Thermal protection adjustment range | 12…16 A |
| Motor power kW | 4 kW 240 V AC 50/60 Hz, 7.5 kW 415 V AC 50/60 Hz, 7.5 kW 380/400 V AC 50/60 Hz, 3.7 kW 220/230 V AC 50/60 Hz |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Control type | Push-button start Green I, Push-button stop/reset Red O |
| Local signalling | Operating LED Yellow) |
|---|---|
| Cable entry number | 2 ISO20 top, 2 ISO25 top, 2 Pg 13 top, 2 Pg 21 top, 2 ISO20 bottom, 2 ISO25 bottom, 2 Pg 13 bottom, 2 Pg 21 bottom, 2 Pg 16 top, 2 Pg 16 bottom |
| Width | 3.07 in (78 mm) |
| Height | 6.3 in (160 mm) |
| Depth | 4.3 in (108 mm) |
| Net Weight | 1.3 lb(US) (0.6 kg) |
| Material | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | 23…104 °F (-5…40 °C) |
| Environmental characteristic | Standard environment |
| Product Certifications | UKCA |
| Part number | LE1M35U722 |
|---|---|
| Type designation | LE1M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110781335 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LE1M is 16 A.
The rated operational voltage of LE1M is 240 V AC.
The rated motor power of LE1M is 7.5 kW.
The tariff (HS) code on file for LE1M is 853620.
The EAN (GTIN) of LE1M is 3389110781335.
LE1M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
