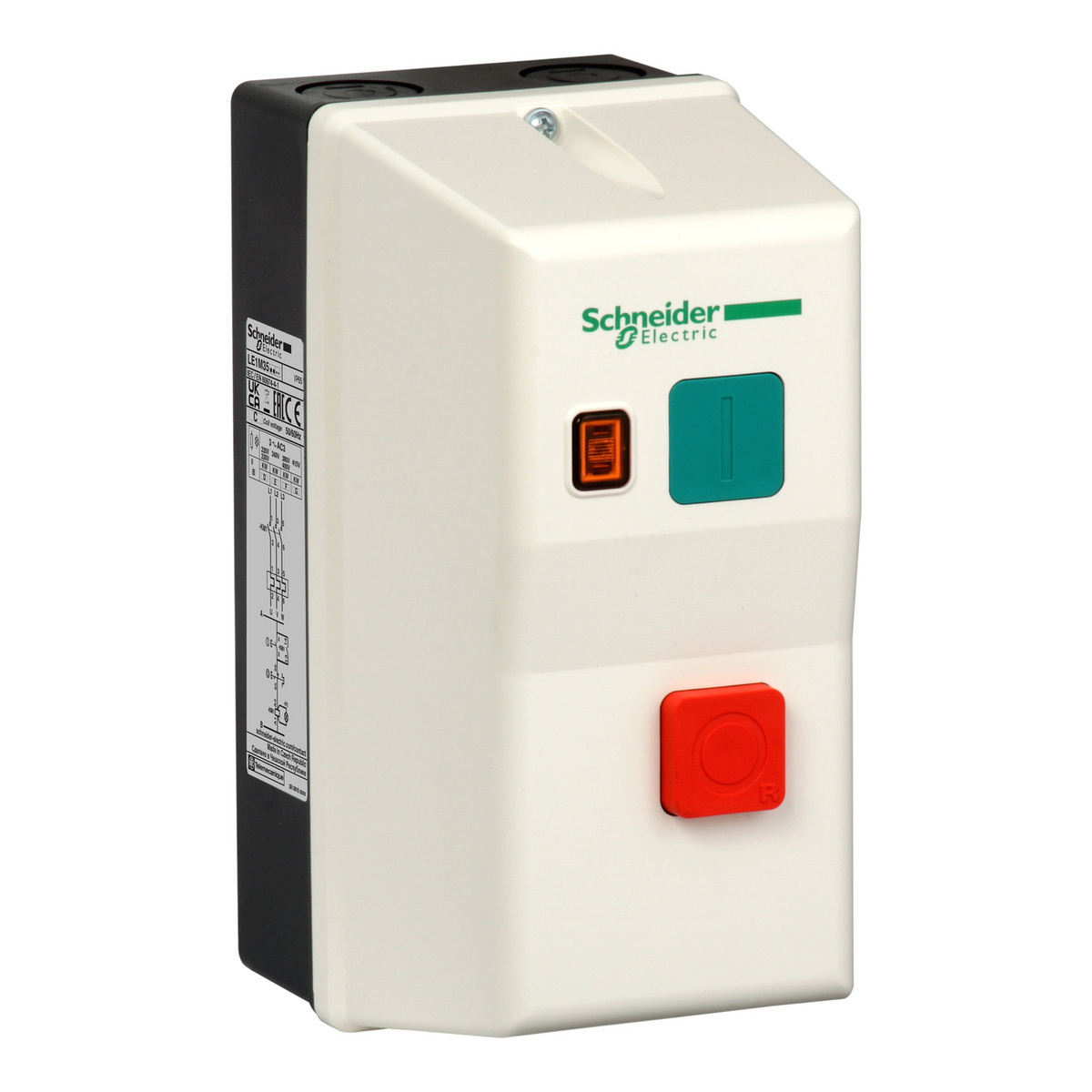

The Schneider Electric LE1M35U721 is a TeSys LE enclosed direct-on-line starter with a built-in LC1K contactor and LR2K thermal overload relay, pre-wired for 5.5 kW motors at 400 V with a thermal setting range of 10-14 A and a 240 V AC control circuit. A yellow operating LED gives local run status, and the starter must be paired with external short-circuit protection to achieve type 1 or type 2 coordination.
The U721 shares the 10-14 A thermal range and 5.5 kW rating with the N721 variant but runs its control circuit at 240 V AC instead of 415 V — pick it when the panel's control transformer is 240 V.
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| Device short name | LE1M |
| Product or Component Type | Enclosed DOL starter |
| Device Application | Standard |
| Utilisation category | AC-3 |
| Device composition | Contactor, Earth terminal, Neutral terminal, Thermal overload relay |
| Thermal protection adjustment range | 10…14 A |
| Motor power kW | 3 kW 240 V AC 50/60 Hz, 5.5 kW 415 V AC 50/60 Hz, 3 kW 220/230 V AC 50/60 Hz, 5.5 kW 380/400 V AC 50/60 Hz |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Control type | Push-button start Green I, Push-button stop/reset Red O |
| Local signalling | Operating LED Yellow) |
|---|---|
| Cable entry number | 2 ISO20 top, 2 ISO25 top, 2 Pg 13 top, 2 Pg 21 top, 2 ISO20 bottom, 2 ISO25 bottom, 2 Pg 13 bottom, 2 Pg 21 bottom, 2 Pg 16 top, 2 Pg 16 bottom |
| Width | 3.07 in (78 mm) |
| Height | 6.3 in (160 mm) |
| Depth | 4.3 in (108 mm) |
| Net Weight | 1.3 lb(US) (0.6 kg) |
| Material | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | 23…104 °F (-5…40 °C) |
| Environmental characteristic | Standard environment |
| Product Certifications | UKCA |
| Part number | LE1M35U721 |
|---|---|
| Type designation | LE1M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110781328 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LE1M is 14 A.
The rated operational voltage of LE1M is 240 V AC.
The rated motor power of LE1M is 5.5 kW.
The tariff (HS) code on file for LE1M is 853710.
The EAN (GTIN) of LE1M is 3389110781328.
LE1M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
