Schneider Electric LE1M35Q721 TeSys LE DOL Starter 3P 10-14 A 5.5 kW 380 V AC Coil IP65 Motor Starter

% $-85.36

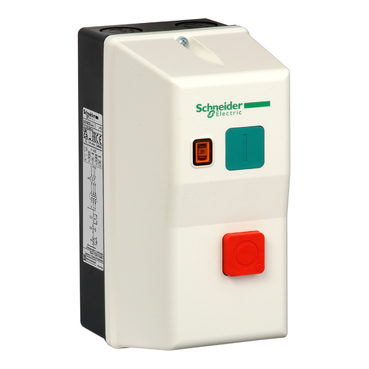

Schneider Electric LE1M35Q721 TeSys LE enclosed DOL starter - 10-14 A 380 V AC
Schneider Electric LE1M35Q721 TeSys LE enclosed DOL starter - 10-14 A 380 V AC

Schneider Electric LE1M35Q721 TeSys LE DOL Starter 3P 10-14 A 5.5 kW 380 V AC Coil IP65 Motor Starter

Brand: Schneider Electric
Reference No: LE1M35Q721
Tariff Code (HS): 853620
Rated Current: 10-14 A
Power: 5.5 kW
Rated Voltage: 380 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$85.36

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LE1M35Q721 is a TeSys LE enclosed direct-on-line starter with a built-in LC1K contactor and LR2K thermal overload relay, pre-wired for 5.5 kW motors at 400 V with a thermal setting range of 10-14 A and a 380 V AC control circuit. A yellow operating LED gives local run status, and the compact 78 x 160 x 108 mm enclosure suits small fractional-kW motors.

Technical Specifications

Reference LE1M35Q721
GTIN 3389110765809
Brand Schneider Electric
Range TeSys LE
Device short name LE1M
Product type Enclosed DOL starter
Device composition Contactor LC1K + thermal overload relay LR2K (built-in, pre-wired)
Utilisation category AC-3
Thermal protection adjustment range 10-14 A
[Uc] control circuit voltage 380 V AC 50/60 Hz
Motor power (380/400 V AC) 5.5 kW
Control type Push-button start (green I) / stop-reset (red O)
Local signalling Operating LED (yellow)
Enclosure material ABS (acrylonitrile butadiene-styrene)
IP degree of protection IP65
Dimensions (W x H x D) 78 x 160 x 108 mm
Net weight 0.6 kg
Ambient air temperature for operation -5...40 °C

Certifications & Standards

  • UKCA
  • IEC 60947-4-1

Selection Notes

This 10-14 A thermal setting covers 5.5 kW motors at 400 V in the LE1M35 line; move to a lower or higher adjustment-range variant as motor power changes, keeping the same 380 V AC control voltage if the panel's control circuit is already wired for it. Because the overload relay is built in and pre-wired, there is no separate LR2K to size or order, unlike the LE1D range that ships with the contactor only.

Technical Details

Short Description
TeSys LE enclosed DOL starter, 3P, 10-14 A AC-3, 5.5 kW at 400 V, 380 V AC coil, IP65
Rated Current (Ampere)
10-14 A
Rated Voltage (VAC)
380 V AC
Mounting Type
Surface mounting, screw fixing
Protection Type
IP65
Power (kW)
5.5 kW
Delivery Date (Days)
30 days
Model Number
TeSys LE (LE1M)
Tariff Code
853620
