Part number
LE1M35N710
Model no
LE1M
$65.60 On request Dispatch — · From TürkiyeGet a Quote

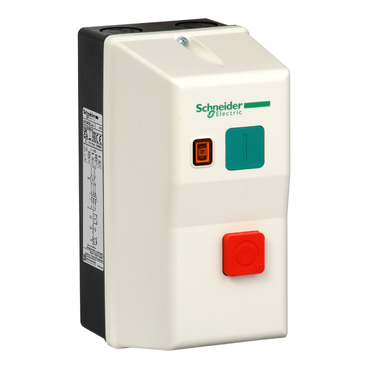

Schneider Electric LE1M35N710 TeSys LE DOL Starter 3P 2.6-3.7 A 1.5 kW 415 V AC Coil IP65 Motor Starter

TeSys LE enclosed DOL starter, 3P, 2.6-3.7 A AC-3, 1.5 kW at 400 V, 415 V AC coil, IP65

Rated current
3.7 A
Rated operational voltage
415 V AC
Motor power
1.5 kW
EAN
3389110766837
Description

About the LE1M

The Schneider Electric LE1M35N710 is a TeSys LE enclosed direct-on-line starter with a built-in LC1K contactor and LR2K thermal overload relay, pre-wired for 1.5 kW motors at 400 V with a thermal setting range of 2.6-3.7 A and a 415 V AC control circuit. A yellow operating LED gives local run status, and the compact 78 x 160 x 108 mm enclosure suits small fractional-kW motors.

Certifications & Standards

  • UKCA
  • IEC 60947-4-1

Selection Notes

This 2.6-3.7 A thermal setting covers 1.5 kW motors at 400 V in the LE1M35 line; move to a lower or higher adjustment-range variant as motor power changes, keeping the same 415 V AC control voltage if the panel's control circuit is already wired for it. Because the overload relay is built in and pre-wired, there is no separate LR2K to size or order, unlike the LE1D range that ships with the contactor only.

Specification

Full specification

37 values · Last verified 30 Oct 2026

Main 11

Range TeSys
Product name TeSys LE
Device short name LE1M
Product or Component Type Enclosed DOL starter
Device Application Standard
Utilisation category AC-3
Device composition Contactor, Earth terminal, Neutral terminal, Thermal overload relay
Thermal protection adjustment range 2.6…3.7 A
Motor power kW 0.55 kW 240 V AC 50/60 Hz, 1.5 kW 415 V AC 50/60 Hz, 0.55 kW 220/230 V AC 50/60 Hz, 1.5 kW 380/400 V AC 50/60 Hz
[Uc] control circuit voltage 415 V AC 50/60 Hz
Control type Push-button start Green I, Push-button stop/reset Red O

Complementary 6

Local signalling Operating LED Yellow)
Cable entry number 2 ISO20 top, 2 ISO25 top, 2 Pg 13 top, 2 Pg 21 top, 2 ISO20 bottom, 2 ISO25 bottom, 2 Pg 13 bottom, 2 Pg 21 bottom, 2 Pg 16 top, 2 Pg 16 bottom
Width 3.07 in (78 mm)
Height 6.3 in (160 mm)
Depth 4.3 in (108 mm)
Net Weight 1.3 lb(US) (0.6 kg)

Environment 6

Material ABS (acrylonitrile butadiene-styrene)
IP degree of protection IP65 IEC 60529
Standards IEC 60947-4-1
Ambient air temperature for operation 23…104 °F (-5…40 °C)
Environmental characteristic Standard environment
Product Certifications UKCA
Show all 37 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LE1M35N710
Type designation LE1M
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110766837

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LE1M35N710

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UKCA
  • IEC 60947-4-1
Quick answers

Questions about the LE1M

What is the rated current of LE1M?

The rated current of LE1M is 3.7 A.

Which supply voltage is LE1M rated for?

The rated operational voltage of LE1M is 415 V AC.

What motor power is LE1M rated for?

The rated motor power of LE1M is 1.5 kW.

What is the HS code of LE1M for customs?

The tariff (HS) code on file for LE1M is 853620.

What is the EAN of LE1M?

The EAN (GTIN) of LE1M is 3389110766837.

Where does LE1M ship from, and how fast?

LE1M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
