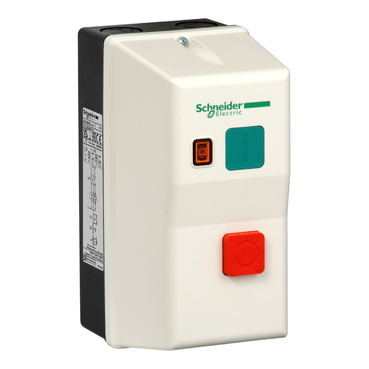

The Schneider Electric LE1M35M714 is a TeSys LE enclosed direct-on-line starter with a built-in LC1K contactor and LR2K thermal overload relay, pre-wired for 3 kW motors at 400 V with a thermal setting range of 5.5-8 A and a 220 V AC control circuit. A yellow operating LED gives local run status, and the compact 78 x 160 x 108 mm enclosure suits small fractional-kW motors.
This 5.5-8 A thermal setting covers 3 kW motors at 400 V in the LE1M35 line; move to a lower or higher adjustment-range variant as motor power changes, keeping the same 220 V AC control voltage if the panel's control circuit is already wired for it. Because the overload relay is built in and pre-wired, there is no separate LR2K to size or order, unlike the LE1D range that ships with the contactor only.
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| Device short name | LE1M |
| Product or Component Type | Enclosed DOL starter |
| Device Application | Standard |
| Utilisation category | AC-3 |
| Device composition | Contactor, Earth terminal, Neutral terminal, Thermal overload relay |
| Thermal protection adjustment range | 5.5…8 A |
| Motor power kW | 3 kW 415 V AC 50/60 Hz, 1.1 kW 240 V AC 50/60 Hz, 3 kW 380/400 V AC 50/60 Hz, 1.5 kW 220/230 V AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Control type | Push-button start Green I, Push-button stop/reset Red O |
| Local signalling | Operating LED Yellow) |
|---|---|
| Cable entry number | 2 ISO20 top, 2 ISO25 top, 2 Pg 13 top, 2 Pg 21 top, 2 ISO20 bottom, 2 ISO25 bottom, 2 Pg 13 bottom, 2 Pg 21 bottom, 2 Pg 16 top, 2 Pg 16 bottom |
| Width | 3.07 in (78 mm) |
| Height | 6.3 in (160 mm) |
| Depth | 4.3 in (108 mm) |
| Net Weight | 1.3 lb(US) (0.6 kg) |
| Material | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | 23…104 °F (-5…40 °C) |
| Environmental characteristic | Standard environment |
| Product Certifications | UKCA |
| Part number | LE1M35M714 |
|---|---|
| Type designation | LE1M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110765663 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LE1M is 8 A.
The rated operational voltage of LE1M is 220 V AC.
The rated motor power of LE1M is 3 kW.
The tariff (HS) code on file for LE1M is 853620.
The EAN (GTIN) of LE1M is 3389110765663.
LE1M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
