Part number
LE1D25Q7
Model no
LE1D
$112.91 On request Dispatch — · From TürkiyeGet a Quote

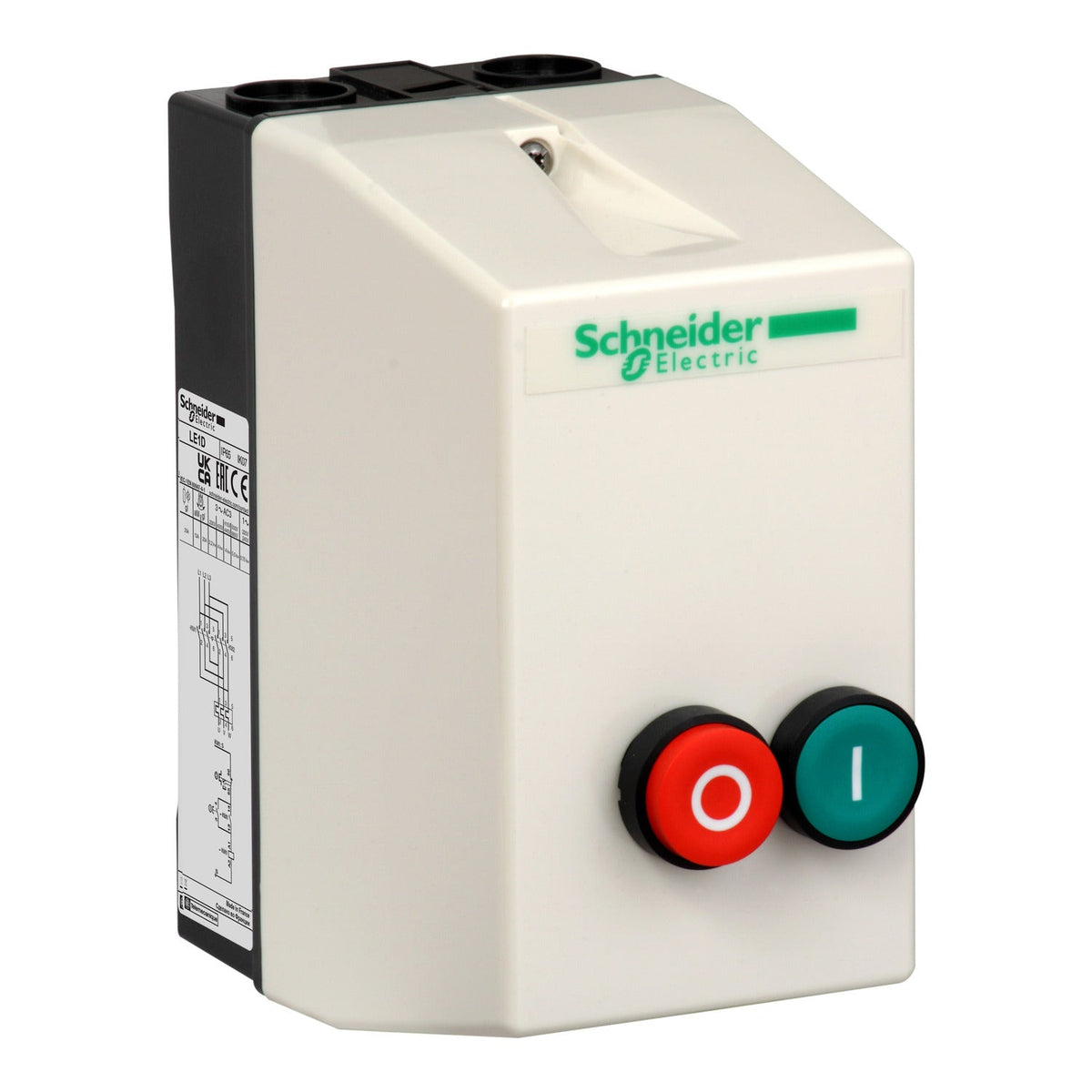

Schneider Electric LE1D25Q7 TeSys LE Enclosed DOL Starter 3P 22 A 11 kW 380 V AC Coil IP65 Motor Starter

TeSys LE enclosed DOL starter, 3P, 22 A AC-3, 11 kW at 400 V, 380 V AC coil, IP65

Rated current
22 A
Rated operational voltage
380 V AC
Motor power
11 kW
Description

About the LE1D

The Schneider Electric LE1D25Q7 is a TeSys LE enclosed direct-on-line starter built around an LC1D contactor, rated 22 A AC-3 for 3-phase motors up to 11 kW at 400 V, with a 380 V AC control circuit. A pre-wired LC1D contactor with green start and red stop/reset pushbuttons handles one-direction motor control, with screw fixing and top/bottom cable knock-outs for surface mounting.

Certifications & Standards

  • CB Scheme
  • CE
  • UKCA
  • IEC 60947-4-1

Selection Notes

The Q7 coil code is the 380 V AC variant — choose it where the control circuit is fed at 380 V instead of 220 V; it must still be fitted with an LRD thermal overload relay sized to the motor, ordered separately.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product name TeSys LE
Product or component type Enclosed DOL starter
Device short name LE1D
Device application Standard
Utilisation category AC-3
Device composition Thermal overload relay ordered separately, Contactor
Control type Push-button start green I, Push-button stop/reset red O
Motor power kW 11 kW at 380/400 V AC 50/60 Hz, 11 kW at 415 V AC 50/60 Hz, 11 kW at 440 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 Hz, 15 kW at 660/690 V AC 50/60 Hz, 5.5 kW at 220/230 V AC 50/60 Hz
[Uc] control circuit voltage 380 V AC 50/60 Hz

Complementary 6

[Ithe] conventional enclosed thermal current 22 A
Cable entry number 2 ISO20 top, 2 ISO25 top, 2 ISO20 bottom, 2 ISO25 bottom
Width 101 mm
Height 201 mm
Depth 153.5 mm
Net weight 1.015 kg

Environment 7

Standards IEC 60947-4-1
Product certifications CB Scheme, CE, UKCA
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 60529
Ambient air temperature for operation -5…40 °C
Material Polycarbonate
Environmental characteristic Standard environment
Show all 47 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LE1D25Q7
Type designation LE1D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 18.500 cm
Package 1 Length 26.000 cm
Package 1 Weight 1.242 kg
Unit Type of Package 2 P06
Number of Units in Package 2 22
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 40.258 kg
Shipping weight 1.015 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LE1D25Q7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CB Scheme
  • IEC 60947-4-1
Quick answers

Questions about the LE1D

What is the rated current of LE1D?

The rated current of LE1D is 22 A.

Which supply voltage is LE1D rated for?

The rated operational voltage of LE1D is 380 V AC.

What motor power is LE1D rated for?

The rated motor power of LE1D is 11 kW.

What is the HS code of LE1D for customs?

The tariff (HS) code on file for LE1D is 853710.

Where does LE1D ship from, and how fast?

LE1D ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
