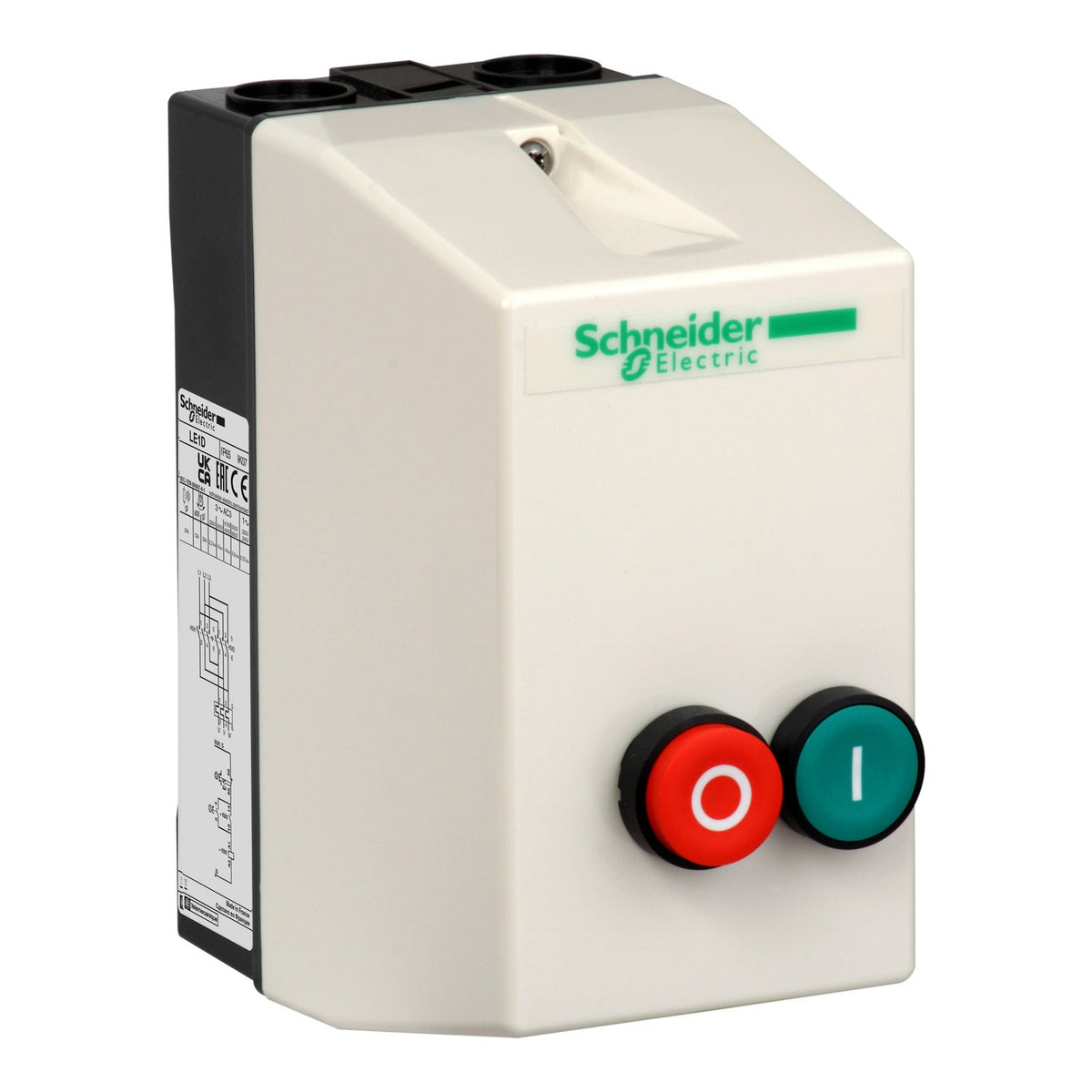

Schneider Electric LE1D18Q7 TeSys Deca Enclosed DOL Starter 3P 17 A 7.5 kW 380 V AC Coil IP65 Motor Starter

The Schneider Electric LE1D18Q7 is a TeSys Deca enclosed DOL starter rated 17 A AC-3, protecting motors up to 7.5 kW at 400 V with a pre-wired LC1D contactor inside an IP65 polycarbonate enclosure. It runs on a 380 V AC control circuit, switches on and off via built-in green start and red stop pushbuttons, and ships without a thermal overload relay, which must be ordered separately.

Technical Specifications

Certifications & Standards

• CB Scheme
• CE
• UKCA
• IEC 60947-4-1

Selection Notes

The 17 A AC-3 rating covers motors up to 7.5 kW at 400 V; step up to the next LE1D frame size in the same enclosure style rather than running this one above its rated current. The starter ships with the LC1D contactor pre-wired but deliberately omits a thermal overload relay — add one sized to the motor's full-load current before commissioning, since the enclosure gives no overload protection without it. The IP65/IK07 polycarbonate housing with ISO cable glands suits wall or machine mounting in washdown or dusty areas without a separate enclosure.
