Part number
LE1D12Q7
Model no
LE1D
$101.61 On request Dispatch — · From TürkiyeGet a Quote

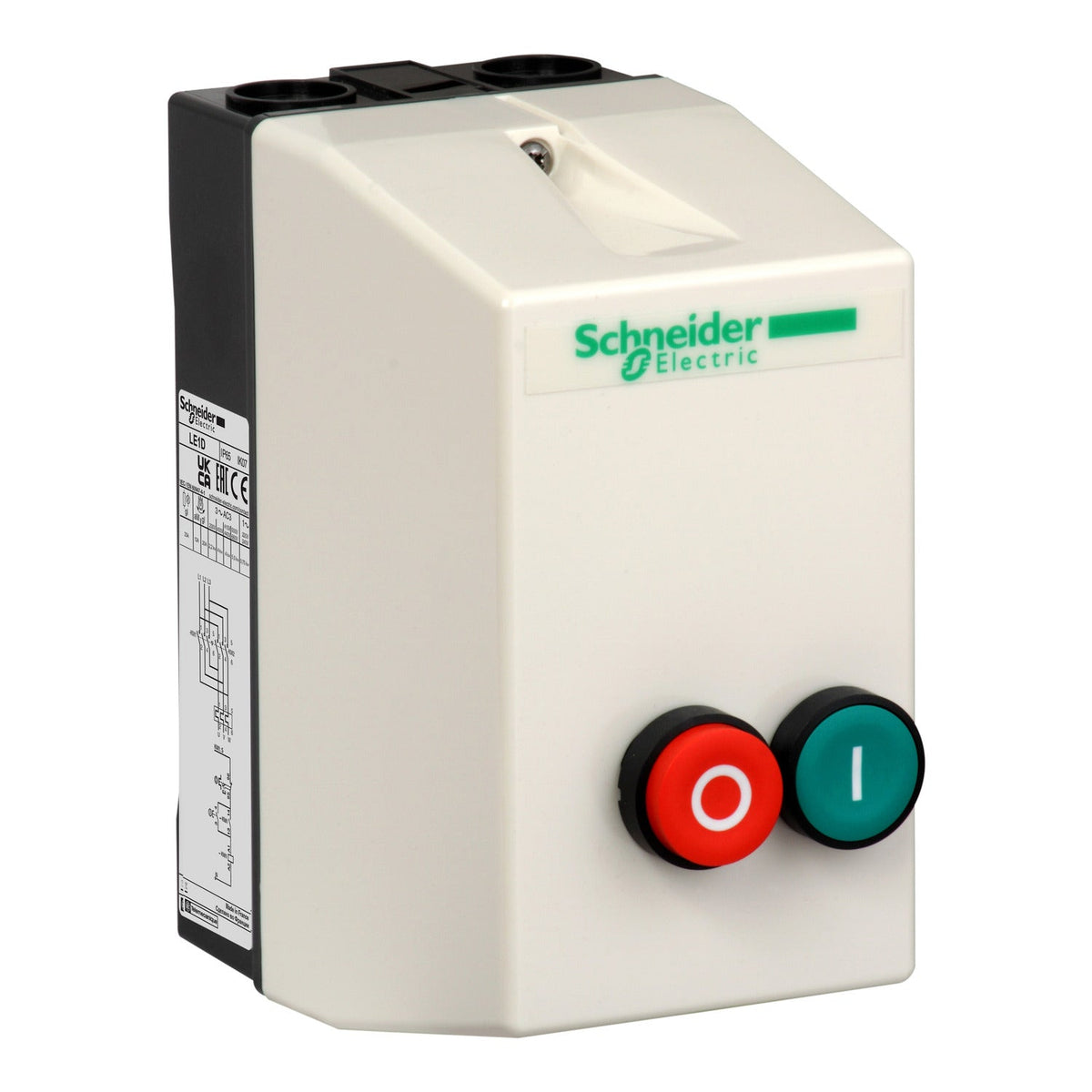

Schneider Electric LE1D12Q7 TeSys Deca Enclosed DOL Starter 3P 12 A 5.5 kW 380 V AC Coil IP65 Motor Starter

Schneider Electric TeSys Deca enclosed DOL starter, 12 A AC-3, protects motors to 5.5 kW at 400 V, 380 V AC coil, IP65.

Rated current
12 A
Rated operational voltage
380 V AC
Motor power
5.5 kW
Description

About the LE1D

The Schneider Electric LE1D12Q7 is a TeSys Deca enclosed DOL starter rated 12 A AC-3, protecting motors up to 5.5 kW at 400 V with a pre-wired LC1D contactor inside an IP65 polycarbonate enclosure. It runs on a 380 V AC control circuit, switches on and off via built-in green start and red stop pushbuttons, and ships without a thermal overload relay, which must be ordered separately.

Certifications & Standards

  • CB Scheme
  • CE
  • UKCA
  • IEC 60947-4-1

Selection Notes

The 12 A AC-3 rating covers motors up to 5.5 kW at 400 V; step up to the next LE1D frame size in the same enclosure style rather than running this one above its rated current. The starter ships with the LC1D contactor pre-wired but deliberately omits a thermal overload relay — add one sized to the motor's full-load current before commissioning, since the enclosure gives no overload protection without it. The IP65/IK07 polycarbonate housing with ISO cable glands suits wall or machine mounting in washdown or dusty areas without a separate enclosure.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product name TeSys LE
Product or component type Enclosed DOL starter
Device short name LE1D
Device application Standard
Utilisation category AC-3
Device composition Thermal overload relay ordered separately, Contactor
Control type Push-button start green I, Push-button stop/reset red O
Motor power kW 3 kW at 220/230 V AC 50/60 Hz, 7.5 kW at 500 V AC 50/60 Hz, 7.5 kW at 660/690 V AC 50/60 Hz, 5.5 kW at 380/400 V AC 50/60 Hz, 5.5 kW at 415 V AC 50/60 Hz, 5.5 kW at 440 V AC 50/60 Hz
[Uc] control circuit voltage 380 V AC 50/60 Hz

Complementary 6

[Ithe] conventional enclosed thermal current 12 A
Cable entry number 2 ISO20 top, 2 ISO20 bottom
Width 88 mm
Height 166 mm
Depth 128.5 mm
Net weight 0.92 kg

Environment 7

Standards IEC 60947-4-1
Product certifications CB Scheme, CE, UKCA
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 60529
Ambient air temperature for operation -5…40 °C
Material Polycarbonate
Environmental characteristic Standard environment
Show all 47 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LE1D12Q7
Type designation LE1D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 15.000 cm
Package 1 Length 20.500 cm
Package 1 Weight 863.000 g
Unit Type of Package 2 P06
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 39.430 kg
Shipping weight 0.92 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LE1D12Q7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CB Scheme
  • IEC 60947-4-1
Quick answers

Questions about the LE1D

What is the rated current of LE1D?

The rated current of LE1D is 12 A.

Which supply voltage is LE1D rated for?

The rated operational voltage of LE1D is 380 V AC.

What motor power is LE1D rated for?

The rated motor power of LE1D is 5.5 kW.

What is the HS code of LE1D for customs?

The tariff (HS) code on file for LE1D is 853710.

Where does LE1D ship from, and how fast?

LE1D ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
