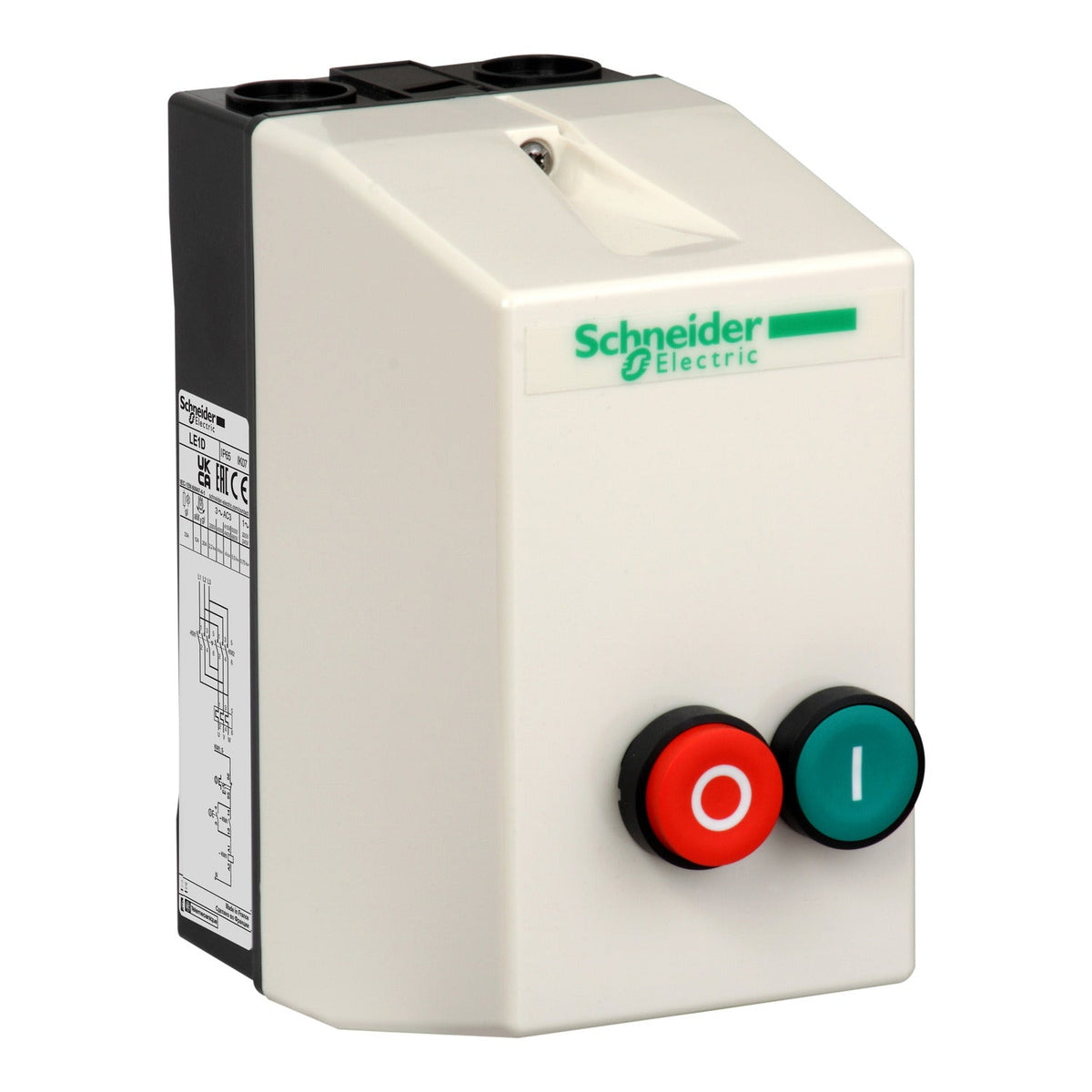

The Schneider Electric LE1D09Q7 is a TeSys Deca enclosed DOL starter rated 9 A AC-3, protecting motors up to 4 kW at 400 V with a pre-wired LC1D contactor inside an IP65 polycarbonate enclosure. It runs on a 380 V AC control circuit, switches on and off via built-in green start and red stop pushbuttons, and ships without a thermal overload relay, which must be ordered separately.
The 9 A AC-3 rating covers motors up to 4 kW at 400 V; step up to the next LE1D frame size in the same enclosure style rather than running this one above its rated current. The starter ships with the LC1D contactor pre-wired but deliberately omits a thermal overload relay — add one sized to the motor's full-load current before commissioning, since the enclosure gives no overload protection without it. The IP65/IK07 polycarbonate housing with ISO cable glands suits wall or machine mounting in washdown or dusty areas without a separate enclosure.
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| Product or Component Type | Enclosed DOL starter |
| Device short name | LE1D |
| Device Application | Standard |
| Utilisation category | AC-3 |
| Device composition | Thermal overload relay ordered separately, Contactor |
| Control type | Push-button start Green I, Push-button stop/reset Red O |
| Motor power kW | 4 kW 380/400 V AC 50/60 Hz, 4 kW 415 V AC 50/60 Hz, 4 kW 440 V AC 50/60 Hz, 2.2 kW 220/230 V AC 50/60 Hz, 5.5 kW 500 V AC 50/60 Hz, 5.5 kW 660/690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 9 A |
|---|---|
| Cable entry number | 2 ISO20 top, 2 ISO20 bottom |
| Width | 3.5 in (88 mm) |
| Height | 6.5 in (166 mm) |
| Depth | 5.06 in (128.5 mm) |
| Net Weight | 2.03 lb(US) (0.92 kg) |
| Standards | IEC 60947-4-1 |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA |
| IP degree of protection | IP65 IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Ambient air temperature for operation | 23…104 °F (-5…40 °C) |
| Material | Polycarbonate |
| Environmental characteristic | Standard environment |
| Part number | LE1D09Q7 |
|---|---|
| Type designation | LE1D |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110572537 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.92 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
