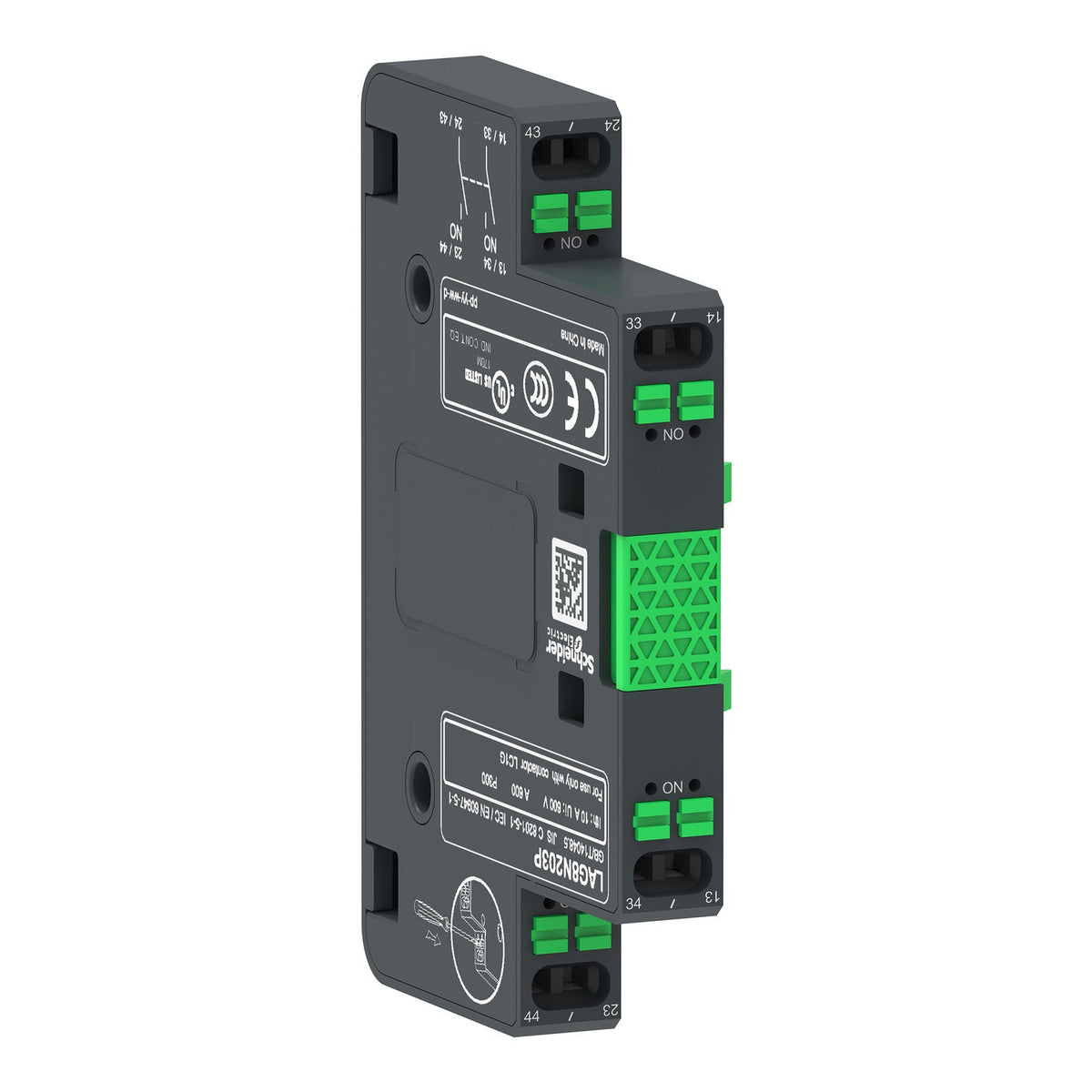

The Schneider Electric LAG8N203P is a side-mounted auxiliary contact block for TeSys Giga LC1G contactors, providing 2 normally-open instantaneous contacts rated up to 10 A at 600 V AC. It mounts on the L1/R1 lateral face with push-in spring terminals and is rated down to 17 V / 1 mA for low-energy PLC control applications. It provides IP20 protection and operates from -25°C to 60°C without derating up to 3000 m altitude.
Specify the LAG8N203P on the L1/R1 lateral mounting face where push-in spring terminals speed up wiring for two extra NO contacts on a TeSys Giga contactor. For the same contact composition with standard screw clamp terminals instead, use the LAG8N203 variant.
| Range compatibility | TeSys G LC1G |
|---|---|
| Range of Product | TeSys G |
| Range | TeSys |
| Device short name | LAG8N |
| Product or Component Type | Auxiliary contact block |
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 2 NO |
| Connections - terminals | screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)solid stranded without cable end, screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)flexible with cable end |
| Mounting Location | Side |
|---|---|
| [Ui] rated insulation voltage | 600 V IEC 60947-5-1, 600 V CSA, 600 V UL |
| [Ue] rated operational voltage | 600 V AC 25...400 Hz |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| Permissible short-time rating | 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 8 Mcycles |
| Minimum switching current | 1 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Height | 2.2 in (55.8 mm) |
| Width | 0.6 in (15.4 mm) |
| Depth | 3.3 in (84.8 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme, CCC, cULus, CE, UKCA |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Part number | LAG8N203P |
|---|---|
| Type designation | LAG8N |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 03606481047915 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
