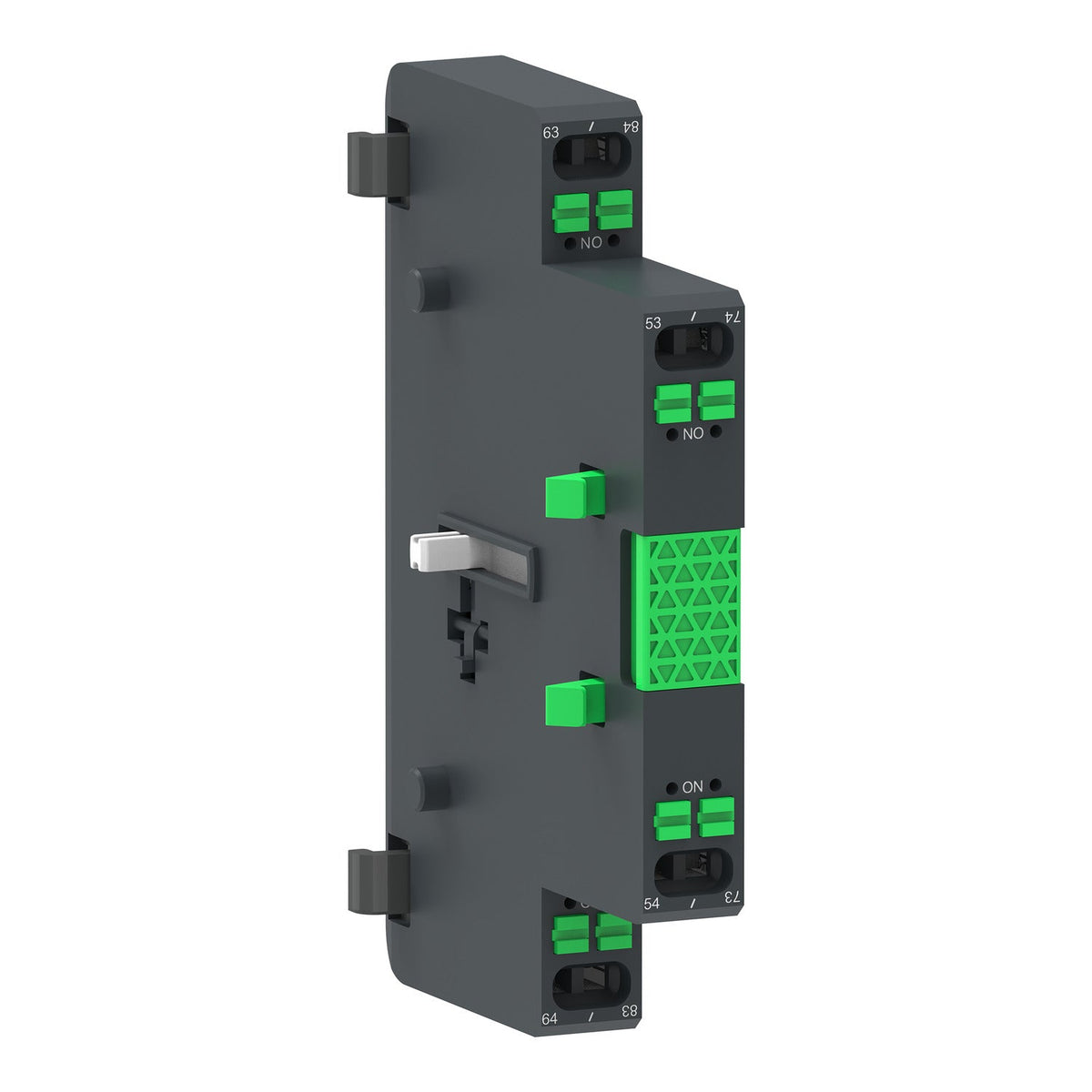

Schneider Electric LAG8N203 TeSys Giga Auxiliary Contact Block 2NO Side Mount Push-In Auxiliary Contact Block

Name: Schneider Electric LAG8N203 TeSys Giga Auxiliary Contact Block 2NO Side Mount Push-In Auxiliary Contact Block
Brand: Schneider Electric
SKU: LAG8N203
Price: 18.05 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LAG8N203

Catalog No: LAG8N203

Series: TeSys G

Tariff Code (HS): 853650

Rated Current: 10 A

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$18.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LAG8N203 is a side-mounted auxiliary contact block for TeSys Giga LC1G contactors, providing 2 normally-open instantaneous contacts rated up to 10 A at 600 V AC. It mounts on the lateral face with push-in spring terminals and is rated down to 17 V / 1 mA for low-energy PLC control applications. It provides IP20 protection and operates from -25°C to 60°C without derating up to 3000 m altitude.

Technical Specifications

Reference	LAG8N203
Brand	Schneider Electric
Range	TeSys
Range of Product	TeSys G
Device Short Name	LAG8N
Product or Component Type	Auxiliary contact block
Range Compatibility	TeSys G LC1G
Mounting Location	Side
Pole Contact Composition	2 NO
[Ue] Rated Operational Voltage	600 V AC 25-400 Hz
[Ith] Conventional Free Air Thermal Current	10 A (at 60°C)
[Ui] Rated Insulation Voltage	600 V (IEC 60947-5-1)
IP Degree of Protection	IP20
Ambient Air Temperature (Operation)	-25°C to 60°C
Net Weight	0.05 kg
Units per Package	64

Certifications & Standards

CB Scheme
CCC
cULus
CE
UKCA
EN/IEC 60947-5-1

Selection Notes

Specify the LAG8N203 where a TeSys Giga contactor needs two extra NO signalling points on the lateral face with push-in spring terminals. For 1NO+1NC contact composition instead, use the LAG8N113 or LAG8N113P block.

Technical Details

Short Description

2NO auxiliary contact block, side mount, 10 A Ith, 600 V AC, for TeSys Giga LC1G contactors.

Rated Current (Ampere)

10 A

Mounting Type

Side (push-in)

Protection Type

IP20

Catalog No

LAG8N203

Delivery Date (Days)

30 days

Model Number

LAG8N

Tariff Code

853650
