Part number
LAG8N113P
Model no
LAG8N
$18.47 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Giga

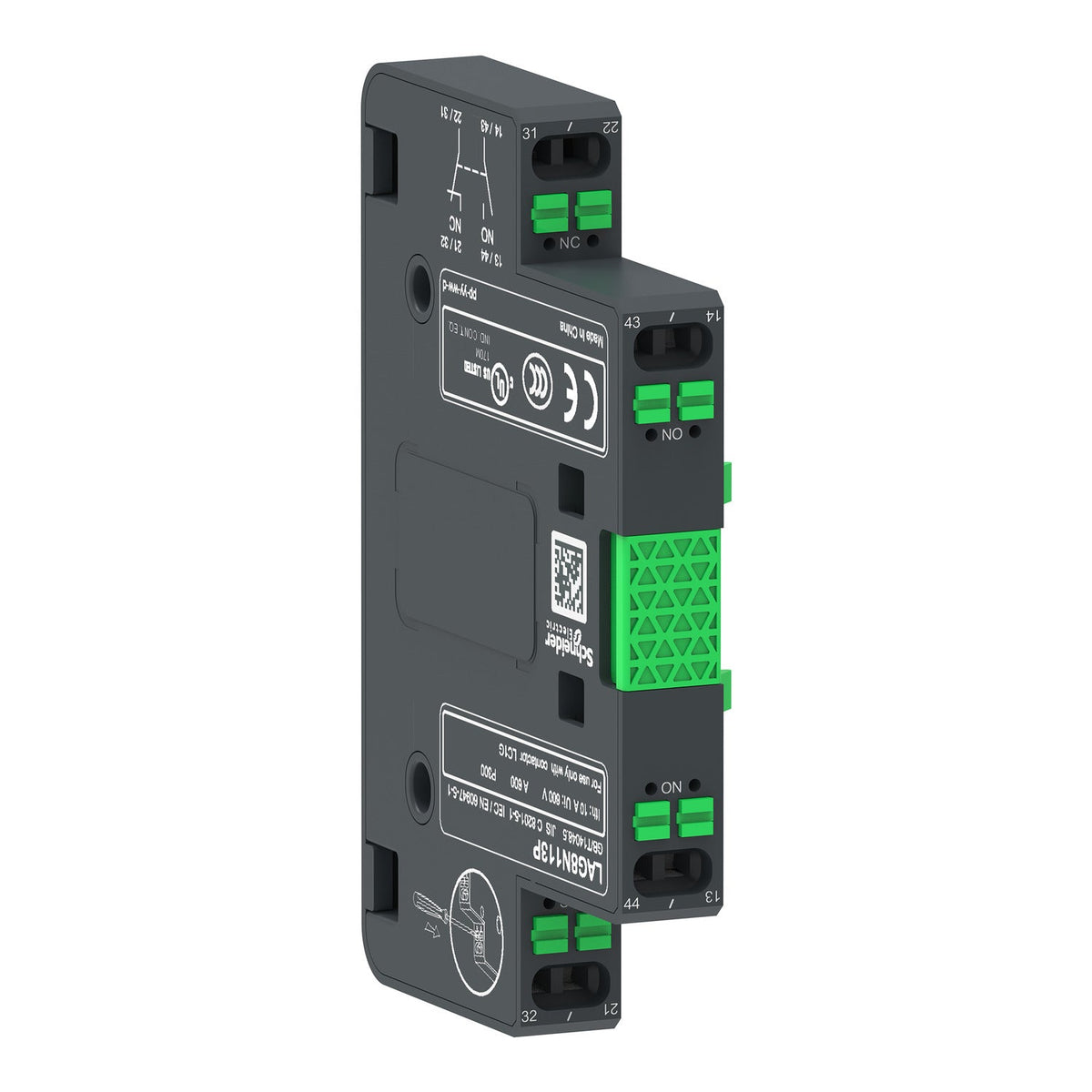

Schneider Electric LAG8N113P TeSys Giga 1NO+1NC Side Mount Push-In L1/R1 Auxiliary Contact Block

1NO+1NC auxiliary contact block, side mount push-in L1/R1 terminals, 10 A Ith, 600 V AC, for TeSys Giga LC1G contactors.

Rated current
10 A
EAN
03606481047892
Description

About the LAG8N

The Schneider Electric LAG8N113P is a side-mounted auxiliary contact block for TeSys Giga LC1G contactors, providing 1 normally-open and 1 normally-closed instantaneous contact rated up to 10 A at 600 V AC. It mounts on the L1/R1 lateral face with push-in spring terminals and is rated down to 17 V / 1 mA for low-energy PLC control applications. It provides IP20 protection and operates from -25°C to 60°C without derating up to 3000 m altitude.

Certifications & Standards

  • CB Scheme
  • CCC
  • cULus
  • CE
  • UKCA
  • EN/IEC 60947-5-1

Selection Notes

Specify the LAG8N113P on the L1/R1 lateral mounting face where push-in spring terminals speed up wiring on a TeSys Giga contactor. For the same 1NO+1NC contact composition with standard screw clamp terminals instead, use the LAG8N113 variant.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 8

Range compatibility TeSys G LC1G
Range of Product TeSys G
Range TeSys
Device short name LAG8N
Product or Component Type Auxiliary contact block
Auxiliary contacts operation Instantaneous
Pole contact composition 1 NO + 1 NC
Connections - terminals screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)solid stranded without cable end, screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)flexible with cable end

Complementary 16

Mounting Location Side
[Ui] rated insulation voltage 600 V IEC 60947-5-1, 600 V CSA, 600 V UL
[Ue] rated operational voltage 600 V AC 25...400 Hz
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C))
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms
Protection type GG fuse 10 A
Mechanical durability 8 Mcycles
Minimum switching current 1 mA
Minimum switching voltage 17 V
Non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance > 10 MOhm
Height 2.2 in (55.8 mm)
Width 0.6 in (15.4 mm)
Depth 3.3 in (84.8 mm)
Net Weight 0.11 lb(US) (0.05 kg)

Environment 7

Standards EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ
Product Certifications CB Scheme, CCC, cULus, CE, UKCA
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH
Ambient Air Temperature for Operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Operating altitude 9842.52 ft (3000 m)
Show all 45 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LAG8N113P
Type designation LAG8N
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 03606481047892

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LAG8N113P

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • CB Scheme
  • EN/IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • GB 14048.5
  • IEC 60335-1:Clause 30.2
  • IEC 60335-2-40:Annex JJ
  • UL 60335-1
  • UL 60335-2-40:Annex JJ
Quick answers

Questions about the LAG8N

What is the rated current of LAG8N?

The rated current of LAG8N is 10 A.

What is the HS code of LAG8N for customs?

The tariff (HS) code on file for LAG8N is 853650.

What is the EAN of LAG8N?

The EAN (GTIN) of LAG8N is 03606481047892.

Where does LAG8N ship from, and how fast?

LAG8N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
