Schneider Electric LAETSD Easy TeSys Time Delay 1NO+1NC On-Delay 690 V AC Auxiliary Contact Block

% $-32.89

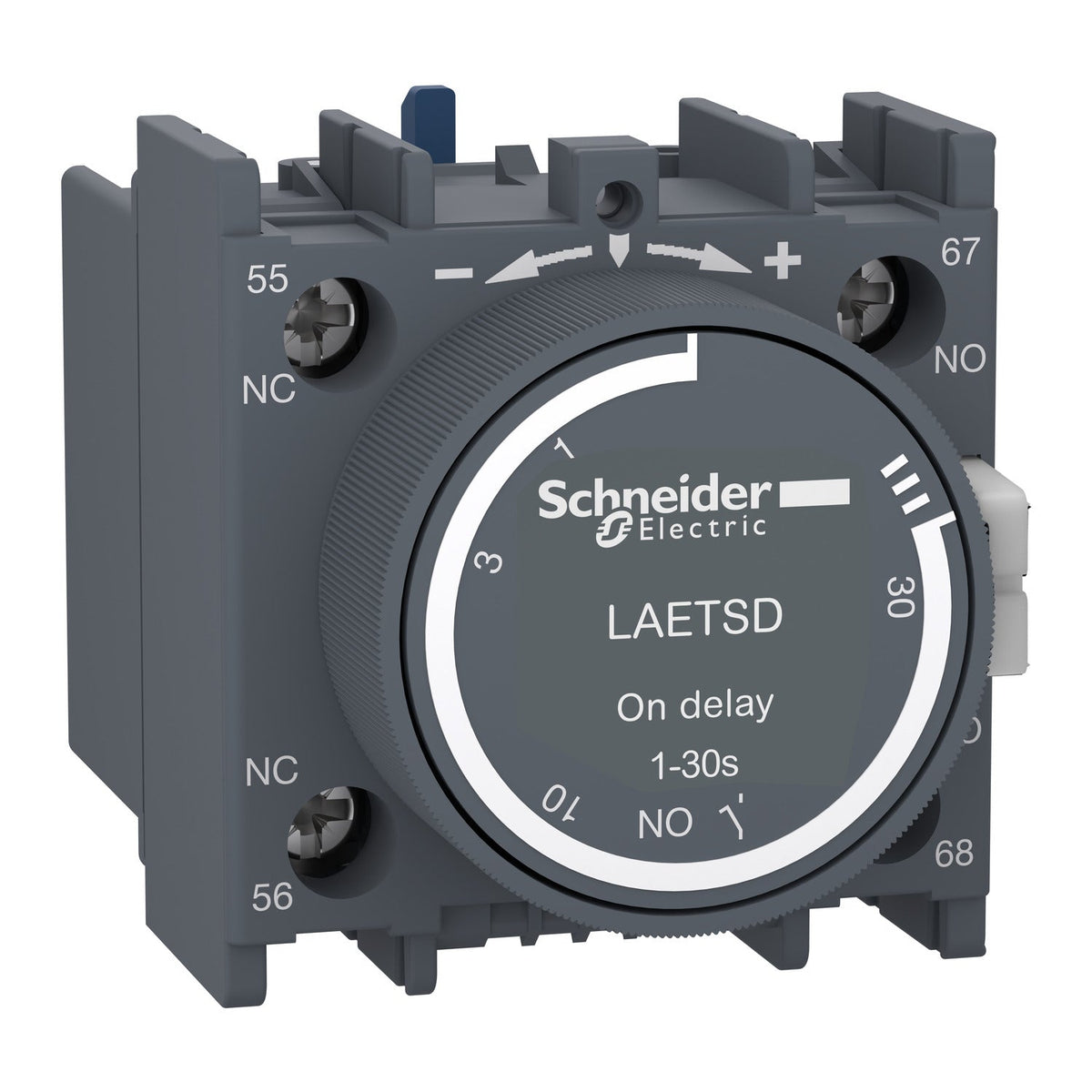

Schneider Electric LAETSD Easy TeSys time delay auxiliary block 1NO+1NC for LC1E contactor
Schneider Electric LAETSD Easy TeSys time delay auxiliary block 1NO+1NC for LC1E contactor

Schneider Electric LAETSD Easy TeSys Time Delay 1NO+1NC On-Delay 690 V AC Auxiliary Contact Block

Brand: Schneider Electric
Reference No: LAETSD
Catalog No: LAETSD
Series: Easy TeSys Control
Tariff Code (HS): 853650
Rated Current: 8 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$32.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAETSD is an on-delay time delay auxiliary contact block for EasyPact TVS LC1E contactors, providing 1 normally-open and 1 normally-closed contact rated up to 8 A at 690 V AC, adjustable over a 1 to 30 second delay range. It connects via screw clamp terminals and clips onto the front of the contactor.

Technical Specifications

Reference LAETSD
Brand Schneider Electric
Range Easy TeSys
Range of Product Easy TeSys Control
Device Short Name LAET
Product or Component Type Time delay auxiliary
Auxiliary Contacts Operation On-delay contact
Pole Contact Composition 1 NO + 1 NC
Range Compatibility EasyPact TVS LC1E
Time Delay Range 1-30 s
[Ue] Rated Operational Voltage <= 690 V AC
[Ith] Conventional Free Air Thermal Current 8 A (at 60°C)
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -5°C to 55°C
Net Weight 0.06 kg
Units per Package 140

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-5-1

Selection Notes

Fit the LAETSD where a control circuit needs an on-delay signal after an EasyPact TVS LC1E contactor closes - for example, staggering the start of a second load. The 1-30 s range is field-adjustable, so one block covers short and longer delay needs without a different part.

Technical Details

Short Description
On-delay time delay auxiliary block, 1NO+1NC, 1-30 s, 690 V AC, 8 A Ith, for EasyPact TVS LC1E contactors.
Rated Current (Ampere)
8 A
Mounting Type
Front clip-on
Protection Type
IP20
Catalog No
LAETSD
Delivery Date (Days)
30 days
Model Number
LAET
Tariff Code
853650
