Part number
LAERCU
Model no
LAERC
$16.64 On request Dispatch — · From TürkiyeGet a Quote
Schneider Easy TeSys

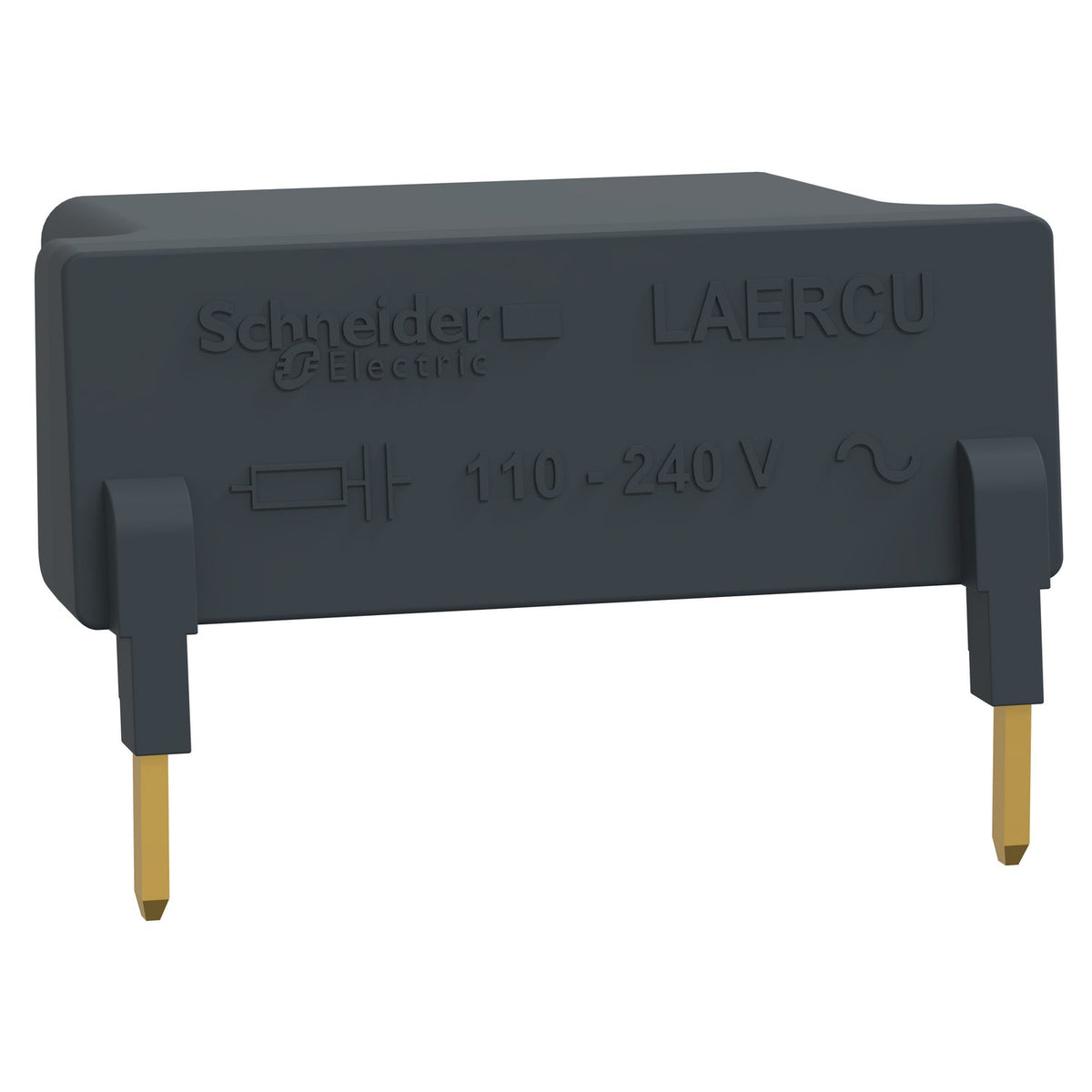

Schneider Electric LAERCU Easy TeSys RC Suppressor Module 110-240 V AC for LC1E06-E95 Contactor Accessory

RC suppressor module, 110-240 V AC, for coil protection on EasyPact TVS LC1E06-E95 contactors, IP20.

Rated operational voltage
110–240 V AC
Poles
3P
Description

About the LAERC

The Schneider Electric LAERCU is an RC suppressor module for coil protection on EasyPact TVS LC1E06 to LC1E95 contactors, for 110-240 V AC control circuits. It limits the coil's transient switching voltage to 3 times Uc and clips onto the front of the contactor, connecting directly to the coil screw terminals, with IP20 protection.

Certifications & Standards

  • GOST
  • IEC 60947-5-1

Selection Notes

Fit the LAERCU on any LC1E06-E95 EasyPact TVS contactor operating on a 110-240 V AC control circuit to clamp the coil's switching transient and protect nearby electronics from the voltage spike at de-energisation.

Specification

Full specification

48 values · Last verified 30 Oct 2026

Main 5

Range Easy TeSys
Range of product Easy TeSys Control
Product compatibility LC1E06...E95
Device short name LAERC
Product or component type Suppressor module

Complementary 8

Mounting location Front
Mounting mode Clip-on
Suppressor technology RC circuit
[Uc] control circuit voltage 110...240 V AC 50/60 Hz
Maximum peak voltage 3 Uc <= 400 Hz
Width 44 mm
Depth 33 mm
Net weight 0.025 kg

Environment 5

Standards IEC 60947-5-1
Product certifications GOST
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -60…80 °C
Show all 48 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LAERCU
Type designation LAERC
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 4.200 cm
Package 1 Length 2.700 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 S01
Number of Units in Package 2 78
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.884 kg
Unit Type of Package 3 P06
Number of Units in Package 3 2496
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 70.612 kg
Shipping weight 0.025 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LAERCU

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-5-1
Quick answers

Questions about the LAERC

Which supply voltage is LAERC rated for?

The rated operational voltage of LAERC is 110–240 V AC.

What is the HS code of LAERC for customs?

The tariff (HS) code on file for LAERC is 853690.

Where does LAERC ship from, and how fast?

LAERC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
