Part number
LAEN02
Model no
LAEN
$5.57 On request Dispatch — · From TürkiyeGet a Quote
Schneider Easy TeSys

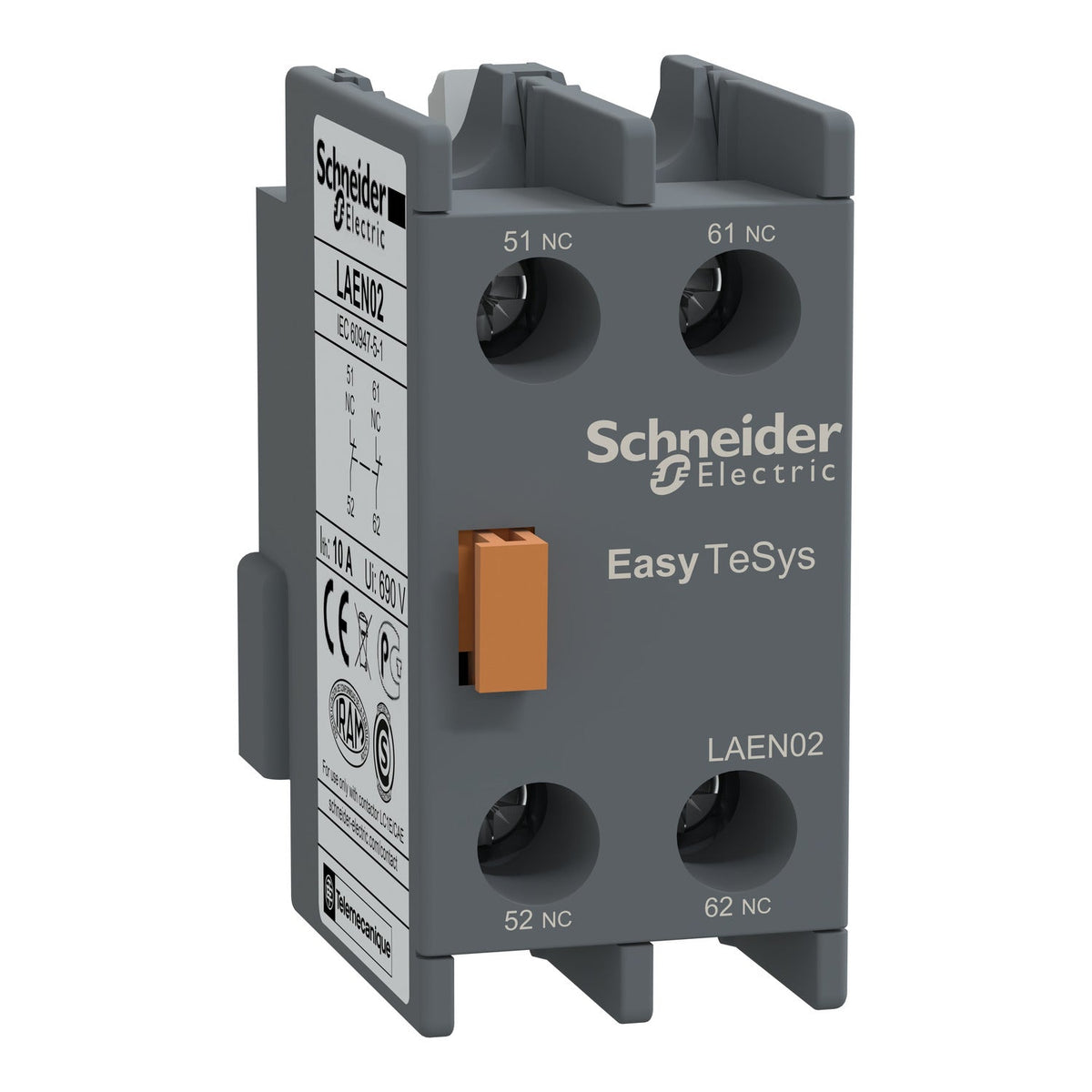

Schneider Electric LAEN02 Easy TeSys Auxiliary Contact Block 2NC 690 V AC Screw Clamp Auxiliary Contact Block

2NC mirror-contact auxiliary block, 690 V AC, 8 A Ith, screw clamp terminals, for EasyPact TVS LC1E contactors.

Rated current
8 A
Description

About the LAEN

The Schneider Electric LAEN02 is an add-on auxiliary contact block for EasyPact TVS LC1E contactors, providing 2 instantaneous normally-closed contacts rated up to 8 A at 690 V AC, connected by screw clamp terminals. The NC contacts are mirror-certified so the block can be used in safety-related circuits. It clips onto the front of the contactor and is Green (RoHS/REACh) compliant.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-5-1

Selection Notes

Specify the LAEN02 where the control circuit needs two mirror-certified NC contacts for safety signalling on an EasyPact TVS LC1E contactor. For mixed NO/NC signalling, use the LAEN11 (1NO+1NC) block from the same range.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 7

Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Auxiliary contact block
Device application Signalling
Device short name LAEN
Mounting location Front
Auxiliary contacts operation Instantaneous

Complementary 16

Range compatibility EasyPact EasyPact TVS LC1E
Pole contact composition 2 NC
[Ui] rated insulation voltage 690 V - for control circuit conforming to IEC 60947-5-1
[Ue] rated operational voltage <= 690 V
[Ith] conventional free air thermal current 8 A (at 60 °C)
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Protection type GG fuse 10 A
Mechanical durability 10 Mcycles
Minimum switching current 5 mA
minimum switching voltage 17 V
Non-overlap time 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Insulation resistance > 10 MOhm
Connections - terminals Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end
Net weight 0.035 kg
Colour Grey (RAL 7011)

Environment 8

Standards EN/IEC 60947-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.5, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ
Product certifications CB Scheme, CCC, CE, EAC
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Operating altitude 3000 m without derating
Environmental characteristic Standard environment
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LAEN02
Type designation LAEN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 4.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 34.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 100
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.768 kg
Unit Type of Package 3 P06
Number of Units in Package 3 1600
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 68.800 kg
Shipping weight 0.035 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LAEN02

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • CB Scheme
  • EN/IEC 60947-1
  • EN/IEC 60947-5-1
  • GB/T 14048.1
  • GB/T 14048.5
  • EN/IEC 60335-1:Clause 30.2
  • EN/IEC 60335-2-40:Annex JJ
Quick answers

Questions about the LAEN

What is the rated current of LAEN?

The rated current of LAEN is 8 A.

What is the HS code of LAEN for customs?

The tariff (HS) code on file for LAEN is 853650.

Where does LAEN ship from, and how fast?

LAEN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
