Part number
LADN40R
Model no
LADN_R
$16.13 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

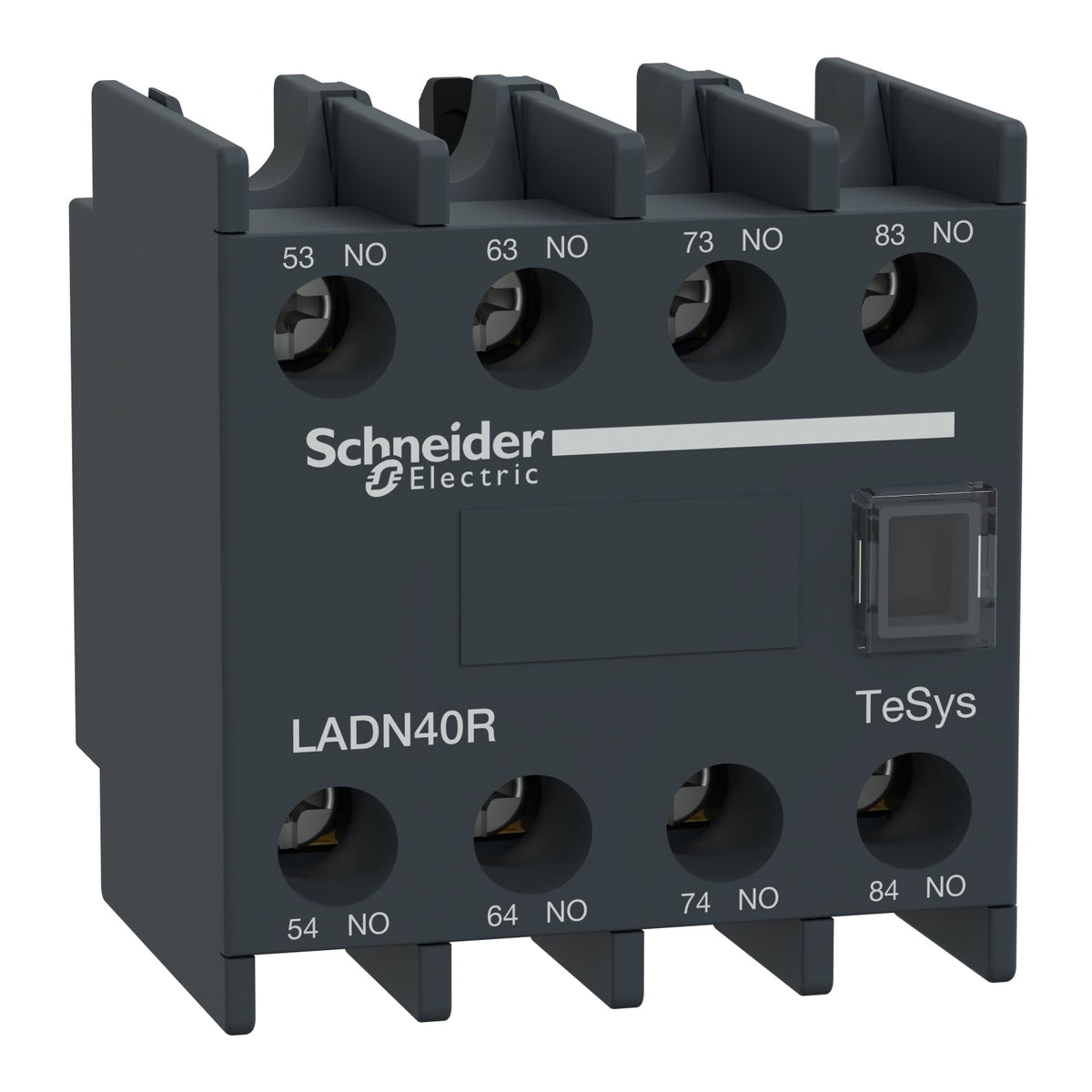

Schneider Electric LADN40R TeSys Deca Auxiliary Contact Block 4NO 690 V AC Screw Clamp Auxiliary Contact Block

4NO auxiliary contact block, 690 V AC, 10 A Ith, screw clamp terminals, for TeSys Deca LC1D/LC1F/CAD.

Rated current
10 A
Description

About the LADN_R

The Schneider Electric LADN40R is an instantaneous auxiliary contact block for TeSys Deca contactors LC1D, LC1F and control relays CAD, adding 4 normally-open contacts rated up to 10 A at 690 V AC. It clips onto the front of the device and connects via screw clamp terminals. The block is dust-resistant for harsh environments and Green (RoHS/REACh) compliant.

Certifications & Standards

  • CB Scheme
  • UL
  • CSA
  • CCC
  • UKCA
  • EN/IEC 60947-5-1

Selection Notes

Specify the LADN40R where the control circuit needs four extra normally-open signalling contacts on one block - for example, multiple remote run-status feedback points. Where mixed NO/NC contacts are needed instead, use the LADN22R (2NO+2NC) block from the same range.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 12

Range TeSys, TeSys Deca
Product name TeSys Deca
Product or component type Auxiliary contact block
Device short name LADN_R
Range compatibility TeSys D CAD, TeSys D LC1D, TeSys Deca CAD, TeSys Deca LC1D, TeSys F LC1F, TeSys F CR1F
Mounting location Front
Pole contact composition 4 NO
[Ue] rated operational voltage 690 V AC 25...400 Hz
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA
[Ith] conventional free air thermal current 10 A (at 60 °C)
Standards EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ
Product certifications CB, UL, CSA, CCC, UKCA

Complementary 16

Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
Protection type GG fuse 10 A
Mechanical durability 30 Mcycles
Electrical reliability 1e-008 at 17 V and 1 mA
Minimum switching current 1 mA
Minimum switching voltage 17 V
Non-overlap time 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
Insulation resistance > 10 MOhm
Connections - terminals Screw-clamp terminals 1 cable(s) 1…4 mm²flexible with cable end, Screw-clamp terminals 1 cable(s) 1…4 mm²flexible without cable end, Screw-clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end, Screw-clamp terminals 2 cable(s) 1…4 mm²flexible without cable end, Screw-clamp terminals 1 cable(s) 1…4 mm²rigid without cable end, Screw-clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2
Height 48 mm
Width 44 mm
Depth 42 mm
Net weight 0.06 kg
Colour Dark grey

Environment 6

Environmental characteristic Normal environment, Harsh environment, 3S4
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -25…60 °C, -40…-25 °C with derating, 60…70 °C with derating
Operating altitude 3000 m
Show all 58 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LADN40R
Type designation LADN_R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.200 cm
Package 1 Width 4.300 cm
Package 1 Length 5.400 cm
Package 1 Weight 64.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 105
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.097 kg
Shipping weight 0.06 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LADN40R

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • UKCA
  • CCC
  • EN/IEC 60947-5-1
  • GB/T 14048.5
  • EN 50012
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • IEC 60335-1:Clause 30.2
  • IEC 60335-2-40:Annex JJ
  • UL 60335-2-40:Annex JJ
Quick answers

Questions about the LADN_R

What is the rated current of LADN_R?

The rated current of LADN_R is 10 A.

What is the HS code of LADN_R for customs?

The tariff (HS) code on file for LADN_R is 853650.

Where does LADN_R ship from, and how fast?

LADN_R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
