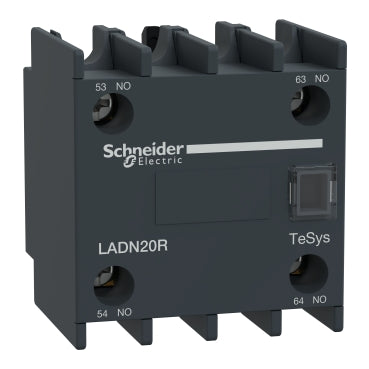

The Schneider Electric LADN20R is a TeSys Deca instantaneous auxiliary contact block for LC1D, LC1F contactors and CAD control relays, providing 2NO contacts rated up to 10 A at 690 V AC. It connects by screw clamp terminals and clips onto the front of the base device, with a dust-resistant 3S4 environmental rating for harsh installations.
Choose the LADN20R when a control circuit only needs additional normally-open contacts, for example to parallel a run-indication signal with the main contactor coil, in a dust-resistant 3S4 housing for panels exposed to particulate contamination. Its 30 million-cycle mechanical durability matches high-cycling applications; where a normally-closed contact is also required, the 1NO+1NC variant in the same dust-resistant series covers that mix instead.
| Range | TeSys, TeSys Deca |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Auxiliary contact block |
| Device short name | LADN_R |
| Range compatibility | TeSys D CAD, TeSys D LC1D, TeSys Deca CAD, TeSys Deca LC1D, TeSys F LC1F, TeSys F CR1F |
| Mounting location | Front |
| Pole contact composition | 2 NO |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Standards | EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ |
| Product certifications | CB, UL, CSA, CCC, EAC, UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Electrical reliability | 1e-008 at 17 V and 1 mA |
| Minimum switching current | 1 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw-clamp terminals 1 cable(s) 1…4 mm²flexible with cable end, Screw-clamp terminals 1 cable(s) 1…4 mm²flexible without cable end, Screw-clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end, Screw-clamp terminals 2 cable(s) 1…4 mm²flexible without cable end, Screw-clamp terminals 1 cable(s) 1…4 mm²rigid without cable end, Screw-clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Tightening torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Height | 48 mm |
| Width | 44 mm |
| Depth | 42 mm |
| Net weight | 0.06 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment, Harsh environment, 3S4 |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60…80 °C |
| Ambient air temperature for operation | -25…60 °C, -40…-25 °C with derating, 60…70 °C with derating |
| Operating altitude | 3000 m |
| Part number | LADN20R |
|---|---|
| Type designation | LADN_R |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.300 cm |
| Package 1 Width | 4.300 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 54.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 105 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.063 kg |
| Shipping weight | 0.06 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
