Part number
LADN11A
Model no
LADN
$11.51 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

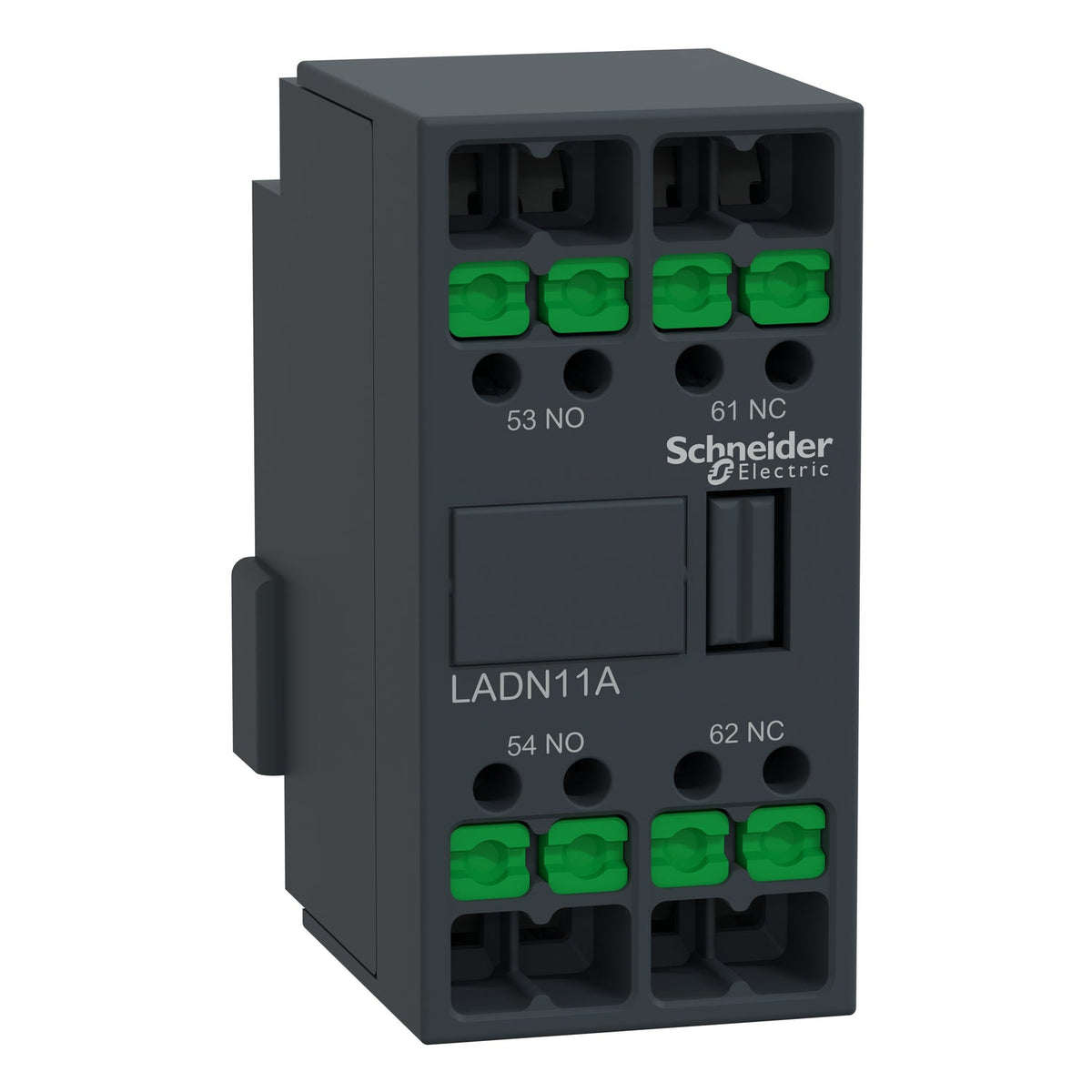

Schneider Electric LADN11A TeSys Deca 1NO+1NC 690 V AC Front-Mount Snap-In Auxiliary Contact Block

TeSys Deca 1NO+1NC auxiliary contact block, front mount, 690V AC, 10A Ith, snap-in terminals.

Rated current
10 A
EAN
3606487541738
Description

About the LADN

The Schneider Electric LADN11A is a TeSys Deca front-mounting auxiliary contact block that clips onto an LC1D or LC1F contactor, or a CAD control relay, adding one normally-open and one normally-closed (1NO+1NC) contacts without extra panel space. It carries a 690 V AC rated operational voltage (Ue) and a 10 A conventional free-air thermal current (Ith), with NC contacts mirror-certified to IEC 60947-5-1. Snap-in terminals accept 1-4 mm² flexible cable without tools.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • CCC
  • IEC 60947-5-1
  • UL 60947-5-1

Selection Notes

Pick the LADN11A when the control scheme needs one normally-open and one normally-closed (1NO+1NC) signals added to an existing TeSys Deca contactor or CAD relay — typically for status indication circuits that need one make and one break contact on the same block. Every block in this front-mount family shares the same 10 A Ith and 690 V AC Ue, so the only real selection criterion between siblings is contact arrangement, not rating; pick the NO/NC mix that matches the wiring diagram rather than over-ordering a higher pole count.

Specification

Full specification

48 values · Last verified 30 Oct 2026

Main 14

Range TeSys, TeSys Deca
Product name TeSys Deca
Product or Component Type Auxiliary contact block
Device short name LADN
Range compatibility TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Mounting Location Front
Pole contact composition 1 NO + 1 NC
Contacts operation Instantaneous
[Ue] rated operational voltage 690 V AC 25...400 Hz
[Ie] rated operational current 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
[Ui] rated insulation voltage 690 V IEC 60947-5-1
[Ith] conventional free air thermal current 10 A (at 140 °F (60 °C))
Standards EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ
Product Certifications CB Scheme, CCC, cULus, CE, UKCA, EU-RO-MR by DNV

Complementary 14

Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms
Protection type GG fuse 10 A
Mechanical durability 30 Mcycles
Minimum switching current 5 mA
Minimum switching voltage 17 V
Non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance > 10 MOhm
Connections - terminals snap-in terminal 1 0.002…0.006 in² (1…4 mm²)flexible with cable end, snap-in terminal 1 0.002…0.006 in² (1…4 mm²)flexible without cable end, snap-in terminal 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end, snap-in terminal 2 0.002…0.006 in² (1…4 mm²)flexible without cable end, snap-in terminal 1 0.002…0.006 in² (1…4 mm²)rigid without cable end, snap-in terminal 2 0.002…0.006 in² (1…4 mm²)rigid without cable end
Height 1.9 in (48 mm)
Width 1.02 in (26 mm)
Depth 1.7 in (42 mm)
Net Weight 1.09 oz (31 g)
color Dark grey

Environment 6

Environmental characteristic Normal environment
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TH IEC 60068
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Ambient Air Temperature for Operation 23…140 °F (-5…60 °C)
Operating altitude 9842.52 ft (3000 m)
Show all 48 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LADN11A
Type designation LADN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487541738

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.031 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LADN11A

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • CB Scheme
  • EN/IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • GB/T 14048.5
  • EN 50012
  • IEC 60335-1:Clause 30.2
  • IEC 60335-2-40:Annex JJ
Quick answers

Questions about the LADN

What is the rated current of LADN?

The rated current of LADN is 10 A.

What is the HS code of LADN for customs?

The tariff (HS) code on file for LADN is 853650.

What is the EAN of LADN?

The EAN (GTIN) of LADN is 3606487541738.

Where does LADN ship from, and how fast?

LADN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
