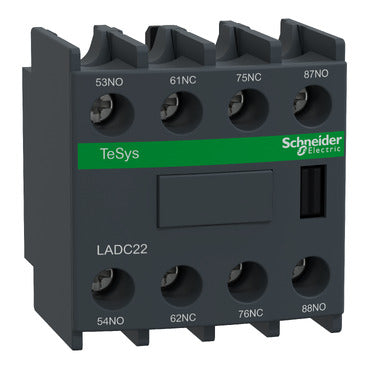

The Schneider Electric LADC22 is a TeSys Deca instantaneous auxiliary contact block for LC1D, LC1F contactors and CAD control relays, providing 2NO+2NC mirror-certified contacts of which 1NO+1NC switch make-before-break. Rated 10 A conventional thermal current at up to 690 V AC, it clips onto the front of the base device and connects by screw clamp terminals.
Pick the LADC22 when a control scheme needs four extra contacts in one front-mounted block, with 1NO+1NC switching make-before-break for sequencing applications such as a changeover signal ahead of the main contacts closing. The remaining 1NO+1NC are instantaneous and mirror-contact certified, so they can feed safety monitoring circuits in parallel with the sequenced pair; choose the side-mount block instead if the contactor front face is already occupied.
| Range | TeSys, TeSys Deca |
|---|---|
| Product name | TeSys Deca |
| Product or Component Type | Auxiliary contact block |
| Range compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
| Mounting Location | Front |
| Pole contact composition | 2 NO + 2 NC |
| Contacts operation | Make before break 1 NO + 1 NC, Instantaneous 1 NO + 1 NC |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V IEC 60947-5-1, 600 V UL, 600 V CSA |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5 |
| Product Certifications | CB, UL, CSA, EAC, CE, UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 1 s, 120 A 500 ms, 140 A 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Overlap time | 1.5 ms |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)rigid without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)rigid without cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2 |
| Height | 1.9 in (48 mm) |
| Width | 1.7 in (44 mm) |
| Depth | 1.7 in (42 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH IEC 60068 |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Part number | LADC22 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110384475 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
