Schneider Electric LAD9R1 TeSys Deca Reversing Contactor Kit 3P for LC1D09-D38 Screw Clamp Contactor Accessory

% $-18.74

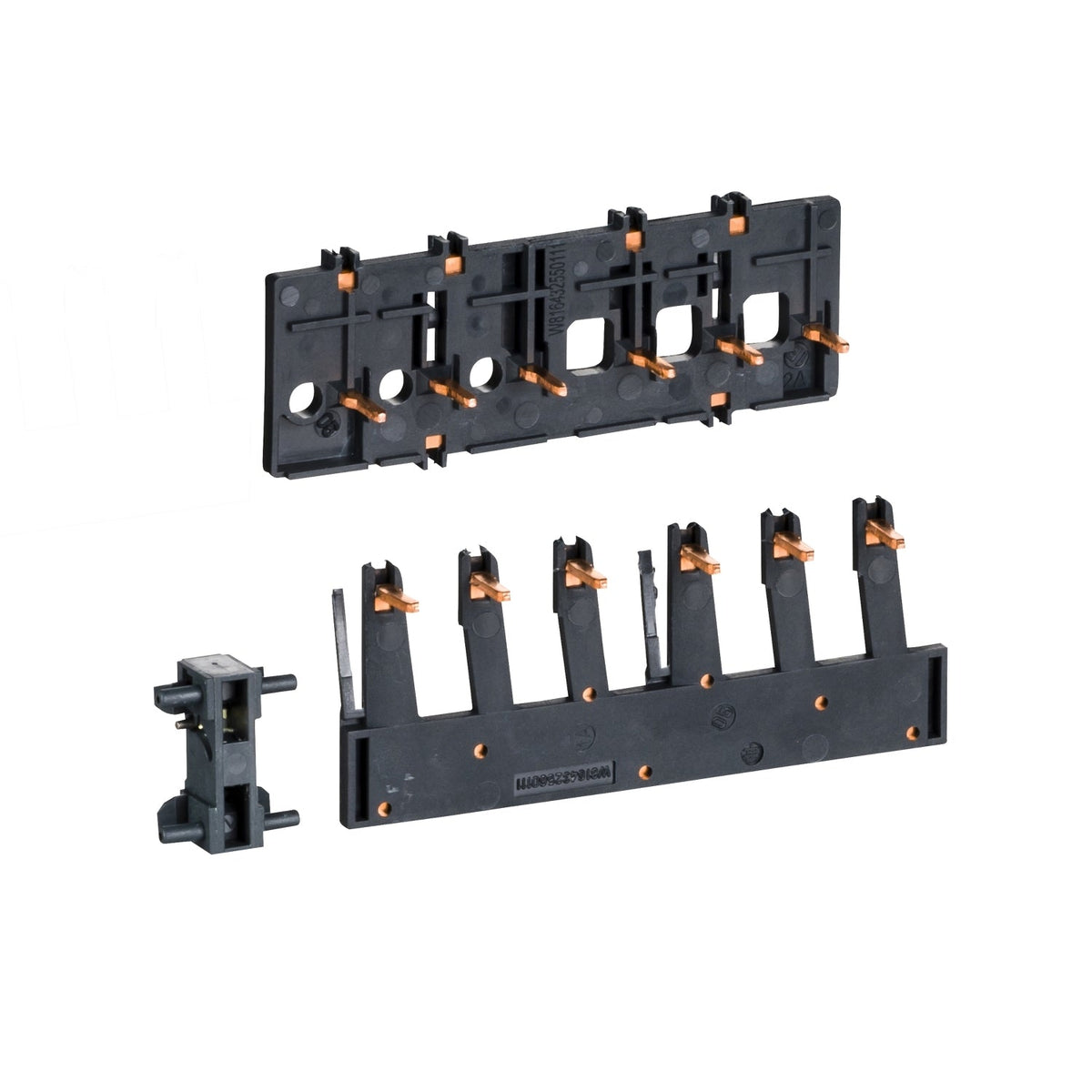

Schneider Electric LAD9R1 TeSys Deca reversing contactor kit for LC1D09-D38 3P contactors
Schneider Electric LAD9R1 TeSys Deca reversing contactor kit for LC1D09-D38 3P contactors

Schneider Electric LAD9R1 TeSys Deca Reversing Contactor Kit 3P for LC1D09-D38 Screw Clamp Contactor Accessory

Brand: Schneider Electric
Reference No: LAD9R1
Catalog No: LAD9R1
Series: TeSys Deca
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.74

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAD9R1 is a reversing contactor assembly kit for TeSys Deca, sized for 3-pole LC1D09 to LC1D38 contactors with screw clamp terminals. It contains a mechanical interlock (LAD9V2, without electrical interlocking), a set of 3 parallel bars (LAD9V5), and a set of 3 reverser bars (LAD9V6) to assemble two identical contactors side by side for a reversing starter. It conforms to RoHS/REACh regulation.

Technical Specifications

Reference LAD9R1
Brand Schneider Electric
Range TeSys Deca
Device Short Name LAD9
Product or Component Type Kit for reversing contactor
Poles 3P
Range Compatibility TeSys D, TeSys Deca
Product Compatibility LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
Kit Composition Mechanical interlock, set of power connection
Net Weight 0.045 kg
Units per Package 10
GTIN 3389110393972

Selection Notes

Specify the LAD9R1 to build a reversing starter from two identical LC1D09-D38 TeSys Deca contactors with screw clamp terminals - it covers the smallest TeSys Deca frame range. For the larger LC1D40A-D80A frame with EverLink BTR screw terminals, use the LAD9R3 kit instead.

Technical Details

Short Description
Reversing contactor assembly kit (mechanical interlock plus power bars) for two 3P LC1D09-D38 TeSys Deca contactors.
Catalog No
LAD9R1
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LAD9
Tariff Code
853690
