Schneider Electric LAD9150SD17 TeSys Deca Advanced Star-Delta Bar Kit 3P for LC1D40A-150A6 Contactor Accessory

% $-422.71

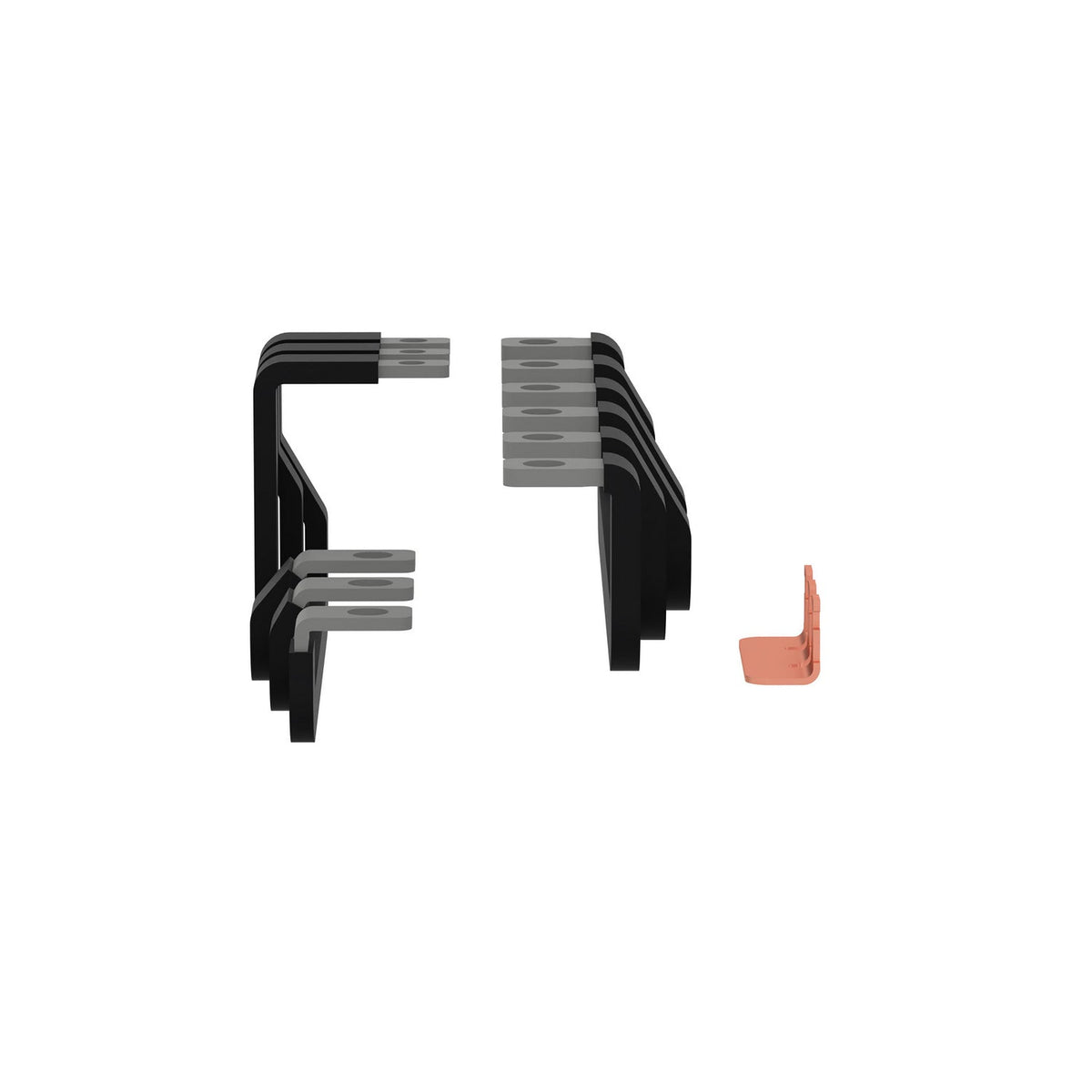

Schneider Electric LAD9150SD17 TeSys Deca star-delta bar kit for LC1D40A-150A6 contactors
Schneider Electric LAD9150SD17 TeSys Deca star-delta bar kit for LC1D40A-150A6 contactors

Schneider Electric LAD9150SD17 TeSys Deca Advanced Star-Delta Bar Kit 3P for LC1D40A-150A6 Contactor Accessory

Brand: Schneider Electric
Reference No: LAD9150SD17
Catalog No: LAD9150SD17
Series: TeSys Deca
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$422.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAD9150SD17 is a star-delta busbar kit for building a star-delta starter from TeSys Deca contactors. It supplies line-delta bars sized for 115 A to 150 A TeSys Deca Advanced contactors and star bars sized for 40 A to 65 A TeSys Deca contactors, attached directly to the contactor power connectors. It operates from -40°C to 70°C at altitudes up to 3000 m without derating.

Technical Specifications

Reference LAD9150SD17
Brand Schneider Electric
Range TeSys Deca
Device Short Name LAD9
Product or Component Type Set of connections (star-delta bars)
Poles 3P
Electrical Circuit Type Star-delta
Product Compatibility LC1D40A, LC1D65A, LC1D115, LC1D150
Quantity per Set 1
Net Weight 0.55 kg
Ambient Air Temperature (Storage) -60°C to 80°C
Units per Package 2
GTIN 3606487159445

Certifications & Standards

  • EN/IEC 60947-4-1
  • GB/T 14048.4
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

Specify the LAD9150SD17 when the star-delta starter mixes frame sizes - a 115-150 A line/delta contactor pair with a smaller 40-65 A star contactor, which is typical because the star contactor only switches a reduced current during starting. For a star-delta assembly built entirely from the 115-150 A frame, use the LAD9150SD19 kit instead.

Technical Details

Short Description
Star-delta busbar kit: line-delta bars for LC1D115A6-150A6, star bars for LC1D40A-65A TeSys Deca contactors.
Catalog No
LAD9150SD17
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LAD9
Tariff Code
853690
