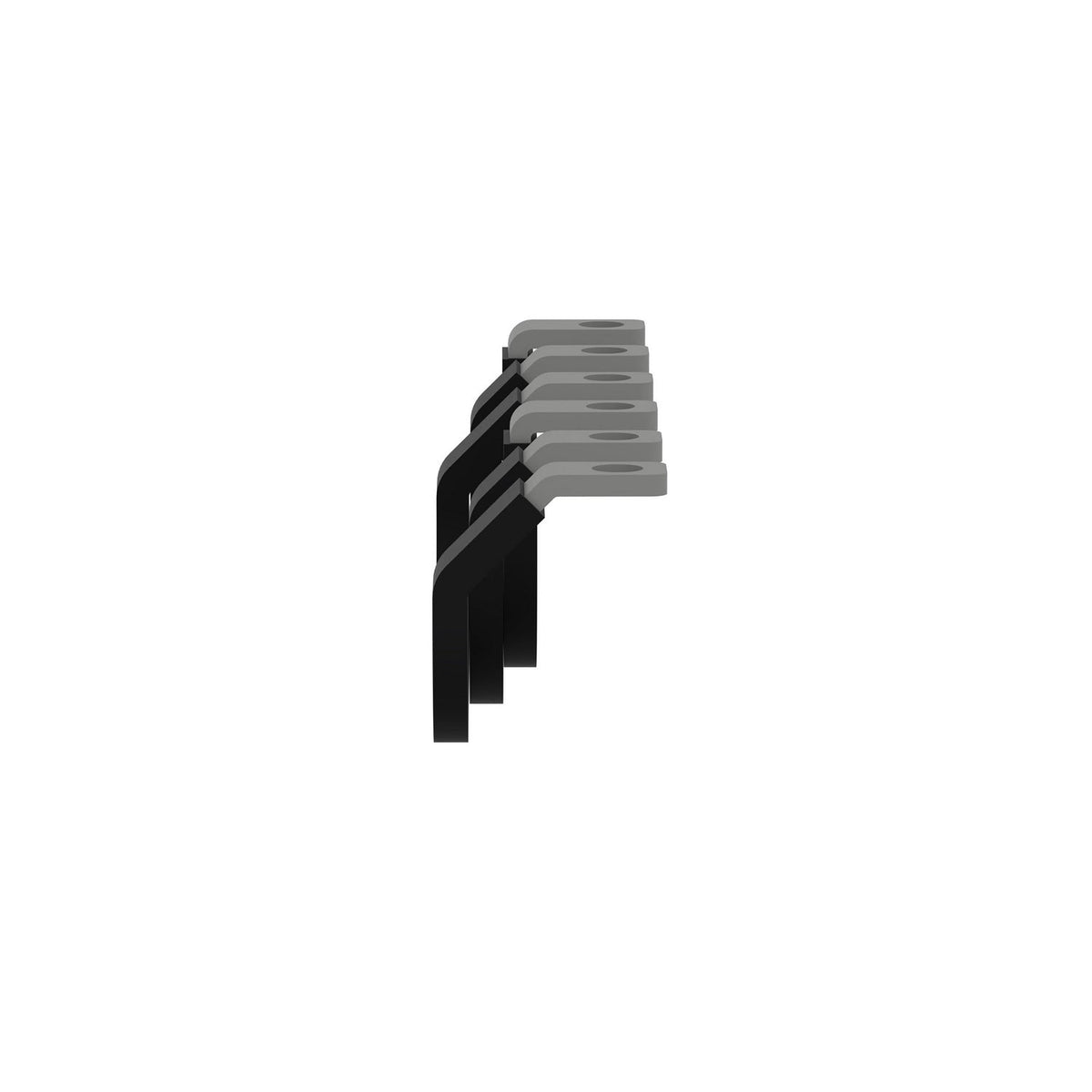

Schneider Electric LAD9150371 TeSys Deca Advanced Changeover Bar 3P for LC1D115-150A6 Contactor Accessory

The Schneider Electric LAD9150371 is a changeover bar accessory for TeSys Deca Advanced 3-pole contactors rated 115 A to 150 A. It bolts onto the LC1D115 and LC1D150 contactor connectors to assemble a changeover application, bridging the two contactors so the pair can switch a single motor circuit. Rated current is up to 150 A, and the assembly operates from -40°C to 70°C at altitudes up to 3000 m.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-4-1
• UL 60947-4-1
• CSA C22.2 No 60947-4-1
• GB/T 14048.4

Selection Notes

Specify the LAD9150371 when assembling a changeover pair from two LC1D115 or LC1D150 three-pole TeSys Deca Advanced contactors - the bar bridges the line and load connectors between the two units without hand-wired busbars. It is sized for the 115-150 A frame only; it is lighter than the LAD9150369 reverser bar because it covers a simpler changeover (rather than full reversing) connection pattern.
