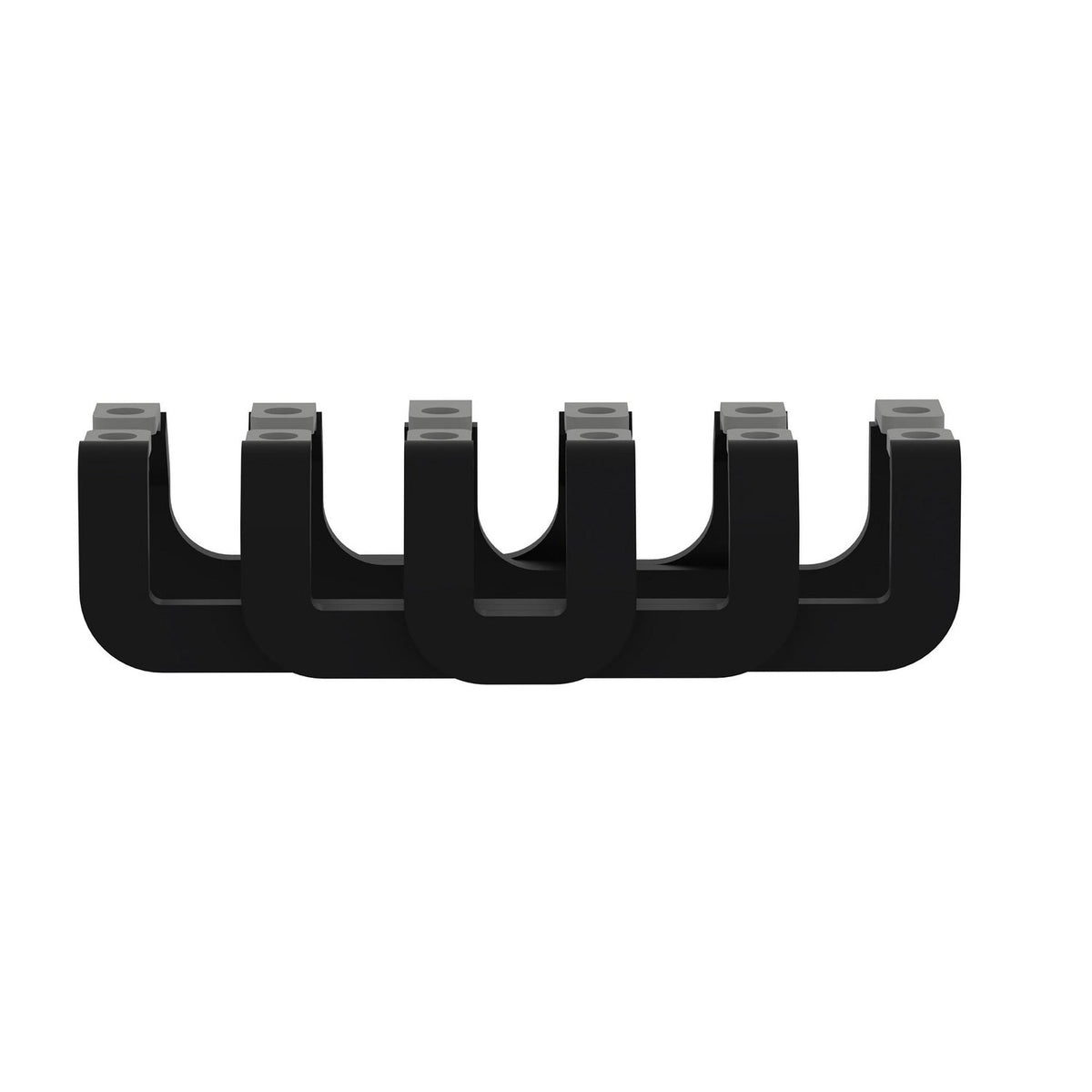

Schneider Electric LAD9150369 TeSys Deca changeover bar - 3P 150 A for LC1D115-150A6 contactor

Schneider Electric LAD9150369 TeSys Deca Advanced Changeover Bar 3P for LC1D115-150A6 Contactor Accessory

Name: Schneider Electric LAD9150369 TeSys Deca Advanced Changeover Bar 3P for LC1D115-150A6 Contactor Accessory
Brand: Schneider Electric
SKU: LAD9150369
Price: 382.72 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LAD9150369

Catalog No: LAD9150369

Series: TeSys Deca

Tariff Code (HS): 853690

Rated Current: 150 A

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$382.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LAD9150369 is a changeover bar accessory for TeSys Deca Advanced 3-pole contactors rated 115 A to 150 A. It bolts onto the LC1D115 and LC1D150 contactor connectors to build a changeover (line/load reversing) assembly, bridging the two contactors so the pair can switch a single motor circuit. Rated current is up to 150 A, and the assembly operates from -40°C to 70°C at altitudes up to 3000 m.

Technical Specifications

Reference	LAD9150369
Brand	Schneider Electric
Range	TeSys Deca
Device Short Name	LAD9
Product or Component Type	Set of connections (changeover bar)
Poles	3P
Product Compatibility	LC1D115, LC1D150
Quantity per Set	1
Rated Current	150 A
Net Weight	0.68 kg
Ambient Air Temperature (Storage)	-60°C to 80°C
Units per Package	6
GTIN	3606487159438

Certifications & Standards

EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
GB/T 14048.4

Selection Notes

Specify the LAD9150369 when assembling a reversing or changeover pair from two LC1D115 or LC1D150 three-pole TeSys Deca Advanced contactors - the bar bridges the line and load connectors between the two units without hand-wired busbars. It is sized for the 115-150 A frame only; smaller TeSys Deca frames use the matching LAD9 kit for that frame size.

Technical Details

Short Description

Changeover bar kit for 3P TeSys Deca Advanced LC1D115-150A6 contactors, rated up to 150 A.

Rated Current (Ampere)

150 A

Catalog No

LAD9150369

Number of Poles

Delivery Date (Days)

30 days

Model Number

LAD9

Tariff Code

853690
