Part number
LAD911546
Model no
LAD9
$18.09 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

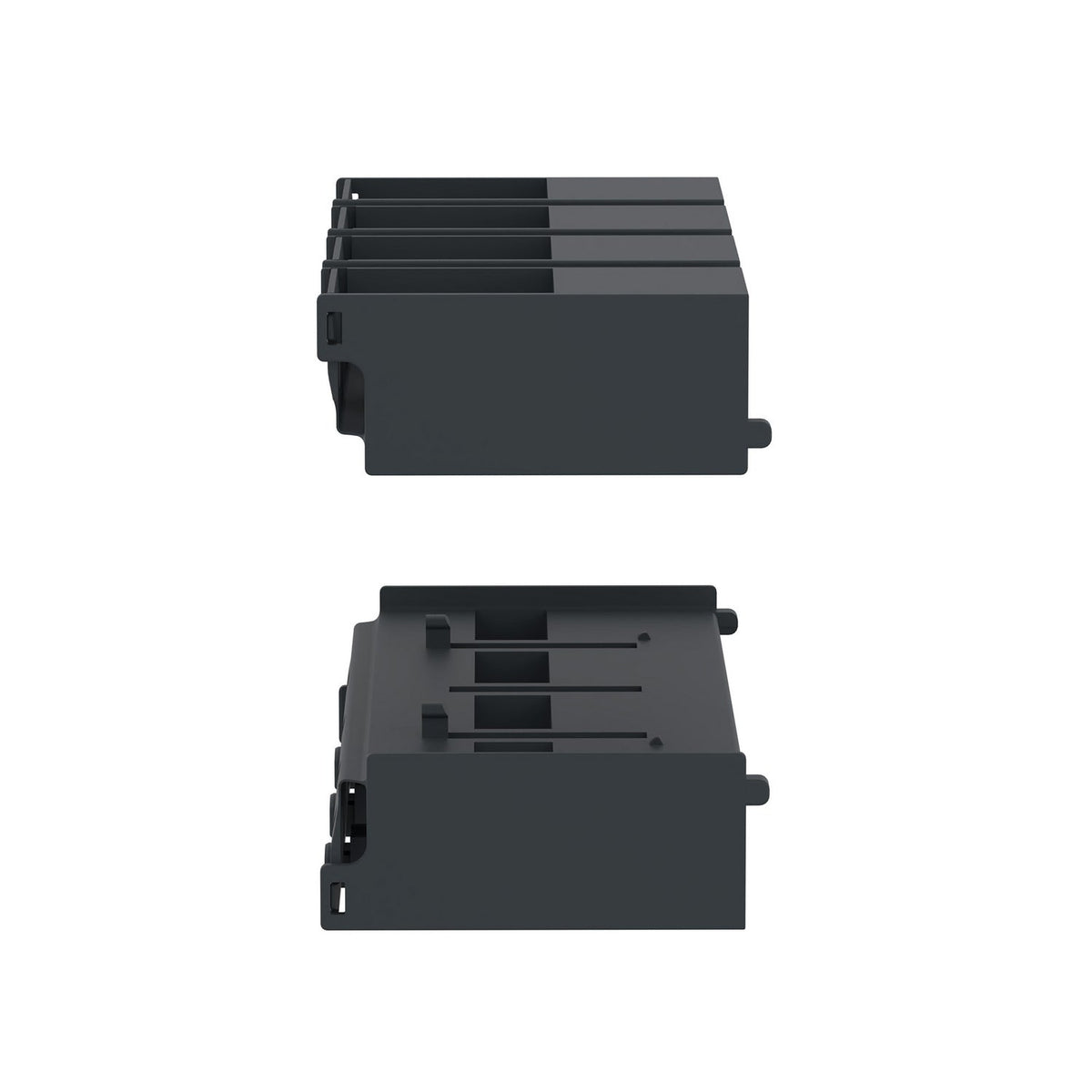

Schneider Electric LAD911546 TeSys Deca Advanced Nut Holder 4P for LC1DT200A6 Lug Contactor Accessory

TeSys Deca Advanced nut holder, 4P, set of 2, lug and busbar connectors for LC1DT200A6.

Poles
3P
EAN
3606487159247
Description

About the LAD9

The Schneider Electric LAD911546 is a TeSys Deca Advanced nut holder block for 4-pole LC1DT200A6 contactors, connecting lugs and busbars up to 5 x 25 mm. It operates across -40 to 70 °C and up to 3000 m altitude without derating, and carries a QR code for quick access to product data.

Selection Notes

The LAD911546 is sized for the 4-pole LC1DT200A6 frame; the 3-pole LC1D115A6-150A6 frame takes the LAD915036 nut holder instead. It is a bolted lug/busbar interface, not a reversing or star-delta connection set, so pair it with the matching LAD9115471 changeover bar where a reversing assembly is also needed.

Specification

Full specification

24 values · Last verified 30 Oct 2026

Main 7

Range of Product TeSys Deca
Range TeSys
Device short name LAD9
Product or Component Type Nut holder
Poles description 4P
Product Compatibility LC1DT200...
Quantity per Set 2

Complementary 3

IP Degree of Protection IP20
Net Weight 0.51 lb(US) (0.23 kg)
Connections - Terminals Lugs-ring terminals

Contractual warranty 1

Warranty (in months) 18
Show all 24 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LAD911546
Type designation LAD9
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487159247

Logistics 5

Country of origin CN
Shipping weight 0.23 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LAD911546

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LAD9

What is the HS code of LAD9 for customs?

The tariff (HS) code on file for LAD9 is 853690.

What is the EAN of LAD9?

The EAN (GTIN) of LAD9 is 3606487159247.

Where does LAD9 ship from, and how fast?

LAD9 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
