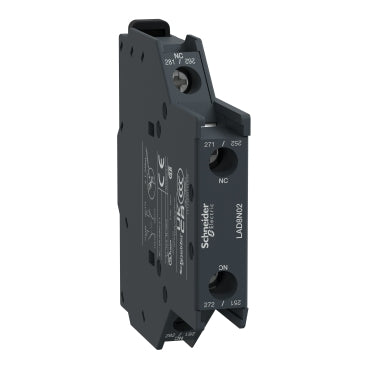

The Schneider Electric LAD8N02 is a TeSys Deca instantaneous auxiliary contact block that adds 2NC mirror-certified contacts to LC1D80...D95 contactors and CAD control relays with AC coils. Rated 10 A conventional thermal current (Ith) at up to 690 V AC, it connects by screw clamp terminals and clips onto the side of the base device.
Choose the LAD8N02 when a contactor control circuit needs two additional NC contacts with mirror-contact certification suitable for safety-related feedback wiring, side-mounted so the front of the contactor stays free for other blocks. Its 1.04 A rating at 690 V AC-15 and GG 10 A fuse protection size it for low-energy pilot and interlock circuits rather than motor loads; for front-mounted or mixed NO/NC configurations, choose the equivalent front-mount block instead.
| Range | TeSys |
|---|---|
| Product name | TeSys Deca |
| Product or Component Type | Auxiliary contact block |
| Product compatibility | LC1D80...D95 |
| Range compatibility | TeSys Deca LC1D09…95 AC coil, TeSys Deca LC1D40A…80A AC Coil, TeSys Deca LC1D115/150, TeSys Deca CAD AC coil, TeSys F LC1F |
| Mounting Location | Side |
| Pole contact composition | 2 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage | 690 V IEC 60947-5-1, 600 V UL, 600 V CSA |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ |
| Product Certifications | CB Scheme, UL, CSA, CCC, EAC, UKCA |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible short-time rating | 100 A 1 s, 120 A 500 ms, 140 A 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)rigid without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)rigid without cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2 |
| Height | 2.8 in (72 mm) |
| Width | 0.5 in (12.5 mm) |
| Depth | 2.8 in (71.3 mm) |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH IEC 60068 |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
| Operating altitude | 9842.52 ft (3000 m) |
| Part number | LAD8N02 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110384499 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.06 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
