Schneider Electric LAD5CM TeSys Deca Mechanical Interlock for LC1D115A-D150A Contactor Accessory

% $-32.37

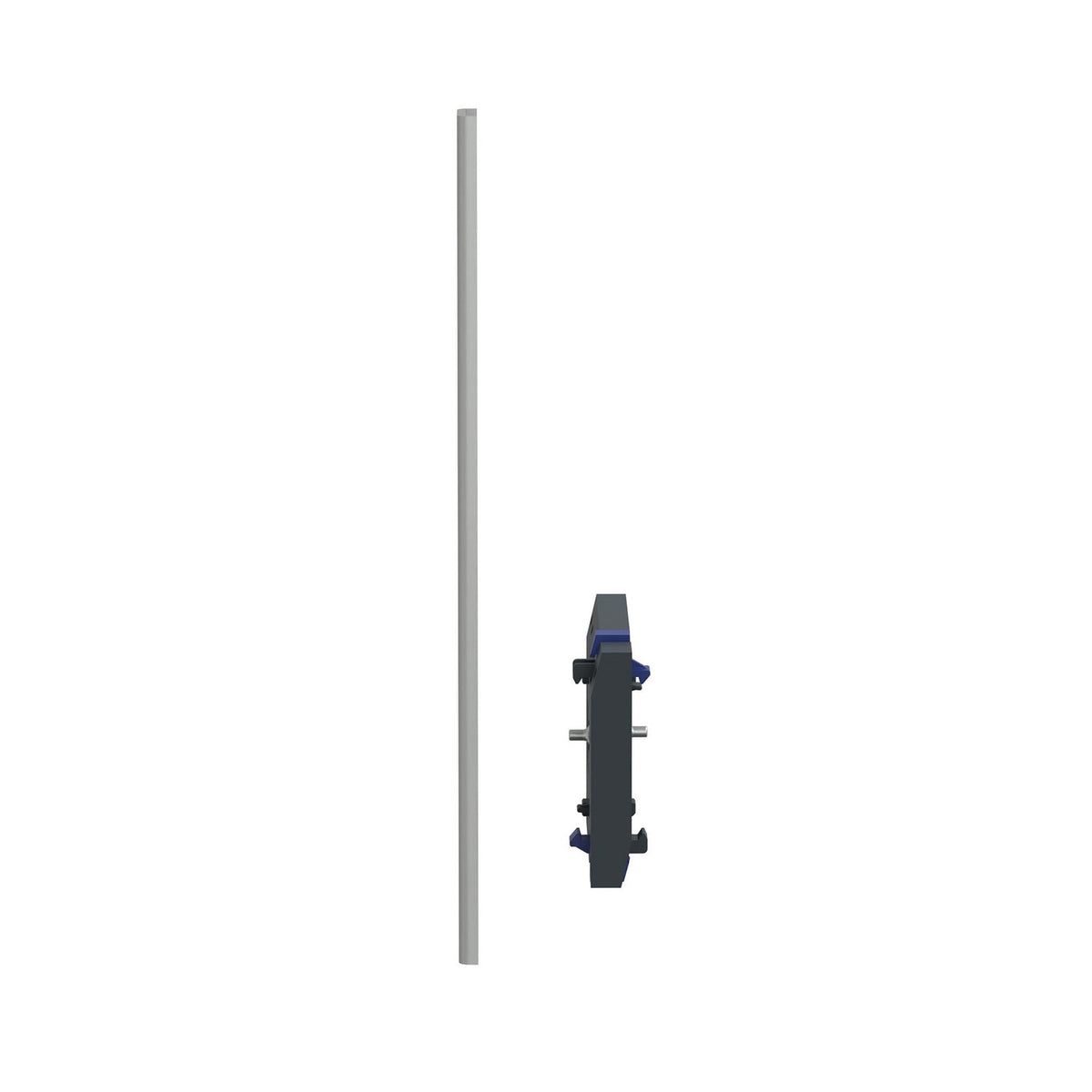

Schneider Electric LAD5CM TeSys Deca mechanical interlock for LC1D115A-D150A
Schneider Electric LAD5CM TeSys Deca mechanical interlock for LC1D115A-D150A

Schneider Electric LAD5CM TeSys Deca Mechanical Interlock for LC1D115A-D150A Contactor Accessory

Brand: Schneider Electric
Reference No: LAD5CM
Catalog No: LAD5CM
Series: TeSys Deca
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$32.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAD5CM is a TeSys Deca Advanced mechanical interlock for 115 A to 150 A 3-pole and 200 A 4-pole contactors within an identical frame, built for star-delta assembly without electrical interlocking. It operates across -40 to 70 °C and up to 3000 m altitude without derating, and carries a QR code for quick access to product data.

Technical Specifications

SKU LAD5CM
GTIN 3606487159513
Brand Schneider Electric
Range TeSys Deca
Device short name LAD5C
Product type Mechanical interlock
Accessory category Interlocking accessory
Interlocking type Mechanical
Poles 3P, 4P
Electrical circuit type Reversing, changeover, star-delta
Product compatibility LC1D115A-D150A (3P), LC1DT200A (4P)
Ambient temperature, operation -40 to 70 °C
Operating altitude 3000 m without derating
Net weight 0.1 kg
Country of origin Czech Republic

Selection Notes

The LAD5CM is sized for the LC1D115A-D150A frame; the smaller LC1D80/LC1D95 frame uses the LA9D50978 (AC coil) or LA9D80978 (DC coil) interlocks instead. It supports star-delta assembly in addition to reversing and changeover, a wider circuit-type range than the LA9D interlocks on the smaller frame.

Technical Details

Short Description
TeSys Deca mechanical interlock, for LC1D115A-D150A (3P) and LC1DT200A (4P) contactors.
Mounting Type
Between paired contactors
Catalog No
LAD5CM
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LAD5CM
Tariff Code
853690
