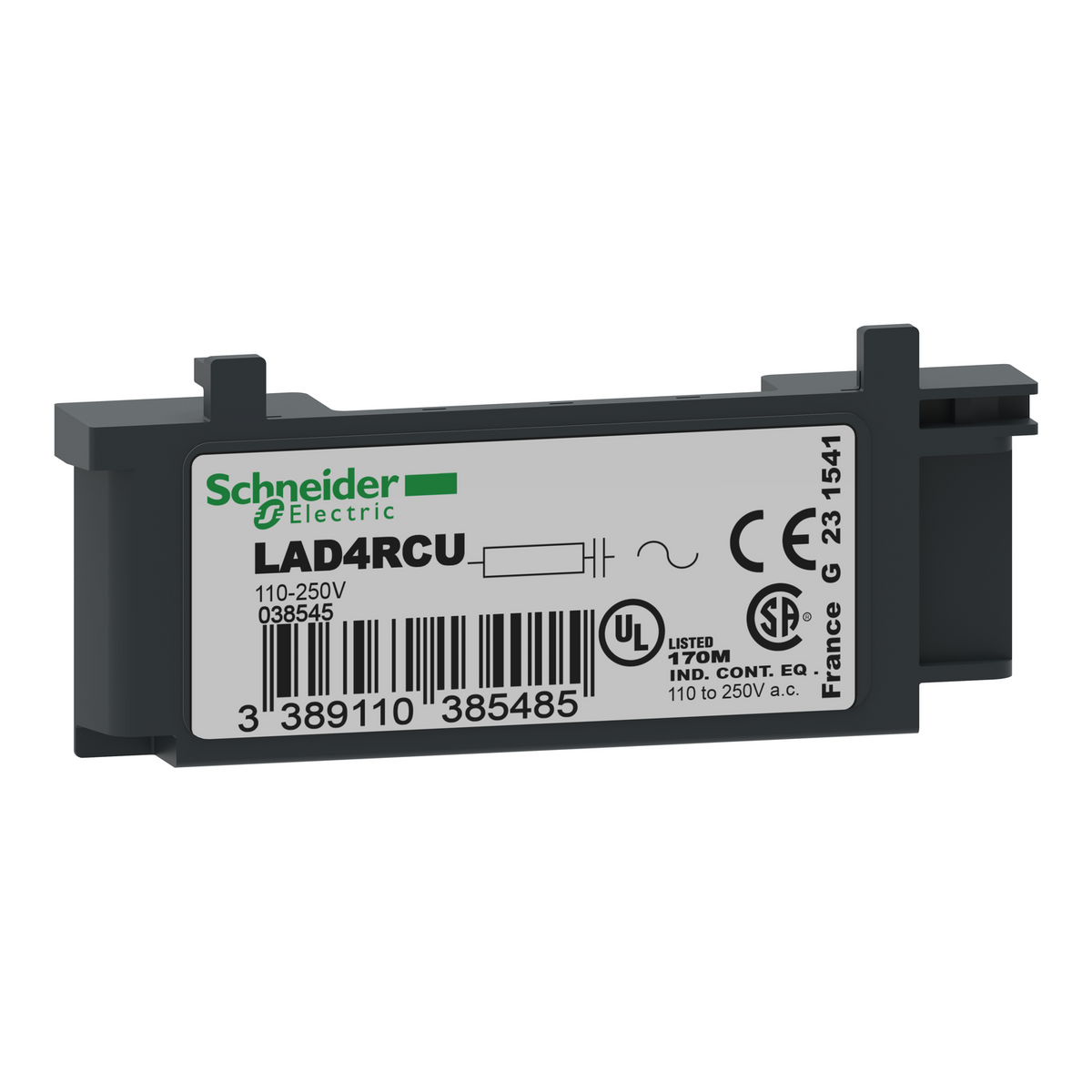

The Schneider Electric LAD4RCU is a TeSys Deca RC suppressor module for 110-250 V AC control circuits, clip-mounted on the right side in the cavity of LC1D09-D38 3-pole and LC1DT20-DT40 4-pole contactors, and also fits CAD control relays. It limits the coil-switching transient voltage to 3 Uc maximum without changing the overall contactor size.
The LAD4RCU covers 110-250 V AC coils on the LC1D09-D38/LC1DT20-DT40 frame and CAD control relays; for 24-48 V AC coils on the same compatibility range, use the LAD4RCE instead. Mounting in the contactor's cavity keeps the overall size unchanged compared with the top-mounted LA4D suppressors on the larger TeSys Deca frames.
| Range | TeSys |
|---|---|
| Device short name | LAD4 |
| Product or Component Type | Suppressor module |
| Product compatibility | 3P LC1D09...D38, 4P LC1DT20...DT40, 4P LC1D098...D258, CAD32, CAD50 |
| Mounting Location | Side |
|---|---|
| Mounting Mode | By clips |
| Suppressor technology | RC circuit |
| [Uc] control circuit voltage | 110...250 V AC |
| Maximum peak voltage | 3 Uc |
| Net Weight | 0.026 lb(US) (0.012 kg) |
| Standards | IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5 |
|---|---|
| Product Certifications | UL, CSA |
| IP degree of protection | IP2XIEC 60529 |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Part number | LAD4RCU |
|---|---|
| Type designation | LAD4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110385458 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.012 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of LAD4 is 110–250 V AC.
The tariff (HS) code on file for LAD4 is 853690.
The EAN (GTIN) of LAD4 is 3389110385458.
LAD4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
