Part number
LAD4RC3U
Model no
LAD4
$10.88 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

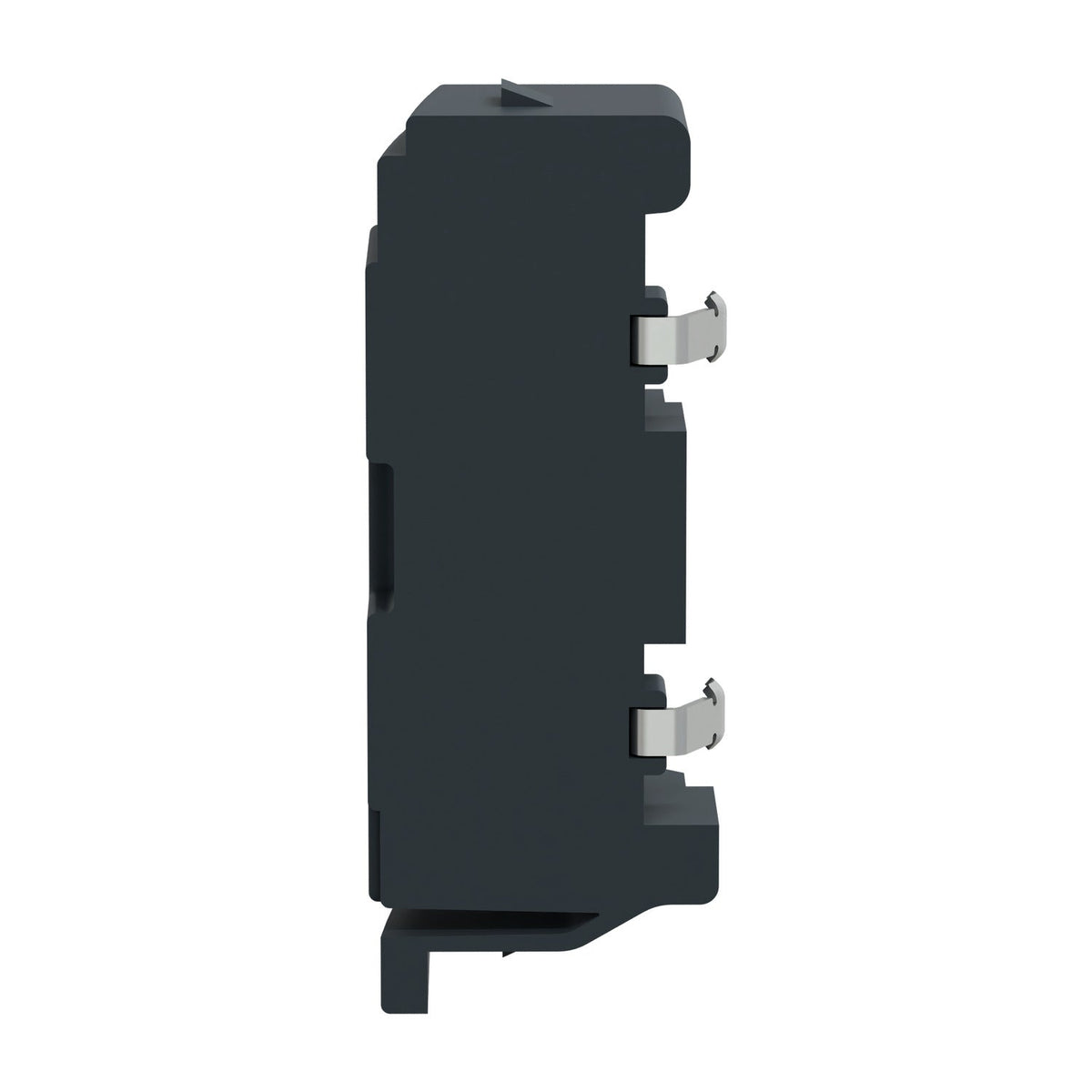

Schneider Electric LAD4RC3U TeSys Deca RC Suppressor Module 110-240 V AC for LC1D40A-D80A Contactor Accessory

TeSys Deca RC suppressor module, 110-240 V AC coil, for LC1D40A-D80A (3P) / LC1DT60A-DT80A (4P) contactors.

Rated operational voltage
110–240 V AC
Poles
3P
EAN
3389119410182
Description

About the LAD4

The Schneider Electric LAD4RC3U is a TeSys Deca RC suppressor module for 110-240 V AC control circuits, clip-mounted on the front of LC1D40A-D80A 3-pole and LC1DT60A-DT80A 4-pole contactors without changing the contactor's overall size. It limits the coil-switching transient voltage to 3 Uc maximum.

Certifications & Standards

  • UL
  • CSA
  • IEC 60947-5-1
  • EN 60947-5-1
  • CSA C22.2 No 60947-5-1
  • UL 60947-5-1
  • GB/T 14048.5

Selection Notes

Choose the LAD4RC3U for 110-240 V AC coil circuits on the LC1D40A-D80A/LC1DT60A-DT80A range; for 24-48 V AC coils on the same contactor range, use the LAD4RC3E instead. Front clip-on mounting keeps the contactor's overall footprint unchanged, unlike the LA4D series that mounts on top.

Specification

Full specification

30 values · Last verified 30 Oct 2026

Main 4

Range TeSys, TeSys Deca
Device short name LAD4
Product or Component Type Suppressor module
Product compatibility 3P LC1D40A...D80A, 4P LC1DT60A...DT80A

Complementary 7

Mounting Location Front
Mounting Mode By clips
Suppressor technology RC circuit
[Uc] control circuit voltage 110...240 V AC
Maximum peak voltage 3 Uc
Net Weight 0.09 lb(US) (0.04 kg)
color Dark grey

Environment 5

Standards IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5
Product Certifications UL, CSA
IP degree of protection IP2XIEC 60529
Ambient Air Temperature for Operation -13…131 °F (-25…55 °C)
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 30 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LAD4RC3U
Type designation LAD4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119410182

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.04 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LAD4RC3U

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-5-1
  • EN 60947-5-1
  • CSA C22.2 No 60947-5-1
  • UL 60947-5-1
  • GB/T 14048.5
Quick answers

Questions about the LAD4

Which supply voltage is LAD4 rated for?

The rated operational voltage of LAD4 is 110–240 V AC.

What is the HS code of LAD4 for customs?

The tariff (HS) code on file for LAD4 is 853690.

What is the EAN of LAD4?

The EAN (GTIN) of LAD4 is 3389119410182.

Where does LAD4 ship from, and how fast?

LAD4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
