Schneider Electric LA9GSQ330 TeSys Giga Star-Delta Bar for LC1G265-500/LC1G115-225 Contactor Accessory

% $-488.01

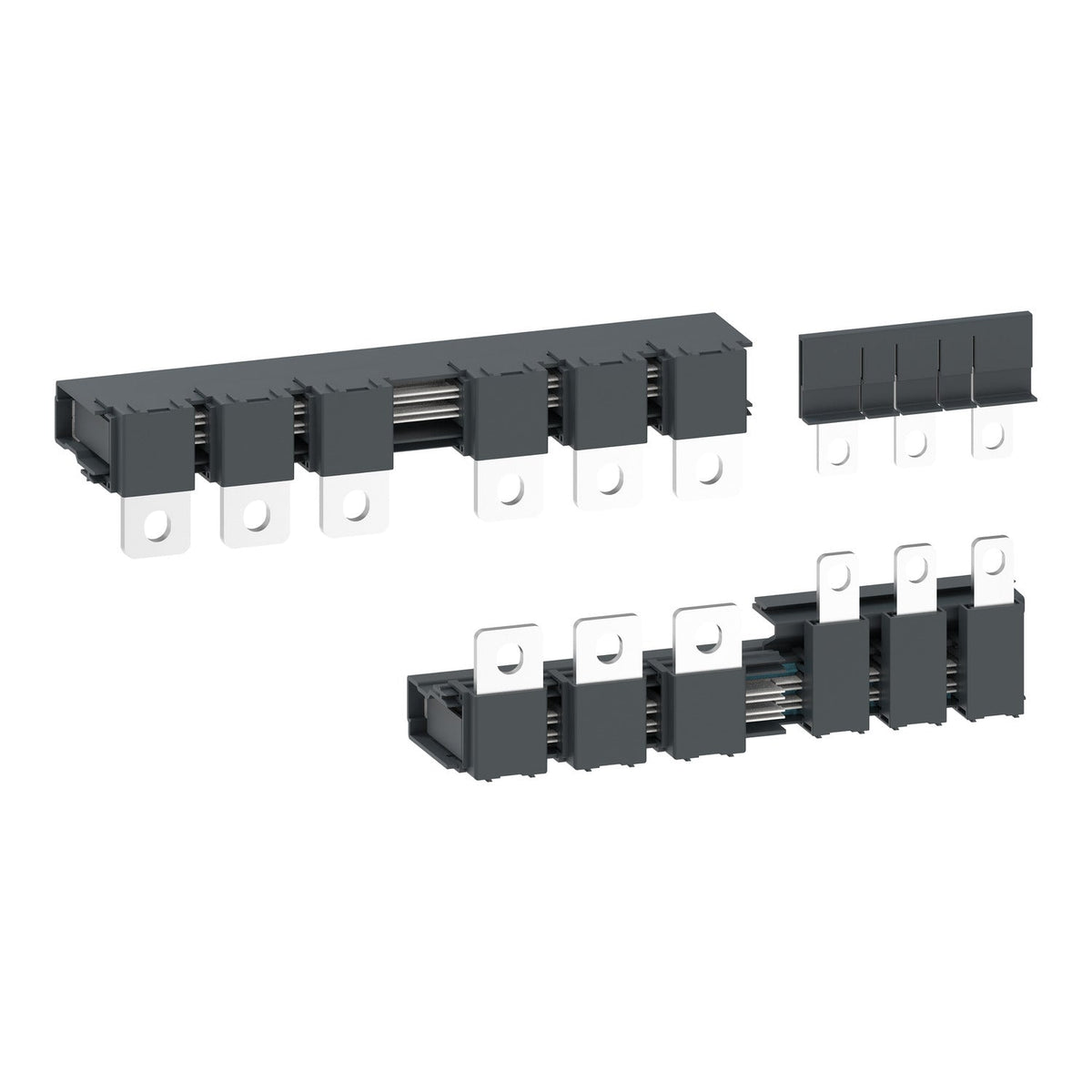

Schneider Electric LA9GSQ330 TeSys Giga star-delta connection bar kit
Schneider Electric LA9GSQ330 TeSys Giga star-delta connection bar kit

Schneider Electric LA9GSQ330 TeSys Giga Star-Delta Bar for LC1G265-500/LC1G115-225 Contactor Accessory

Brand: Schneider Electric
Reference No: LA9GSQ330
Catalog No: LA9GSQ330
Series: TeSys Giga
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$488.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LA9GSQ330 is a TeSys Giga star-delta connection bar kit, supplying the line and delta bars for an LC1G265-500 contactor paired with the star bars for an LC1G115-225 contactor. It provides IP20 protection and is sold as a set of 1.

Technical Specifications

SKU LA9GSQ330
GTIN 3606481916228
Brand Schneider Electric
Range TeSys Giga
Device short name LA9G
Product type Set of connections
Accessory category Connection accessory
Electrical circuit type Star-delta
Poles 3P
Product compatibility LC1G115-225 (star), LC1G265-500 (line and delta)
Quantity per pack Set of 1
Dimensions H x W x D 65 x 145 x 405 mm
Net weight 1.5 kg
IP degree of protection IP20
Operating altitude 3000 m without derating
Ambient temperature, operation -25 to 60 °C
Country of origin China

Certifications & Standards

  • EN/IEC 60947-4-1

Selection Notes

The LA9GSQ330 combines two contactor sizes in one kit: an LC1G265-500 unit wired as line/delta and an LC1G115-225 unit wired as star. For an all-in-one-size star-delta kit on the LC1G265-500 frame, use the LA9GSS330 instead; for the same line/delta-star split with an added cable memory kit, use the LA9GSQ331.

Technical Details

Short Description
TeSys Giga star-delta connection bar kit, for LC1G265-500 (line/delta) and LC1G115-225 (star).
Mounting Type
Attached to contactor standard terminals
Protection Type
IP20
Catalog No
LA9GSQ330
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LA9GSQ330
Tariff Code
853690
