Schneider Electric LA9GRD01 TeSys Giga Remote Wear Diagnostic Module 1NC for LC1G Contactor Accessory

% $-122.82

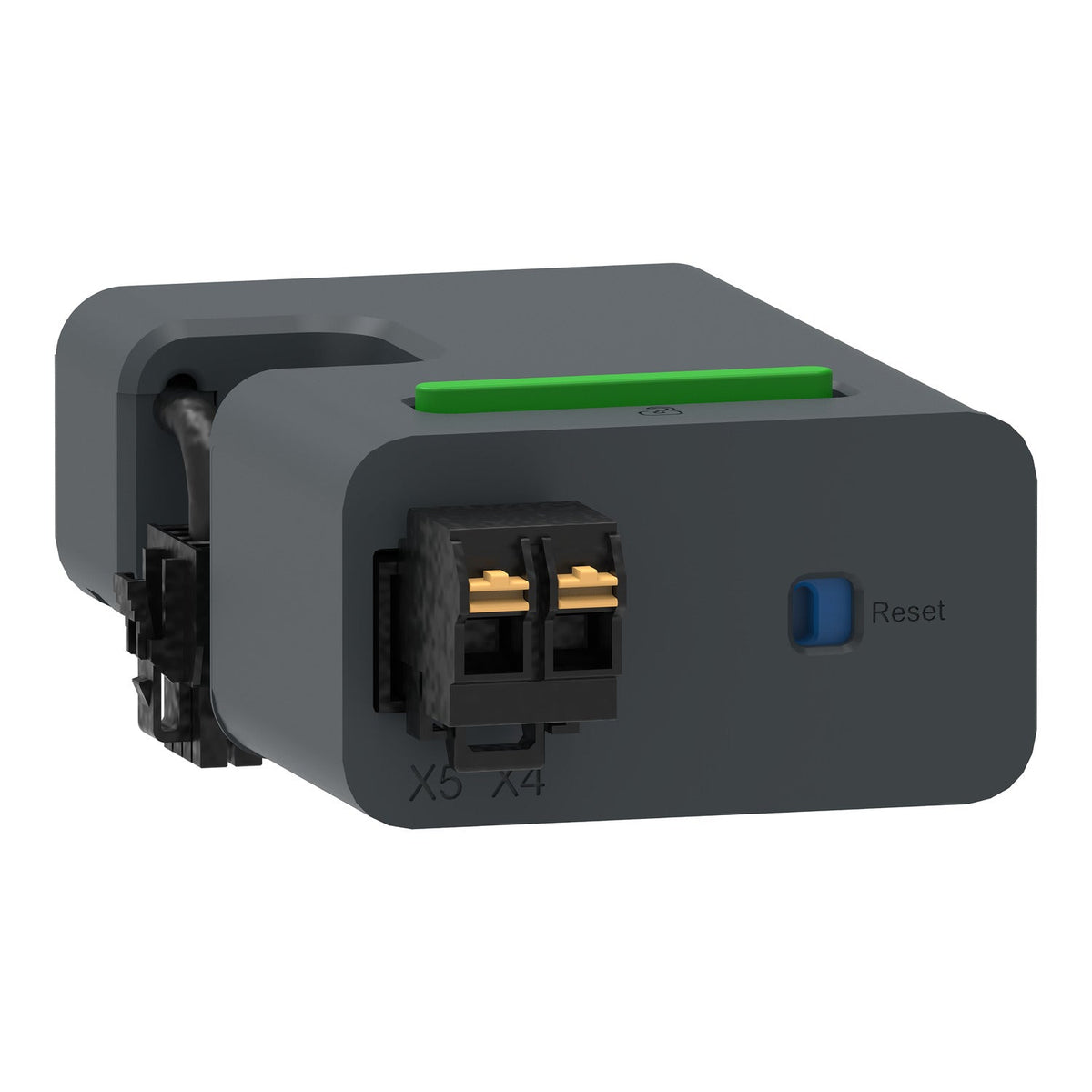

Schneider Electric LA9GRD01 TeSys Giga remote wear diagnostic module 1NC
Schneider Electric LA9GRD01 TeSys Giga remote wear diagnostic module 1NC

Schneider Electric LA9GRD01 TeSys Giga Remote Wear Diagnostic Module 1NC for LC1G Contactor Accessory

Brand: Schneider Electric
Reference No: LA9GRD01
Catalog No: LA9GRD01
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$122.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LA9GRD01 is a TeSys Giga remote wear diagnostic module that mounts on top of an LC1G contactor and outputs a 1NC contact for continuous remote monitoring of contact wear, using the contactor's opening-speed as the wear indicator. It flags when contacts need replacing instead of on a fixed maintenance schedule.

Technical Specifications

SKU LA9GRD01
GTIN 3606481047939
Brand Schneider Electric
Range TeSys Giga
Device short name LA9G
Product type Function module
Main function Remote alarm
Auxiliary contact composition 1 NC
Conventional free air thermal current Ith 5 A
Mounting Top of contactor
Connection pitch 5.08 mm
Dimensions H x W x D 91.5 x 30 x 50 mm
Net weight 0.1 kg
IP degree of protection IP20
Pollution degree 3
Ambient temperature, operation -25 to 60 °C
Country of origin China

Certifications & Standards

  • CB Scheme
  • CCC
  • cULus
  • UKCA
  • ATEX
  • EU-RO-MR by DNV-GL
  • EAC
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • JIS C8201-4-1
  • JIS C8201-5-1

Selection Notes

The LA9GRD01 outputs a normally-closed (1NC) alarm contact, which de-energizes to signal the fault state and fails safe if the module loses power. Where a normally-open (1NO) output better suits the PLC input wiring instead, use the LA9GRD10 module.

Technical Details

Short Description
TeSys Giga remote wear diagnostic module, 1NC output, for LC1G contactors.
Mounting Type
Top of contactor
Protection Type
IP20
Catalog No
LA9GRD01
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LA9GRD01
Tariff Code
853690
