Schneider Electric LA9G971 TeSys Giga Mechanical Interlock IP20 for LC1G265-500 and Contactor Accessory

% $-31.31

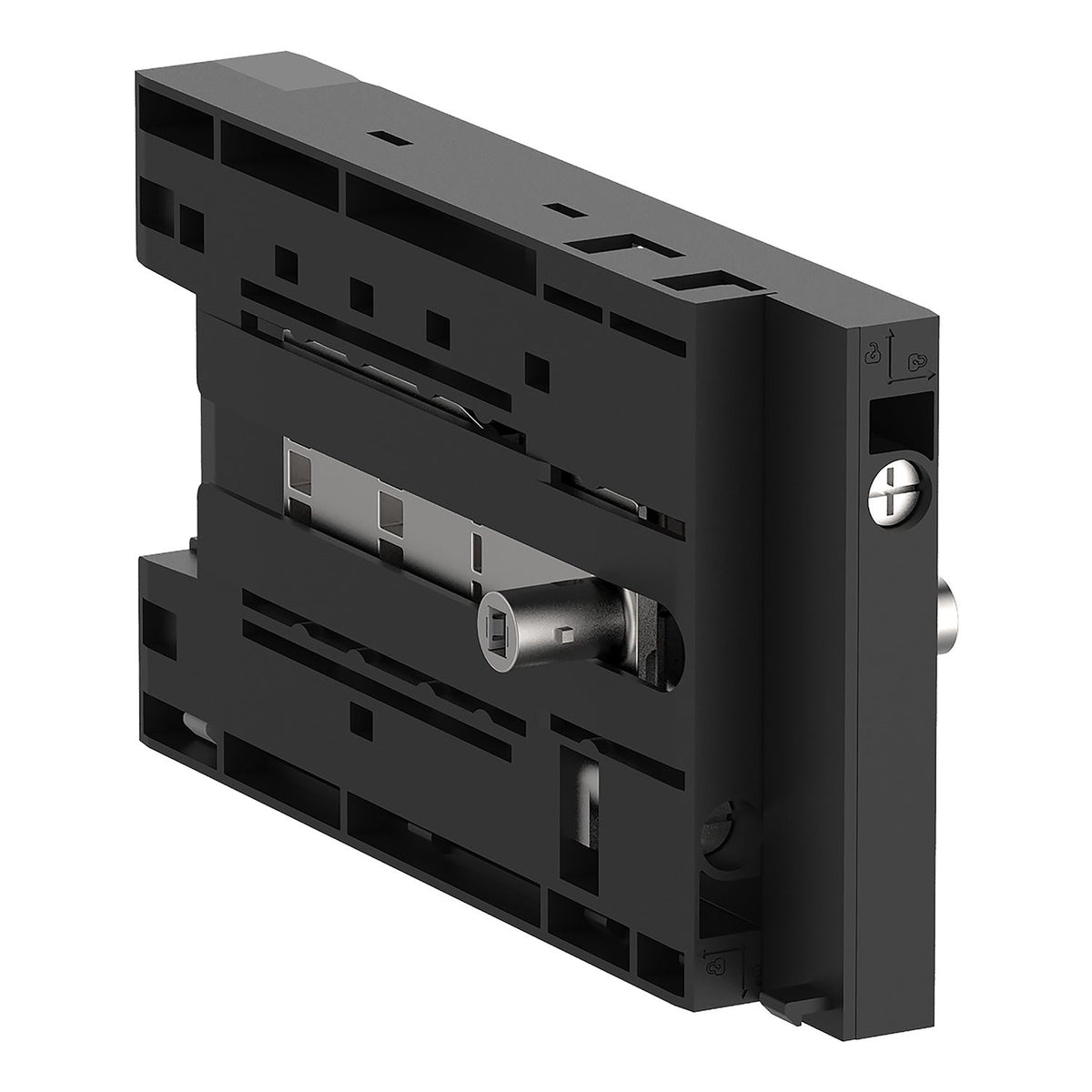

Schneider Electric LA9G971 TeSys Giga mechanical interlock IP20
Schneider Electric LA9G971 TeSys Giga mechanical interlock IP20

Schneider Electric LA9G971 TeSys Giga Mechanical Interlock IP20 for LC1G265-500 and Contactor Accessory

Brand: Schneider Electric
Reference No: LA9G971
Catalog No: LA9G971
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.31

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LA9G971 is a TeSys Giga mechanical interlock pairing an LC1G265-500 contactor with an LC1G115-225 contactor, built for star-delta assemblies without electrical interlocking. It provides IP20 protection and operates across -25 to 60 °C up to 3000 m altitude without derating.

Technical Specifications

SKU LA9G971
GTIN 3606481916075
Brand Schneider Electric
Range TeSys Giga
Device short name LA9G
Product type Mechanical interlock
Accessory category Interlocking accessory
Interlocking type Mechanical
Range compatibility TeSys Giga
Product compatibility LC1G115-225, LC1G265-500, LC1G205-245, LC1G300-475
Poles 3P
Electrical circuit type Star-delta
Dimensions H x W x D 50 x 80 x 140 mm
Net weight 0.15 kg
IP degree of protection IP20
Pollution degree 3
Operating altitude 3000 m without derating
Ambient temperature, operation -25 to 60 °C
Country of origin China

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4

Selection Notes

The LA9G971 interlocks a mixed-frame pair, an LC1G265-500 unit with an LC1G115-225 unit, for a star-delta starter where the star contactor is a smaller frame than the line and delta contactors. Where all contactors being interlocked are the same frame, the LA9G970 interlock is the correct part instead.

Technical Details

Short Description
TeSys Giga mechanical interlock, IP20, star-delta, for LC1G265-500 and LC1G115-225 contactors.
Mounting Type
Between paired contactors
Protection Type
IP20
Catalog No
LA9G971
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LA9G971
Tariff Code
853690
