Schneider Electric LA9G3SA TeSys Giga Switching Module Kit 3P 500 A for LC1G400-500 Contactor Accessory

% $-649.16

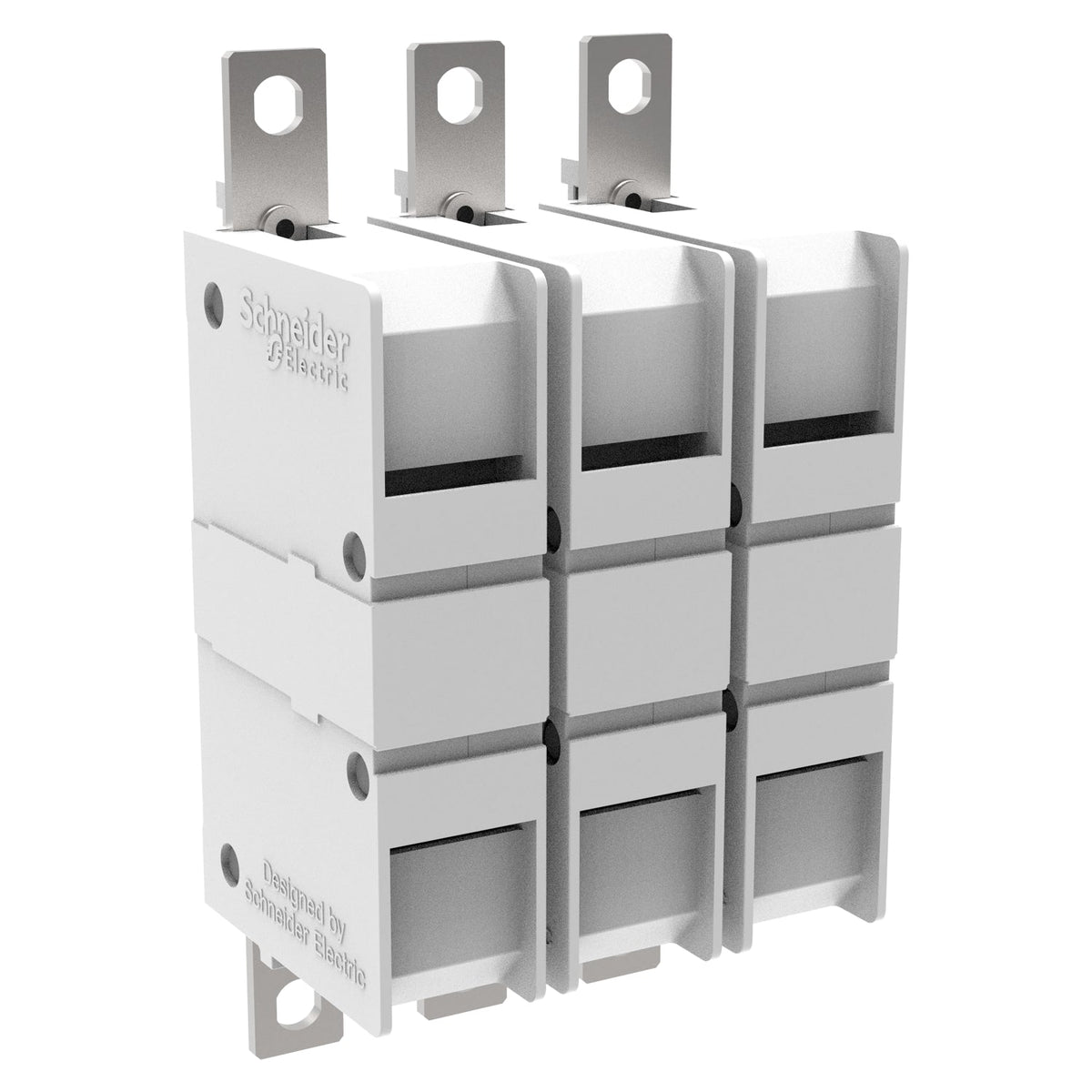

Schneider Electric LA9G3SA TeSys Giga switching module kit 500 A
Schneider Electric LA9G3SA TeSys Giga switching module kit 500 A

Schneider Electric LA9G3SA TeSys Giga Switching Module Kit 3P 500 A for LC1G400-500 Contactor Accessory

Brand: Schneider Electric
Reference No: LA9G3SA
Catalog No: LA9G3SA
Tariff Code (HS): 853690
Rated Current: 500 A
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$649.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LA9G3SA is a TeSys Giga switching module kit that replaces the main contacts of a 3-pole LC1G400-500 contactor, rated 500 A AC-3 (700 A AC-1) at up to 440 V. The plug-and-play design lets the contact set be swapped without replacing the whole contactor, extending its service life.

Technical Specifications

SKU LA9G3SA
GTIN 3606481916754
Brand Schneider Electric
Range TeSys Giga
Device short name LA9G
Product type Switch module
Poles 3P
Product compatibility LC1G400-500
Rated current Ie, AC-3, <= 440 V, 40 °C 500 A
Rated current Ie, AC-1, <= 440 V, 40 °C 700 A
Connections Bolted connection
Quantity per pack Set of 3
Pollution degree 3
Operating altitude 3000 m without derating
Ambient temperature, operation -25 to 60 °C
Country of origin China

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4

Selection Notes

The LA9G3SA matches the 500 A AC-3 rating of the LC1G400-500 frame, the top of the LA9G switching-module family. Smaller frames use the LA9G3QA (225 A AC-3) or LA9G3RA (330 A AC-3) modules instead. Replacing only the switching module after heavy-duty switching service is cheaper than replacing the full contactor body and coil.

Technical Details

Short Description
TeSys Giga switching module kit, 3P, 500 A AC-3, for LC1G400-500 contactors.
Rated Current (Ampere)
500 A
Mounting Type
Plug-in, replaces contactor main contacts
Catalog No
LA9G3SA
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LA9G3SA
Tariff Code
853690
