Part number
LA9G3760
Model no
LA9G
$367.93 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Giga

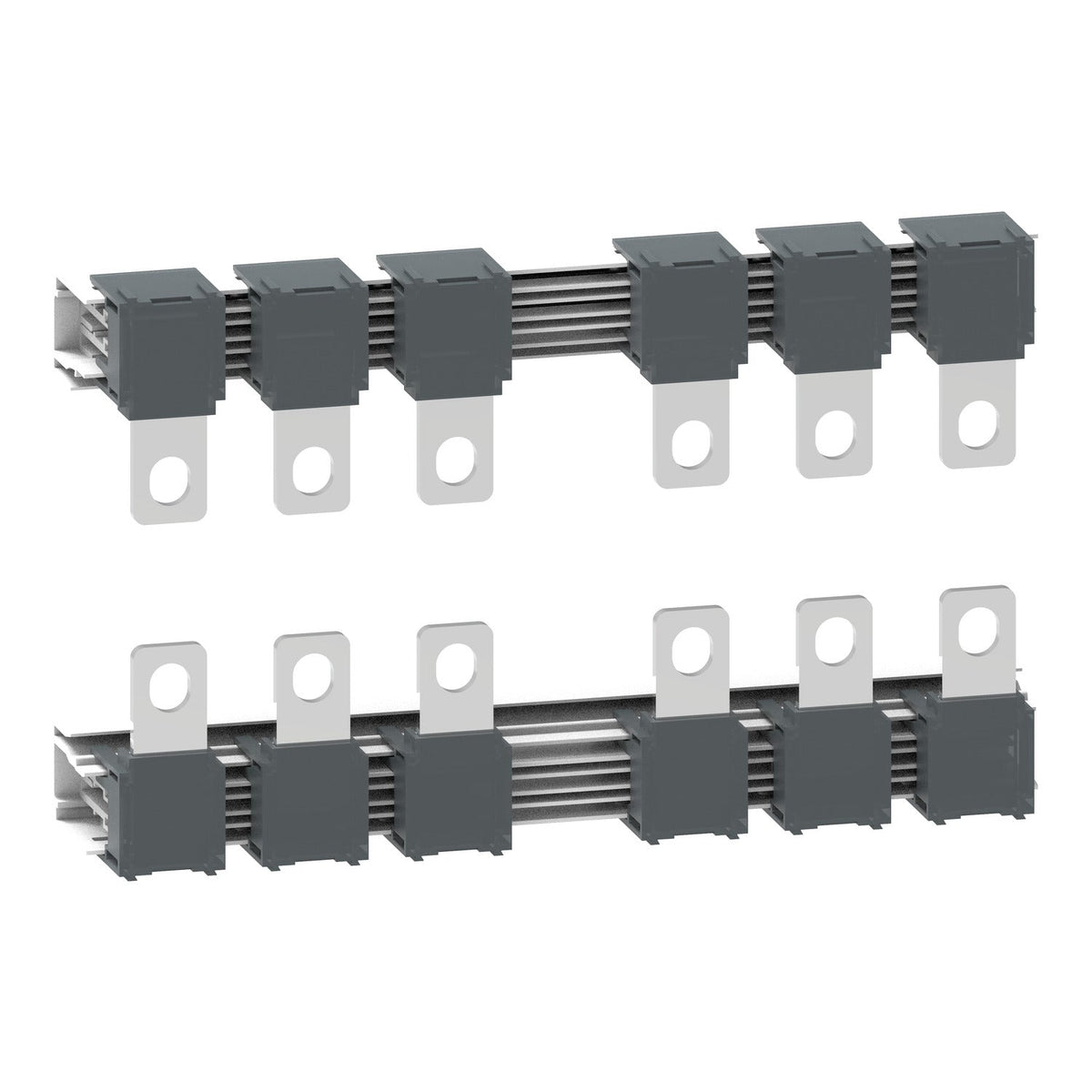

Schneider Electric LA9G3760 TeSys Giga Reverser Connection Bar 3P 225 A for LC1G115-225 Contactor Accessory

TeSys Giga 3P reverser connection bar, 225 A, for LC1G115-225 contactors.

Rated current
225 A
Poles
3P
EAN
3606481916686
Description

About the LA9G

The Schneider Electric LA9G3760 is a TeSys Giga reverser connection bar for 3-pole LC1G115-225 contactors, rated up to 225 A. These terminal extensions attach directly to the contactor's standard terminals to build a reversing assembly without separate cabling.

Certifications & Standards

  • ABS
  • BV
  • CB
  • CCC
  • CCS
  • CUL
  • CE
  • DNV-GL
  • EAC
  • KC
  • Lloyds Register of Shipping
  • RCM
  • RINA
  • RMRoS
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4

Selection Notes

The LA9G3760 fits the LC1G115-225 frame; the larger LC1G265-500 frame takes the LA9G3761 reverser bar instead. Its marine approvals (ABS, BV, DNV-GL, RINA, Lloyds Register, RMRoS) make it suitable for shipboard reversing starters, not just land-based panels.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 7

Range TeSys
Range of Product TeSys Giga
Device short name LA9G
Product or Component Type Set of connections
Accessory / separate part category Connection accessory
Electrical circuit type Reversing
Quantity per Set Set of 1

Complementary 7

Poles description 3P
Product Compatibility LC1G115...225, LC1G205...245
Range compatibility TeSys Giga
Height 1.8 in (45 mm)
Width 2.4 in (62.1 mm)
Depth 9.2 in (232.6 mm)
Net Weight 2.2 lb(US) (1.0 kg)

Environment 3

Standards EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
Product certifications ABS, BV, CB, CCC, CCS, CUL, CE, DNV-GL, EAC, KC, LROS (Lloyds register of shipping), RCM, RINA, RMRoS
Operating altitude 9842.52 ft (3000 m) without derating, 5000 m with derating factor
Show all 31 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LA9G3760
Type designation LA9G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481916686

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 1.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LA9G3760

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4
Quick answers

Questions about the LA9G

What is the rated current of LA9G?

The rated current of LA9G is 225 A.

What is the HS code of LA9G for customs?

The tariff (HS) code on file for LA9G is 853690.

What is the EAN of LA9G?

The EAN (GTIN) of LA9G is 3606481916686.

Where does LA9G ship from, and how fast?

LA9G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
