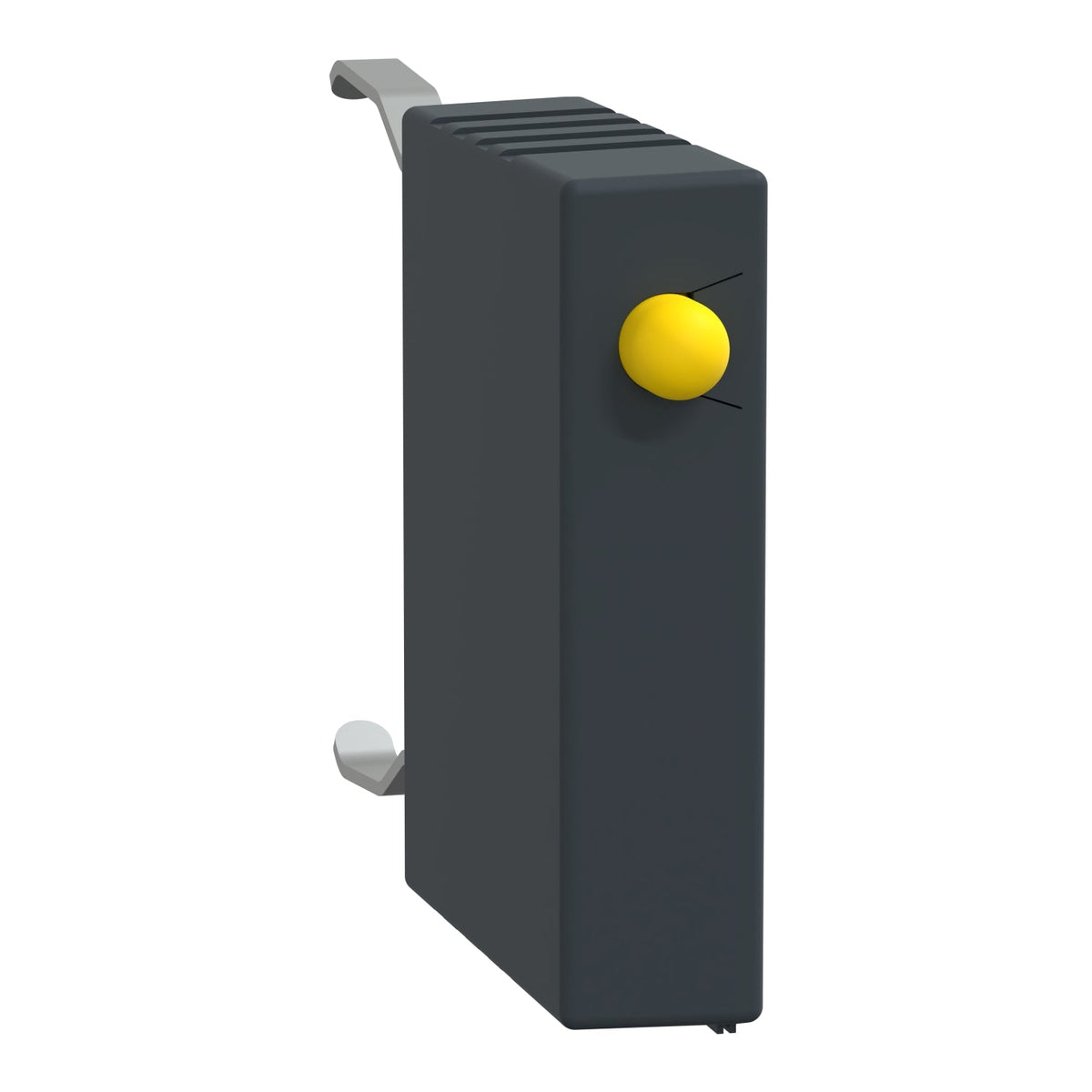

The Schneider Electric LA4KE1B is a TeSys K varistor suppressor module for 12-24 V AC/DC control circuits, clip-mounted on the front of LC1K, LP1K, LP4K, CA2K, and CA3K contactors. It limits the coil-switching transient voltage to 2 Uc maximum and includes a power-on LED indicator; sold in sets of 5.
The LA4KE1B covers both 12 V and 24 V AC/DC coils on a single part, unlike the voltage-split LA4D suppressors on the TeSys Deca range. The built-in LED gives a visual coil-energised indication without extra wiring, useful when troubleshooting small TeSys K and CAxK control relays mounted behind a panel door.
| Range | TeSys |
|---|---|
| Device short name | LA4K |
| Product or Component Type | Suppressor module |
| Product Compatibility | LC1K, LP1K, LP4K, CA2K, CA3K |
| Mounting Location | Front side |
|---|---|
| Mounting Mode | Clip-on |
| Suppressor technology | Varistor (peak limiting) |
| [Uc] control circuit voltage | 12...24 V DC, 12...24 V AC |
| Maximum peak voltage | 2 Uc |
| Local signalling | LED |
| Quantity per Set | Set of 5 |
| Height | 1.02 in (26 mm) |
| Width | 0.2 in (6 mm) |
| Depth | 0.9 in (22 mm) |
| Net Weight | 0.02 lb(US) (0.01 kg) |
| Standards | UL 60947-5-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1 |
|---|---|
| Product Certifications | UL, CSA, CE, UKCA |
| IP degree of protection | IP2XIEC 60529 |
| Protective treatment | TCIEC 60068, TCDIN 50016 |
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| Ambient Air Temperature for Storage | -58…176 °F (-50…80 °C) |
| Part number | LA4KE1B |
|---|---|
| Type designation | LA4K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110230215 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.01 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of LA4K is 12–24 V AC.
The tariff (HS) code on file for LA4K is 853690.
The EAN (GTIN) of LA4K is 3389110230215.
LA4K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
