Part number
LA4DA2E
Model no
LA4D
$14.67 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

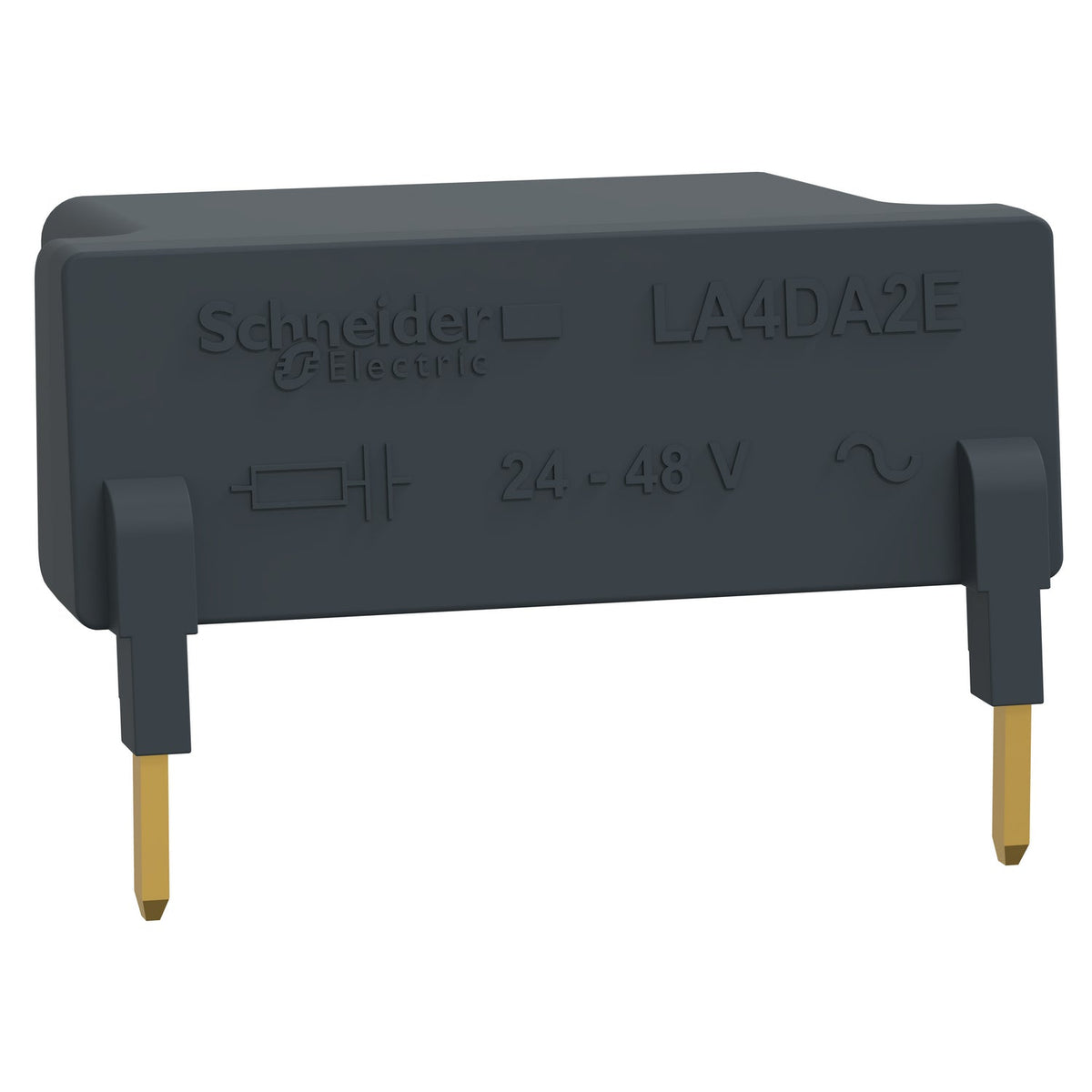

Schneider Electric LA4DA2E TeSys Deca RC Suppressor Module 24-48 V AC for LC1D80-D150 Contactor Accessory

TeSys Deca RC suppressor module, 24-48 V AC coil, for LC1D80-D150 (3P) / LC1D40-D115 (4P) contactors.

Rated operational voltage
24–48 V AC
Poles
3P
EAN
3389110233049
Description

About the LA4D

The Schneider Electric LA4DA2E is a TeSys Deca RC suppressor module for 24-48 V AC control circuits, fitted on top of LC1D80-D150 3-pole and LC1D40-D115 4-pole contactors. It limits the coil-switching transient voltage to 3 Uc maximum, protecting nearby electronics from the switching spike.

Certifications & Standards

  • UL
  • CSA
  • IEC 60947-5-1
  • EN 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • GB/T 14048.5

Selection Notes

Choose the LA4DA2E for 24-48 V AC coil circuits; for 110-240 V AC coils on the same LC1D80-D150/LC1D40-D115 contactor range, use the LA4DA2U instead. The RC design is suited to AC coils where suppression without added turn-off delay matters.

Specification

Full specification

29 values · Last verified 30 Oct 2026

Main 4

Range TeSys
Device short name LA4D
Product or Component Type Suppressor module
Product compatibility 3P LC1D80...D150, 4P LC1D80004...D115004, 4P LC1D40008...D80008

Complementary 6

Mounting Location Top
Mounting Mode By screws
Suppressor technology RC circuit
[Uc] control circuit voltage 24...48 V AC 50/60 Hz
Maximum peak voltage 3 Uc
Net Weight 0.040 lb(US) (0.018 kg)

Environment 5

Standards IEC 60947-5-1, EN 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5
Product Certifications UL, CSA
IP degree of protection IP2XIEC 60529
Ambient Air Temperature for Operation -13…131 °F (-25…55 °C)
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 29 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LA4DA2E
Type designation LA4D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110233049

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.018 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LA4DA2E

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-5-1
  • EN 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • GB/T 14048.5
Quick answers

Questions about the LA4D

Which supply voltage is LA4D rated for?

The rated operational voltage of LA4D is 24–48 V AC.

What is the HS code of LA4D for customs?

The tariff (HS) code on file for LA4D is 853690.

What is the EAN of LA4D?

The EAN (GTIN) of LA4D is 3389110233049.

Where does LA4D ship from, and how fast?

LA4D ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
