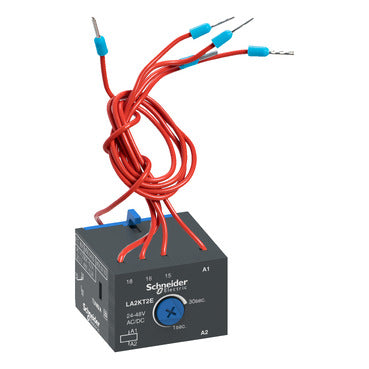

The Schneider Electric LA2KT2E is a TeSys K electronic time delay auxiliary contact block that fits contactors and control relays in the LC1K, LP1K and CA.K ranges with 24-48 V AC/DC coils. It adds one 1 C/O contact rated up to 2 A at 240 V AC, with an on-delay setting range of 1-30 seconds.
The on-delay setting range of 1-30 s makes this block suited to sequencing a second contactor after a first one has closed, such as a star-delta changeover or a staggered motor start. It only fits contactors wound for 24-48 V AC/DC coils (codes B7-E7, BD-ED); for contactors on 110-240 V AC/DC coils, the LA2KT2U variant is the matching part.
| Range | TeSys |
|---|---|
| Product name | TeSys K |
| Product or Component Type | Time delay auxiliary contact block |
| Device short name | LA1 |
| Range compatibility | TeSys K LC1K, TeSys K CA2K, TeSys K CA3K, TeSys K CA4K |
| Mounting Location | Front |
| Pole contact composition | 1 C/O |
| Contacts operation | Time delay |
| Timer type | On delay |
| Time delay range | 1...30 s |
| [Ue] rated operational voltage | 24...48 V AC/DC control circuit, 240 V AC signalling circuit |
| Rated operational voltage limits | 0.85...1.1 Uc |
| [Ith] conventional free air thermal current | 2 A for signalling circuit |
| Standards | EN/IEC 60947-5-1 |
| Product Certifications | CE, UKCA |
| Insulation resistance | > 10 MOhm |
|---|---|
| Connections - terminals | slip-on terminals |
| Reset time | 1.5 s during time delay, 0.5 s after time delay |
| Height | 1.06 in (27 mm) |
| Width | 1.5 in (38 mm) |
| Depth | 1.5 in (38 mm) |
| Net Weight | 0.09 lb(US) (0.04 kg) |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC IEC 60068 |
| Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
| Part number | LA2KT2E |
|---|---|
| Type designation | LA1 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110230048 |
| Warranty (in months) | 18 |
|---|
| Country of origin | TN |
|---|---|
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LA1 is 2 A.
The rated operational voltage of LA1 is 24–48 V AC.
The tariff (HS) code on file for LA1 is 85365080.
The EAN (GTIN) of LA1 is 3389110230048.
LA1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
