Schneider Electric GZ1E16 Easy TeSys Power 3P 9-14 A ≥100 kA Motor Protection Circuit Breaker (MPCB)

% $-31.90

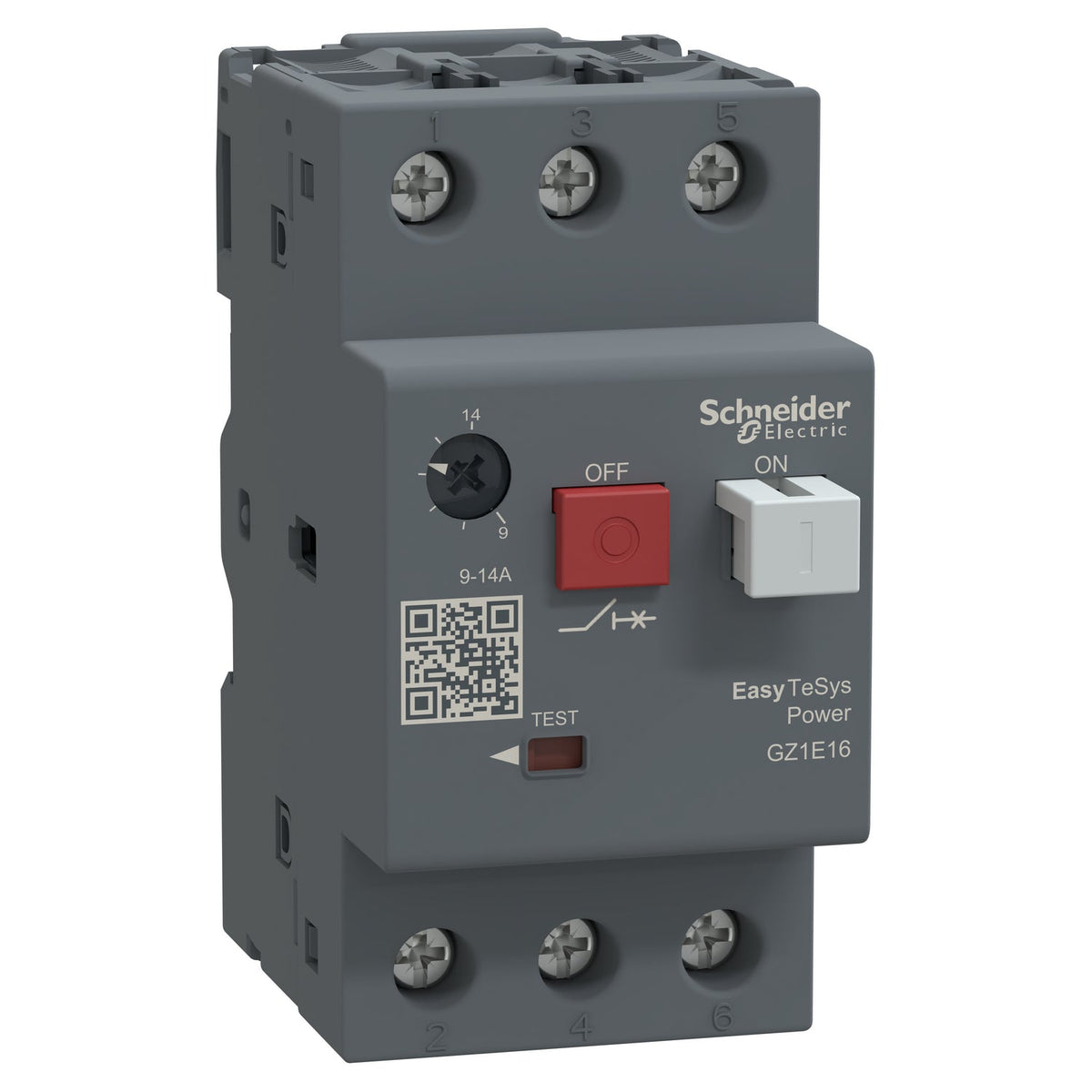

Schneider Electric GZ1E16 Easy TeSys Power Motor Protection Circuit Breaker - 9-14 A ≥100 kA
Schneider Electric GZ1E16 Easy TeSys Power Motor Protection Circuit Breaker - 9-14 A ≥100 kA

Schneider Electric GZ1E16 Easy TeSys Power 3P 9-14 A ≥100 kA Motor Protection Circuit Breaker (MPCB)

Brand: Schneider Electric
Reference No: GZ1E16
Catalog No: GZ1E16
Series: Easy TeSys Power
Tariff Code (HS): 853620
Rated Current: 14 A
Power: 5.5 kW
Rated Voltage: 690 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.90

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GZ1E16 is a 3-pole Easy TeSys Power motor circuit breaker with an adjustable thermal-magnetic trip set at 9-14 A, giving a breaking capacity (Icu) of ≥100 kA at 400/415 V. It is DIN-rail mounted, operated by a push-button, and conforms to IEC 60947-2 and IEC 60947-4-1 for direct motor protection.

Technical Specifications

Reference GZ1E16
Brand Schneider Electric
Range Easy TeSys Power
Device short name GZ1E
Device application Motor
Trip unit technology Thermal-magnetic
Poles 3P
Utilisation category AC-3 (IEC 60947-2)
Thermal protection adjustment range 9-14 A
Magnetic tripping current 170 A
Motor power at 400 V 5.5 kW
Breaking capacity (Icu) ≥100 kA at 230-500 V
Ics rated service breaking capacity (400/415 V) 50%
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Ui] rated insulation voltage 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
Power dissipation 2.5 W per pole
Mounting DIN rail, by clips or screws
Control type Push-button
Connections - terminals Screw clamp, 1-6 mm² solid / 1-4 mm² flexible with cable end
Dimensions (H x W x D) 89 x 44.5 x 78 mm
Net weight 0.26 kg
IP degree of protection IP20
Ambient air temperature (operation) -20 to 60°C
Operating altitude 2000 m

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-2

Selection Notes

Set the GZ1E16's thermal dial to the motor's nameplate full-load current within its 9-14 A range so the breaker trips on genuine overload rather than normal starting current. For a lower current band, the GZ1E14 covers 6-10 A; for a higher one, the GZ1E20 covers 13-18 A. Where a fixed, non-adjustable trip is preferred instead of the thermal dial, the magnetic-only GZ1LE series in the same frame and footprint is the alternative.

Technical Details

Short Description
Easy TeSys Power 3P motor circuit breaker, 9-14 A thermal-magnetic trip, Icu ≥100 kA at 400/415 V, IP20.
Rated Current (Ampere)
14 A
Rated Voltage (VAC)
690 V
Mounting Type
DIN rail
Protection Type
IP20
Catalog No
GZ1E16
Power (kW)
5.5 kW
Delivery Date (Days)
30 days
Model Number
GZ1E
Tariff Code
853620
