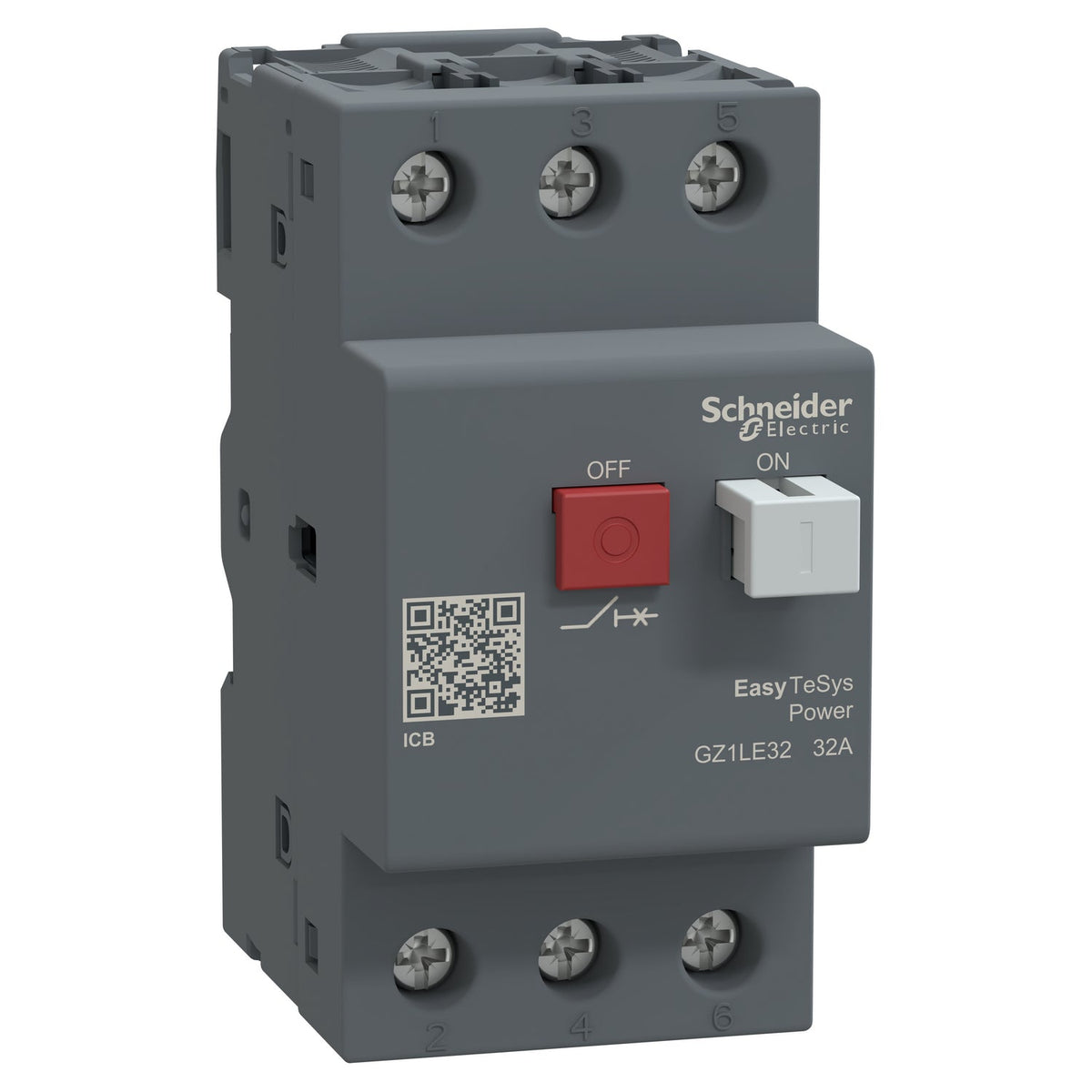

Schneider Electric GZ1LE32 Easy TeSys Power Motor Circuit Breaker 3P 32 A 690 V MPCB

The Schneider Electric GZ1LE32 is an Easy TeSys Power magnetic motor circuit breaker rated 32 A with push-button control, protecting 3-phase motors up to 15 kW at 400 V AC. It delivers a 10 kA breaking capacity (Icu) at 400/415 V and trips magnetically at 416 A, conforming to IEC 60947-2 and IEC 60947-4-1. Rated operational voltage is 690 V AC, and it is suitable for isolation per IEC 60947-1.

Technical Specifications

Certifications & Standards

• CB Scheme
• CCC
• CE
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-2
• EN/IEC 60947-4-1
• GB/T 14048.1
• GB/T 14048.2
• GB/T 14048.4

Selection Notes

The 32 A setting covers motors up to 15 kW at 400 V, the top of the GZ1LE range above the 25 A GZ1LE22. All four GZ1LE ratings share the same 89 x 44.5 x 78 mm frame and 0.25 kg weight, so a change in current rating does not change the panel footprint. Protection is magnetic only, so pair it with a separate thermal overload relay for full motor protection.
