TeSys GV6

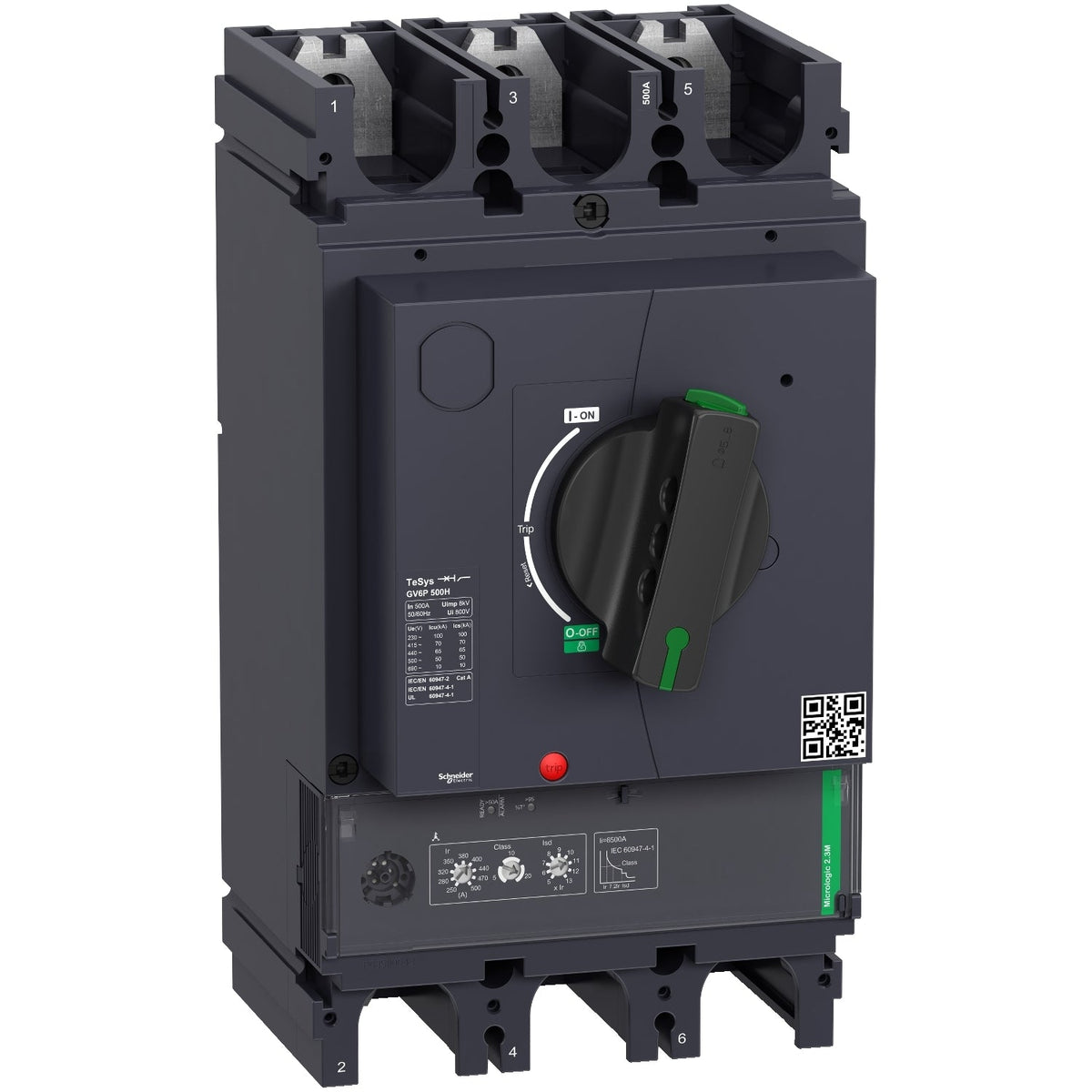

Schneider Electric GV6P500H TeSys GV6 3P 500 A 70 kA Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)

TeSys GV6 3P motor circuit breaker, 500 A, Icu 70 kA at 400/415 V, adjustable thermal-magnetic trip, rotary handle control.

Rated current
500 A
Rated operational voltage
690 V AC
Motor power
200–250 kW
Description

About the GV6P

The Schneider Electric GV6P500H is a 3-pole TeSys GV6 motor circuit breaker rated 500 A, sized to protect 200-250 kW motors at 400/415 V. It pairs an adjustable thermal-magnetic protection curve (Ir 250-500 A, class 5/10/20) with a 70 kA breaking capacity (Icu) at 400/415 V, plus phase-loss, phase-unbalance and short-time-delay protection, operated by a direct rotary handle.

Certifications & Standards

  • IECEE CB Scheme
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

Specify the GV6P500H wherever upstream prospective fault current can reach up to 70 kA at 400/415 V, for example on a main incomer close to a transformer, since the lower-rated 36 kA GV6P500F shares the same 500 A frame, mounting footprint and 250-500 A thermal dial but tops out at a lower withstand level. The 60 kA rated conditional short-circuit current at 440 V also makes the H variant the safer default when upstream coordination data is uncertain. As with its F-suffix sibling, three tripping classes (5/10/20) let the setting match motor starting duration for the same 200-250 kW motor range at 400/415 V.

Specification

Full specification

69 values · Last verified 30 Oct 2026

Main 7

Range TeSys
Range of product TeSys GV6
Device short name GV6P
Product name TeSys GV6, TeSys Giga
Product or component type Motor circuit breaker
Device application Motor protection
Trip unit technology Electronic

Complementary 29

Poles description 3P
Utilisation category Category A conforming to IEC 60947-2
Motor power kW 200…250 kW at 400/415 V AC 50/60 Hz, 250…315 kW at 500 V AC 50/60 Hz, 315…400 kW at 660/690 V AC 50/60 Hz
Breaking capacity 70 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Control type Direct rotary handle
[In] rated current 500 A at 65 °C
Magnetic tripping current 6500 A
Rated conditional short-circuit current 60 kA at 440 V
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current 500 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV
Power dissipation per pole 39.7 W
Mechanical durability 15000 cycles
Electrical durability 5000 cycles for AC-3 at 415 V opening, 5000 cycles for AC-3 at 415 V closing
maximum operating rate 25 cyc/h
Rated duty Continuous
Connection pitch 45 mm without spreaders
Connections - terminals Bars, Lugs
Tightening torque 50 N.m M10 screw type
Mechanical robustness Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6, Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Height 255 mm
Width 140 mm
Depth 179 mm
Net weight 6.7 kg
Colour Anthracite (RAL 7016)
Suitability for isolation Yes conforming to EN/IEC 60947-2

Environment 9

Standards EN/IEC 60947-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications IECEE CB Scheme, EAC (pending)
Climatic withstand conforming to IACS E10
IK degree of protection IK07 conforming to IEC 62262
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for storage -50…85 °C
Fire resistance 960 °C conforming to IEC 60695-2-11
Operating altitude 5000 m
Ambient air temperature for operation -25…70 °C
