Part number
GV4P50N
Model no
GV4P
$576.08 On request Dispatch — · From TürkiyeGet a Quote
TeSys GV4

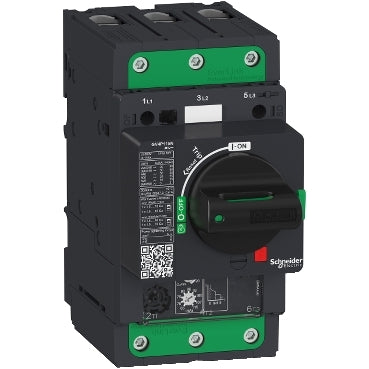

Schneider Electric GV4P50N TeSys GV4 3P 50 A 50 kA Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)

TeSys GV4 (GV4P) motor circuit breaker, 3P, Ir 20-50 A thermal-magnetic, 690 V AC, Icu 50 kA.

Rated current
50 A
Rated operational voltage
690 V AC
Motor power
11–22 kW
Poles
3P
EAN
3606481310361
Description

About the GV4P

The Schneider Electric GV4P50N is a TeSys GV4 motor circuit breaker rated 50 A at 690 V AC, combining adjustable thermal protection (Ir 20-50 A) with fixed short-time-delay, phase-unbalance and ground-fault protection for 3-phase motors up to 11-22 kW at 400 V. Breaking capacity reaches 50 kA at 400 V, and it is operated by a rotary handle via EverLink BTR screw terminals.

Certifications & Standards

  • IEC
  • UL
  • CSA
  • CCC
  • EAC
  • ATEX
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

Pick the 50 A frame for motors up to 11-22 kW at 400 V; unlike the magnetic-only GV4L/GV4LE breakers, the GV4P's adjustable thermal dial (Ir 20-50 A) and built-in short-time-delay, phase-unbalance and ground-fault protection complete motor protection without a separate overload relay. This N-suffix variant carries the full 50 kA breaking capacity at 400 V, versus 25 kA on the identically rated B-suffix variant in the same frame.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 7

Range TeSys Deca
Range of Product TeSys GV4
Device short name GV4P
Product name TeSys GV4
Product or Component Type Motor circuit breaker
Device Application Motor protection
Trip unit technology Electronic, Thermal-magnetic

Complementary 27

Poles description 3P
Utilisation category Category A IEC 60947-2, AC-3 IEC 60947-4-1
Operating position Any position
Motor power kW 11 kW 400...415 V AC 50/60 Hz, 15 kW 500 V AC 50/60 Hz, 18.5 kW 660...690 V AC 50/60 Hz, 15 kW 400...415 V AC 50/60 Hz, 18.5 kW 400...415 V AC 50/60 Hz, 22 kW 400...415 V AC 50/60 Hz, 18.5 kW 500 V AC 50/60 Hz, 22 kW 500 V AC 50/60 Hz, 30 kW 500 V AC 50/60 Hz, 22 kW 660...690 V AC 50/60 Hz, 30 kW 660...690 V AC 50/60 Hz, 37 kW 660...690 V AC 50/60 Hz, 45 kW 660...690 V AC 50/60 Hz
Breaking capacity 100 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2, 50 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2, 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2, 65 kA 208Y/120 V AC 50/60 Hz UL 60947, 65 kA 240 V AC 50/60 Hz UL 60947, 35 kA 480Y/277 V AC 50/60 Hz UL 60947, 8 kA Icu 660...690 V AC 50/60 Hz IEC 60947-2, 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 18 kA 600Y/347 V AC 50/60 Hz UL 60947
Control Type Rotary handle
Line Rated Current 50 A
Magnetic tripping current 850 A
[Ue] rated operational voltage 690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage 800 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current 115 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV IEC 60947-2
Power dissipation per pole 4.6 W
Mechanical durability 40000 cycles
Electrical durability 5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
maximum operating rate 25 cyc/h
Rated duty Continuous IEC 60947-4-1
Connections - terminals EverLink BTR screw connectors (top): 1 cable(s) 0.002…0.1 in² (1.5…70 mm²) - solid, EverLink BTR screw connectors (top): 1 cable(s) 0.002…0.08 in² (1.5…50 mm²) - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 0.004…0.1 in² (2.5…95 mm²) - solid, EverLink BTR screw connectors (bottom): 1 cable(s) 0.004…0.1 in² (2.5…70 mm²) - flexible
Tightening torque 79.7 lbf.in (9 N.m) 0.02…0.1 in² (16…95 mm²), 44.3 lbf.in (5 N.m) 0.002…0.02 in² (1.5…10 mm²)
Mechanical robustness Vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, Shocks 15 gn 11 ms IEC 60068-2-27
Phase failure sensitivity Yes IEC 60947-4-1
Height 6.1 in (155 mm)
Width 3.2 in (81 mm)
Depth 6.5 in (165 mm)
Net Weight 3.5 lb(US) (1.6 kg)
color Gray RAL 7016)
Suitability for isolation Yes IEC 60947-1

Environment 10

Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Product Certifications IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
Climatic withstand IACS E10
IK degree of protection IK07 IEC 62262
Pollution degree 3
IP degree of protection IP40 IEC 60529
Ambient Air Temperature for Storage -58…185 °F (-50…85 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-11
Operating altitude 5000 m
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Show all 58 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number GV4P50N
Type designation GV4P
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481310361

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin PL
Shipping weight 1.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV4P50N

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CCC
  • EAC
  • CSA C22.2 No 60947-4-1
  • UL 60947-4-1
  • EN/IEC 60947-4-1
  • EN/IEC 60947-2
Quick answers

Questions about the GV4P

What is the rated current of GV4P?

The rated current of GV4P is 50 A.

Which supply voltage is GV4P rated for?

The rated operational voltage of GV4P is 690 V AC.

What motor power is GV4P rated for?

The rated motor power of GV4P is 11–22 kW.

What is the HS code of GV4P for customs?

The tariff (HS) code on file for GV4P is 853620.

What is the EAN of GV4P?

The EAN (GTIN) of GV4P is 3606481310361.

Where does GV4P ship from, and how fast?

GV4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
