Schneider Electric GV4P12N TeSys GV4 3P 12.5 A 50 kA Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)

% $-550.82

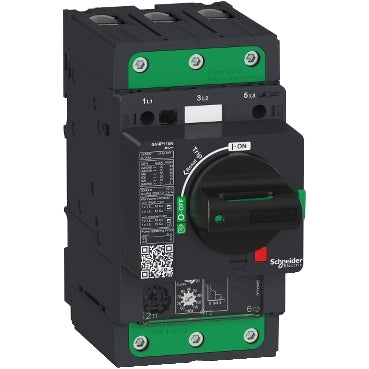

Schneider Electric GV4P12N TeSys GV4 motor circuit breaker - 12.5 A 50 kA
Schneider Electric GV4P12N TeSys GV4 motor circuit breaker - 12.5 A 50 kA

Schneider Electric GV4P12N TeSys GV4 3P 12.5 A 50 kA Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)

Brand: Schneider Electric
Reference No: GV4P12N
Series: TeSys GV4
Tariff Code (HS): 853620
Rated Current: 12.5 A
Power: 3-5.5 kW
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$550.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GV4P12N is a TeSys GV4 three-pole motor circuit breaker rated 12.5 A, providing thermal-magnetic protection for 3-phase motors from 3-5.5 kW at 400 V with a breaking capacity Icu of 50 kA at 400/415 V. A rotary handle gives local start-stop control, and EverLink BTR screw terminals keep contact resistance stable over repeated torque cycles.

Technical Specifications

Reference GV4P12N
GTIN 3606481310347
Brand Schneider Electric
Range TeSys GV4
Device short name GV4P
Product type Motor circuit breaker
Device application Motor protection
Poles 3P
Trip unit technology Thermal-magnetic
[In] line rated current 12.5 A
Thermal setting range (Ir) 5-12.5 A
Tripping class 10 or 20 (selectable)
Magnetic tripping current (Im) 212 A (17 x In)
Short-time delay (Isd) 13 x Ir
Breaking capacity Icu (400...415 V AC) 50 kA
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Ui] rated insulation voltage 800 V AC
[Uimp] rated impulse withstand voltage 8 kV
Motor power (400...415 V AC) 3-5.5 kW
Utilisation category Category A (IEC 60947-2), AC-3 (IEC 60947-4-1)
Control type Rotary handle
Connections - terminals EverLink BTR screw terminals
IP degree of protection IP40
Ambient air temperature for operation -25...70 °C
Net weight 1.6 kg

Certifications & Standards

  • IEC 60947-2
  • IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No. 60947-4-1
  • CCC
  • EAC
  • ATEX
  • EU-RO MR

Selection Notes

The 12N is the smallest current frame in the GV4P range, sized for 3-5.5 kW motors at 400 V; pick the 25N variant once motor power exceeds this frame's 12.5 A thermal setting ceiling.

Applications

Use for direct-on-line motor protection in panels where thermal overload, short-circuit and phase-loss protection must sit in a single rotary-handle device ahead of a GV4P-compatible contactor.

Technical Details

Short Description
TeSys GV4 motor circuit breaker, 3P, 12.5 A, Icu 50 kA at 400 V, 3-5.5 kW
Rated Current (Ampere)
12.5 A
Rated Voltage (VAC)
690 V AC
Mounting Type
DIN rail / panel
Protection Type
IP40
Number of Poles
3P
Power (kW)
3-5.5 kW
Delivery Date (Days)
30 days
Model Number
TeSys GV4
Tariff Code
853620
