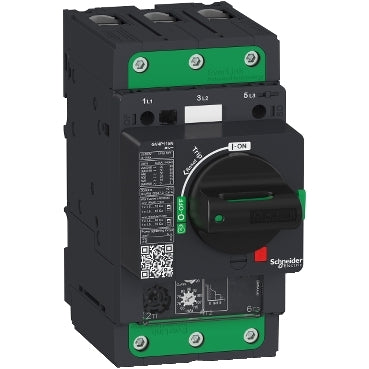

Schneider Electric GV4P115S TeSys GV4 3P 115 A 100 kA Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)

The Schneider Electric GV4P115S is a TeSys GV4 three-pole motor circuit breaker rated 115 A, providing thermal-magnetic protection for 3-phase motors from 37-55 kW at 400 V with a breaking capacity Icu of 100 kA at 400/415 V. A rotary handle gives local start-stop control, and EverLink BTR screw terminals keep contact resistance stable over repeated torque cycles.

Technical Specifications

Certifications & Standards

• IEC 60947-2
• IEC 60947-4-1
• UL 60947-4-1
• CSA C22.2 No. 60947-4-1
• CCC
• EAC
• ATEX
• EU-RO MR

Selection Notes

The 115S is the highest breaking-capacity variant in the 115 A frame, rated Icu 100 kA at 400/415 V, so it suits main incomers and high-fault-level switchboards; the 115B and 115N cover the same current and motor power range at lower cost where fault levels are lower.

Applications

Use for direct-on-line motor protection in panels where thermal overload, short-circuit and phase-loss protection must sit in a single rotary-handle device ahead of a GV4P-compatible contactor.
