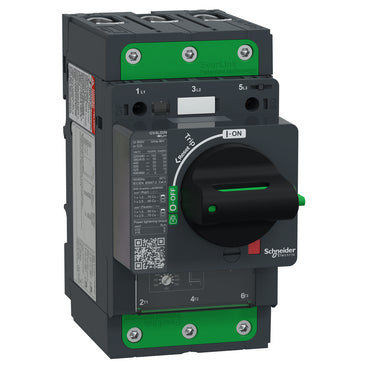

Schneider Electric GV4L50N TeSys GV4 motor circuit breaker - 3P 50A 50kA magnetic MPCB

Schneider Electric GV4L50N TeSys GV4 3P 50 A 50 kA Magnetic Motor Protection Circuit Breaker (MPCB)

Name: Schneider Electric GV4L50N TeSys GV4 3P 50 A 50 kA Magnetic Motor Protection Circuit Breaker (MPCB)
Brand: Schneider Electric
SKU: GV4L50N
Price: 439.95 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GV4L50N

Series: TeSys GV4

Tariff Code (HS): 853620

Rated Current: 50 A

Power: 11-22 kW

Rated Voltage: 690 V

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$439.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GV4L50N is a TeSys GV4 motor circuit breaker rated 50 A at 690 V AC, giving magnetic-only protection for 3-phase motors up to 11-22 kW at 400 V; it is paired with a separate class 10 or 20 thermal overload relay to complete motor protection. Its magnetic trip is adjustable from 300-700 A, breaking capacity reaches 50 kA at 400 V, and it is operated by a rotary handle via EverLink BTR screw terminals.

Technical Specifications

SKU	GV4L50N
Brand	Schneider Electric
Range	TeSys GV4
Device Short Name	GV4L
Component Type	Motor circuit breaker
Device Application	Motor protection
Trip Unit Technology	Magnetic
Poles	3P
Utilisation Category	Category A (IEC 60947-2), AC-3 (IEC 60947-4-1)
Line Rated Current (In)	50 A
Magnetic Trip Adjustment Range	300-700 A
Breaking Capacity (Icu) at 400/415 V	50 kA
Motor Power at 400 V	11-22 kW
Control Type	Rotary handle
Rated Operational Voltage (Ue)	690 V AC, 50/60 Hz
Rated Insulation Voltage (Ui)	800 V AC, 50/60 Hz
Connections	EverLink BTR screw terminals, 1.5-70 mm² (top), 2.5-95 mm² (bottom)
IP Degree	IP40
IK Degree	IK07
Net Weight	1.65 kg

Certifications & Standards

IEC
CCC
EAC
EN/IEC 60947-2
EN/IEC 60947-4-1

Selection Notes

Pick the 50 A frame for motors up to 11-22 kW at 400 V; because this breaker only trips magnetically, size the accompanying thermal overload relay (class 10 or 20) to the motor's actual full-load current rather than relying on the breaker alone. The 50 kA breaking capacity at 400 V is common across the whole GV4L/GV4LE range, so frame selection is driven purely by current rating.

Technical Details

Short Description

TeSys GV4 (GV4L) motor circuit breaker, 3P, 50 A magnetic, 690 V AC, Icu 50 kA.

Rated Current (Ampere)

50 A

Rated Voltage (VAC)

690 V

Protection Type

IP40

Number of Poles

Power (kW)

11-22 kW

Delivery Date (Days)

30 days

Model Number

GV4L50N

Tariff Code

853620
