Part number
GV4L115N
Model no
GV4L
$560.08 On request Dispatch — · From TürkiyeGet a Quote
TeSys GV4

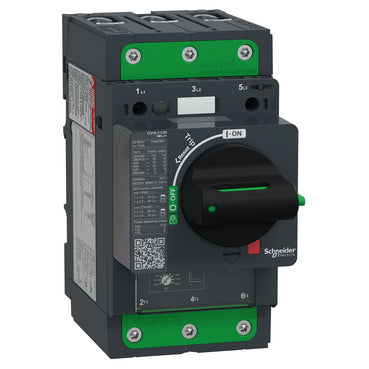

Schneider Electric GV4L115N TeSys GV4 3P 115 A 50 kA Magnetic Motor Protection Circuit Breaker (MPCB)

TeSys GV4 (GV4L) motor circuit breaker, 3P, 115 A magnetic, 690 V AC, Icu 50 kA.

Rated current
115 A
Rated operational voltage
690 V AC
Motor power
37–55 kW
Poles
3P
Description

About the GV4L

The Schneider Electric GV4L115N is a TeSys GV4 motor circuit breaker rated 115 A at 690 V AC, giving magnetic-only protection for 3-phase motors up to 37-55 kW at 400 V; it is paired with a separate class 10 or 20 thermal overload relay to complete motor protection. Its magnetic trip is adjustable from 690-1610 A, breaking capacity reaches 50 kA at 400 V, and it is operated by a rotary handle via EverLink BTR screw terminals.

Certifications & Standards

  • IEC
  • CCC
  • EAC
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

Pick the 115 A frame for motors up to 37-55 kW at 400 V; because this breaker only trips magnetically, size the accompanying thermal overload relay (class 10 or 20) to the motor's actual full-load current rather than relying on the breaker alone. The 50 kA breaking capacity at 400 V is common across the whole GV4L/GV4LE range, so frame selection is driven purely by current rating.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 7

Range TeSys Deca
Range of product TeSys GV4
Device short name GV4L
Product name TeSys GV4
Product or component type Motor circuit breaker
Device application Motor protection
Trip unit technology Magnetic, Electronic

Complementary 26

Poles description 3P
Utilisation category Category A conforming to IEC 60947-2, AC-3 conforming to IEC 60947-4-1
Operating position Any position
Motor power kW 37 kW at 400...415 V AC 50/60 Hz, 45 kW at 400...415 V AC 50/60 Hz, 55 kW at 400...415 V AC 50/60 Hz, 45 kW at 500 V AC 50/60 Hz, 55 kW at 500 V AC 50/60 Hz, 75 kW at 500 V AC 50/60 Hz, 75 kW at 660...690 V AC 50/60 Hz, 90 kW at 660...690 V AC 50/60 Hz, 110 kW at 660...690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Control type Rotary handle
[In] rated current 115 A
Magnetic tripping current 690…1610 A
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current 115 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Power dissipation per pole 6.1 W
Mechanical durability 40000 cycles
Electrical durability 10000 cycles for AC-3 at 440 V In/2, 5000 cycles for AC-3 at 440 V In
maximum operating rate 25 cyc/h
Rated duty Continuous conforming to IEC 60947-4-1
Connections - terminals EverLink BTR screw connectors (top): 1 cable(s) 1.5…70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5…50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…95 mm² - solid, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…70 mm² - flexible
Tightening torque 9 N.m for cable 16…95 mm², 5 N.m for cable 1.5…10 mm²
Mechanical robustness Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6, Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
Height 155 mm
Width 81 mm
Depth 165 mm
Net weight 1.65 kg
Colour Grey (RAL 7016)
Suitability for isolation Yes conforming to IEC 60947-1

Environment 10

Standards EN/IEC 60947-4-1, EN/IEC 60947-2
Product certifications IEC, CCC, EAC, EU-RO MR
Climatic withstand conforming to IACS E10
IK degree of protection IK07 conforming to IEC 62262
Pollution degree 3
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for storage -50…85 °C
Fire resistance 960 °C conforming to IEC 60695-2-11
Operating altitude 5000 m
Ambient air temperature for operation -25…70 °C
Show all 67 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number GV4L115N
Type designation GV4L
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.8 cm
Package 1 Width 10.4 cm
Package 1 Length 22.0 cm
Package 1 Weight 1.839 kg
Unit Type of Package 2 S03
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.61 kg
Shipping weight 1.65 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for GV4L115N

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CCC
  • EAC
  • EN/IEC 60947-4-1
  • EN/IEC 60947-2
Quick answers

Questions about the GV4L

What is the rated current of GV4L?

The rated current of GV4L is 115 A.

Which supply voltage is GV4L rated for?

The rated operational voltage of GV4L is 690 V AC.

What motor power is GV4L rated for?

The rated motor power of GV4L is 37–55 kW.

What is the HS code of GV4L for customs?

The tariff (HS) code on file for GV4L is 853620.

Where does GV4L ship from, and how fast?

GV4L ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
