Schneider Electric GV4L02N TeSys GV4 3P 2 A 50 kA Magnetic Motor Protection Circuit Breaker (MPCB)

% $-430.87

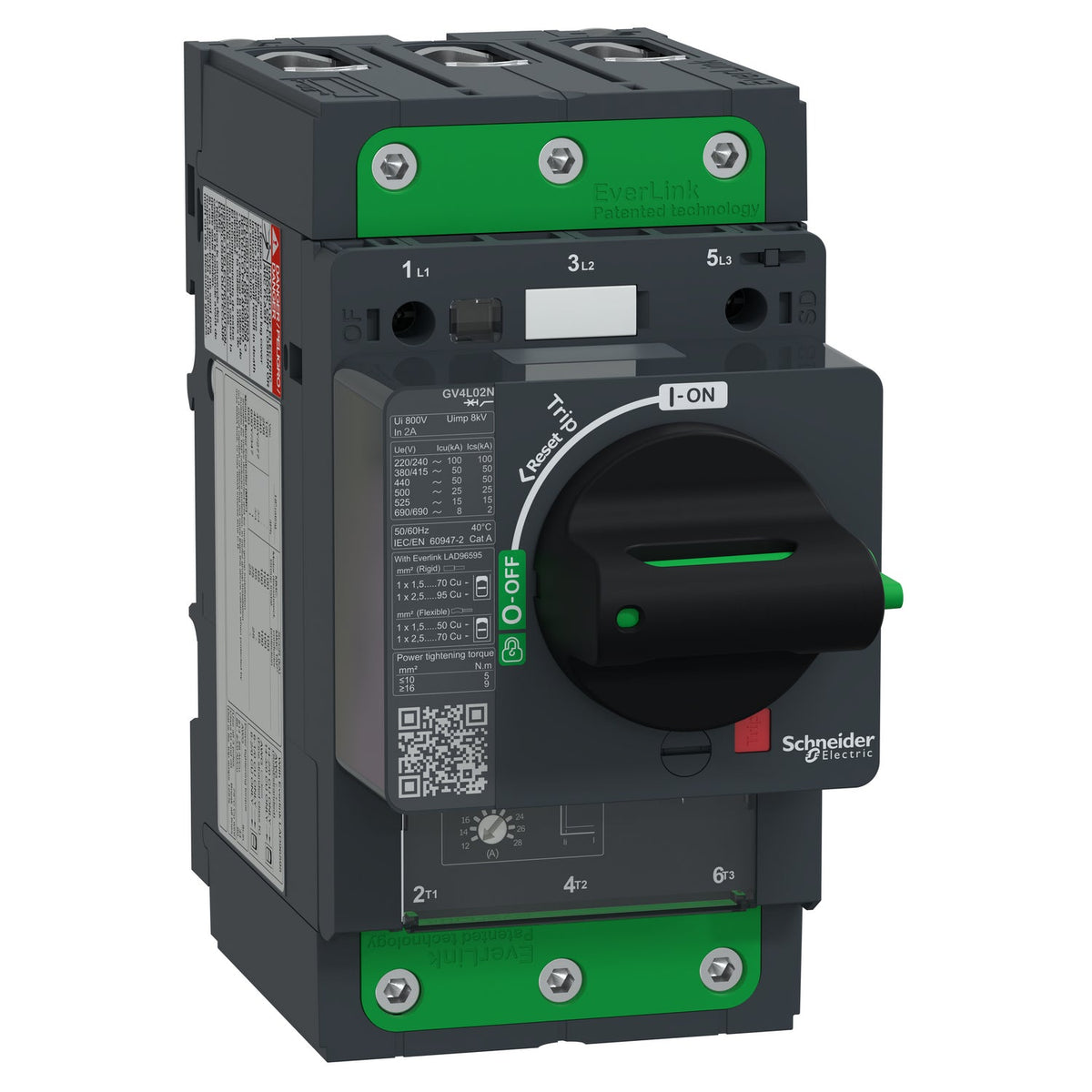

Schneider Electric GV4L02N GV4 motor circuit breaker - 2 A 50 kA
Schneider Electric GV4L02N GV4 motor circuit breaker - 2 A 50 kA

Schneider Electric GV4L02N TeSys GV4 3P 2 A 50 kA Magnetic Motor Protection Circuit Breaker (MPCB)

Brand: Schneider Electric
Reference No: GV4L02N
Catalog No: GV4L02N
Series: TeSys GV4
Tariff Code (HS): 853620
Rated Current: 2 A
Power: 0.25-0.75 kW
Rated Voltage: 690 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$430.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GV4L02N is a 3P TeSys GV4 motor circuit breaker rated 2 A, with a breaking capacity of 50 kA at 400/415 V for protecting three-phase motors from 0.25-0.75 kW at 400 V. It provides magnetic-only short-circuit protection, adjustable 6-14 In by dial. The breaker is operated by a rotary handle and terminates on screw connectors.

Technical Specifications

Reference GV4L02N
Brand Schneider Electric
Range TeSys GV4
Device Application Motor protection
Utilisation Category Category A (IEC 60947-2) / AC-3 (IEC 60947-4-1)
Poles 3P
Motor Power at 400-415 V AC 0.25 kW | 0.37 kW | 0.55 kW | 0.75 kW at 400-415 V AC
Breaking Capacity (Icu) 100 kA Icu at 220-240 V AC; 50 kA Icu at 380-415 V AC; 50 kA Icu at 440 V AC; 25 kA Icu at 500 V AC; 15 kA Icu at 525 V AC; 8 kA Icu at 660-690 V AC (IEC 60947-2)
Control Type Rotary handle
Rated Current (In) 2 A
Magnetic Tripping Current 12-28 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 800 V AC
Conventional Free Air Thermal Current (Ith) 115 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Power Dissipation per Pole 6.1 W
Connections EverLink BTR screw connectors: top 1.5-70 mm2 solid / 1.5-50 mm2 flexible; bottom 2.5-95 mm2 solid / 2.5-70 mm2 flexible
Tightening Torque 9 N.m (16-95 mm2) / 5 N.m (1.5-10 mm2)
Dimensions (H x W x D) 155 x 81 x 165 mm
Net Weight 1.65 kg
Colour Grey (RAL 7016)
IP Degree of Protection IP40
IK Degree of Protection IK07
Pollution Degree 3
Suitability for Isolation Yes (IEC 60947-1)
Ambient Air Temperature for Operation -25 to 70 C
Units per Package 3

Certifications & Standards

  • IEC
  • CCC
  • EAC
  • EU-RO MR
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1

Selection Notes

This GV4 breaker provides magnetic short-circuit protection only at 50 kA Icu; pair it with a Class 10 or Class 20 thermal overload relay to complete motor protection, or choose the thermal-magnetic GV4P range for an integrated trip in a single device. The 2 A rated current sets the frame for 0.25-0.75 kW motors at 400 V.

Technical Details

Short Description
GV4 motor circuit breaker, 3P 2 A, Icu 50 kA at 400 V
Rated Current (Ampere)
2 A
Rated Voltage (VAC)
690 V AC
Protection Type
IP40
Catalog No
GV4L02N
Power (kW)
0.25-0.75 kW
Delivery Date (Days)
30 days
Model Number
GV4L02N
Tariff Code
853620
