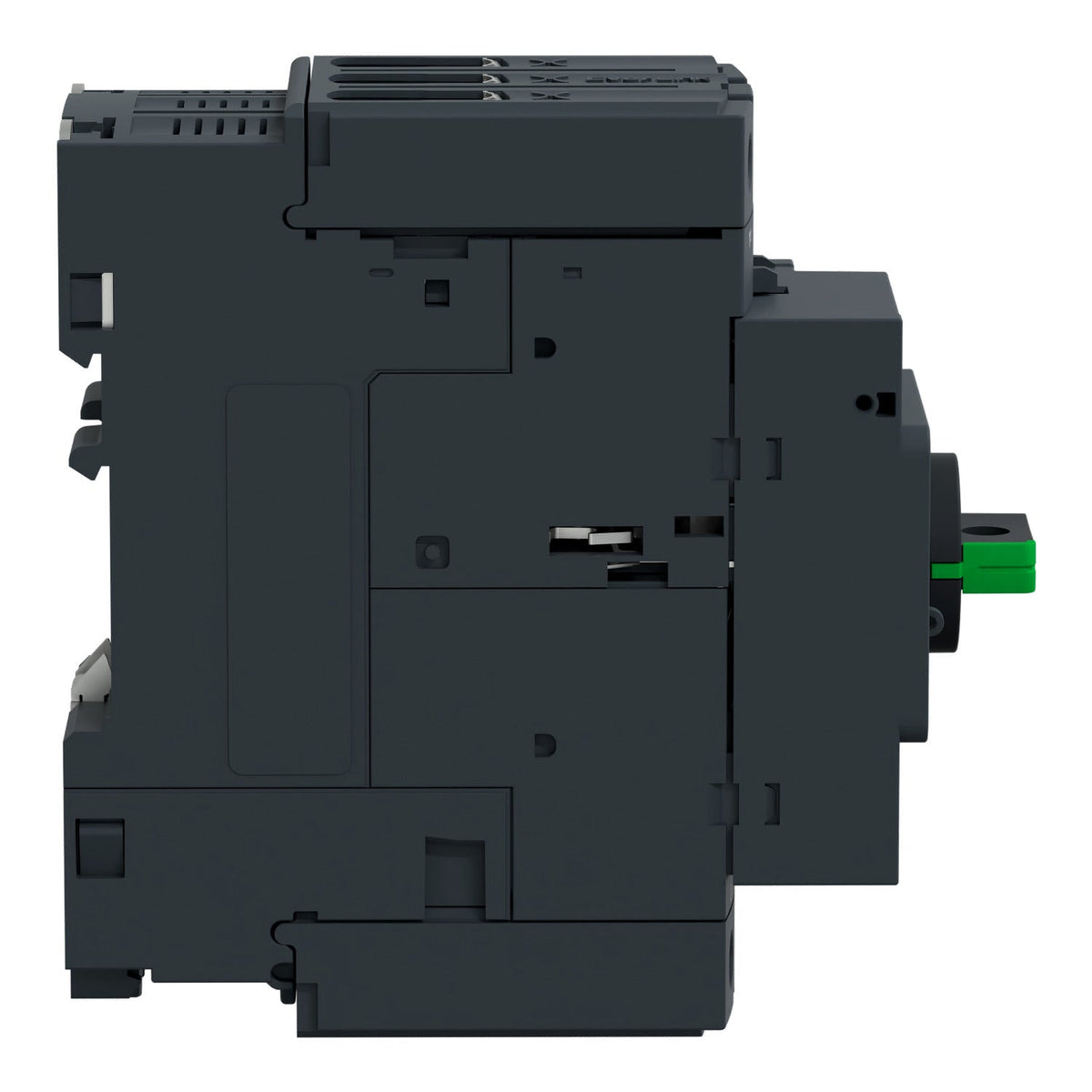

Schneider Electric GV3P50 TeSys Deca GV3 3P 37-50 A 50 kA EverLink Motor Protection Circuit Breaker (MPCB)

The Schneider Electric GV3P50 is a TeSys Deca GV3 motor circuit breaker with a 37-50 A adjustable thermal setting range, rated 50 A and 50 kA Icu at 400/415 V across 3 poles. It combines overload and short-circuit protection with manual isolation, operated by a rotary handle and wired through EverLink self-adjusting terminals.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• CCC
• EAC
• EN/IEC 60947-2
• EN/IEC 60947-4-1

Selection Notes

The GV3P50 covers the 37-50 A band in the GV3 frame — set the thermal dial to the motor's nameplate full-load current rather than the top of the scale, since the EverLink terminals (not a snap-in GV2 body) are what let this frame carry motors up to 65 A. Choose a neighbouring GV3P current band if the motor's full-load current falls outside this range rather than running the breaker at the edge of its adjustment. EverLink terminals self-adjust as the conductor settles under vibration, so re-torquing after commissioning is not required the way it is on a plain screw clamp terminal of this current size.
