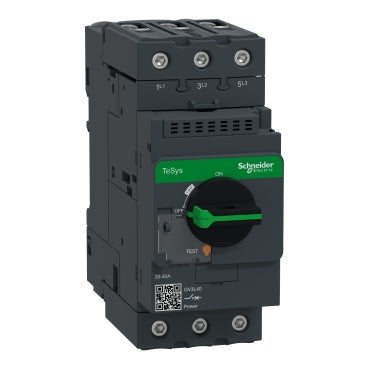

TeSys Deca GV3L manual motor circuit breaker, 40 A magnetic trip, 690 V AC, 50 kA Icu at 400/415 V, rotary handle.
The Schneider Electric GV3L40 is a TeSys Deca GV3 manual motor circuit breaker with a fixed magnetic trip unit set for a 40 A line current and a 560 A magnetic tripping point. Rated for 690 V AC with EverLink BTR connectors, it delivers a 50 kA breaking capacity at 400/415 V and protects motor branches up to 18.5 kW at 400/415 V without a built-in thermal overload function.
The L designation identifies this as a magnetic-only trip unit: the 560 A instantaneous point covers short-circuit and locked-rotor protection, but there is no thermal overload element, so pair it with a separate overload relay or a self-protected motor. Breaking capacity is voltage-dependent, from 50 kA at 400/415 V down to 6 kA at 690 V, so on 690 V feeders it should sit behind upstream fault-current limiting. At 40 A it covers motors up to 18.5 kW at 400/415 V; heavier loads call for a higher current variant in the same GV3L range, and the EverLink BTR connectors are rated for the larger cable sizes this frame requires.
Used as a motor branch disconnector and short-circuit protector ahead of a contactor in TeSys motor starter combinations for medium-power pumps, compressors and conveyor drives.
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV3 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV3L |
| Device Application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A IEC 60947-2, AC-3 IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 18.5 kW 400/415 V AC 50/60 Hz, 22 kW 500 V AC 50/60 Hz, 37 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz, 50 kA Icu 400/415 V AC 50/60 Hz, 50 kA Icu 440 V AC 50/60 Hz, 12 kA Icu 500 V AC 50/60 Hz, 6 kA Icu 690 V AC 50/60 Hz |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz, 100 % 400/415 V AC 50/60 Hz, 100 % 440 V AC 50/60 Hz, 50 % 500 V AC 50/60 Hz, 50 % 690 V AC 50/60 Hz |
| Control Type | Rotary handle |
| Line Rated Current | 40 A |
| Magnetic tripping current | 560 A |
| [Ith] conventional free air thermal current | 40 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles AC-3 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Tightening torque | 44.3 lbf.in (5 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped, Panel screwed with 3 x M4 screws) |
| Mounting position | Horizontal, Vertical |
| Width | 2.2 in (55 mm) |
| Height | 5.2 in (132 mm) |
| Depth | 5.4 in (136 mm) |
| Net Weight | 2.12 lb(US) (0.96 kg) |
| color | Dark grey |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-1:Clause 30.2, IEC/EN 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme, CE, UKCA, CCC, cULus, EAC, LROS (Lloyds register of shipping), BV, ABS, DNV-GL |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 15 Gn for 11 ms contactor open, Shocks 30 Gn for 11 ms contactor closed, Vibrations 4 Gn, 5...300 Hz |
| Operating altitude | 9842.52 ft (3000 m) |
| Part number | GV3L40 |
|---|---|
| Type designation | GV3L |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119405447 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.96 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
